Name: Stainless Thermoplastic Caster
Brand: Service Caster
SKU: SRVJ6337
Price: 629.99 USD
Availability: InStock

Cart

About This Product

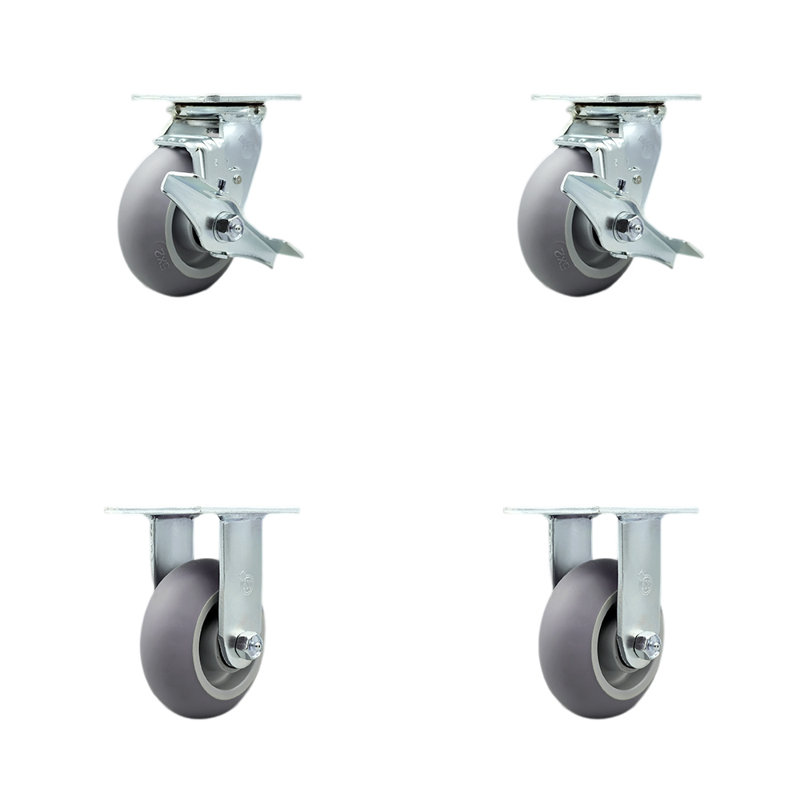

Listing is for a set of four (4) Service Caster Series #30 stainless steel casters, two (2) swivel casters with side lock brakes & bolt on swivel locks and two (2) rigid casters, with 5" diameter by 2" wide thermoplastic rubber donut tread on polyolefin core wheels capable of supporting a total weight of 1,400 lbs. (350 lbs./caster).

Features

These Service Caster Series #30 Thermoplastic Rubber Donut Tread on Polyolefin Core casters offer various wheel sizes and mounting heights: 4” wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8” wheel: 9-1/2” mounting height.
Weight Capacity: 4": 300 lbs Capacity/Caster, 5": 350 lbs Capacity/Caster, 6": 500 lbs. Capacity/Caster, and 8": 600 lbs Capacity/Caster
Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on.

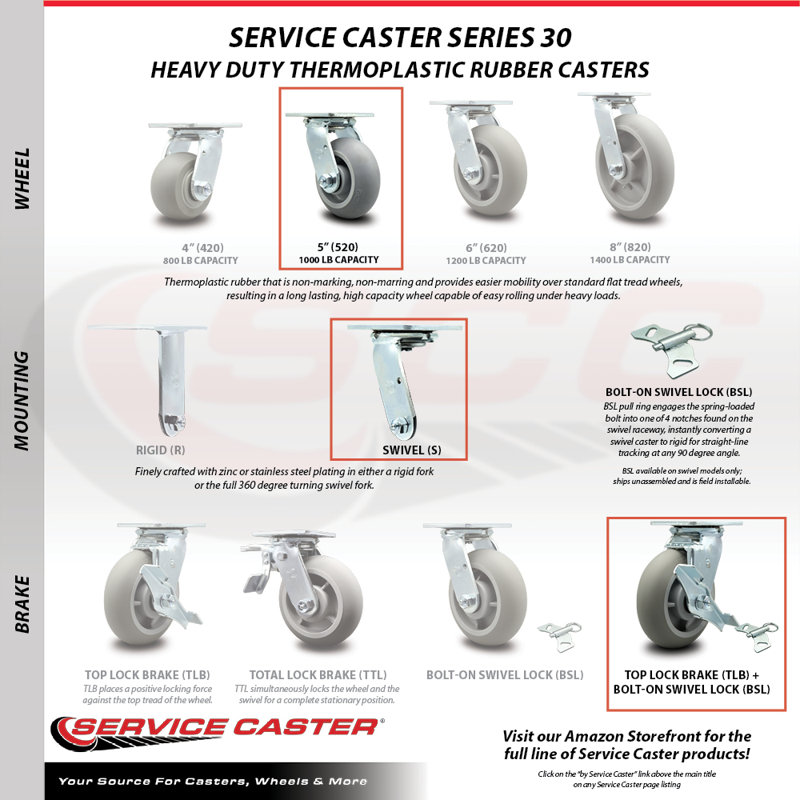

Brake options include a top lock brake (TLB) and a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.
