Name: Stainless Nylon Caster
Brand: Service Caster
SKU: SRVJ6064
Price: 716.99 USD
Availability: InStock

Cart

About This Product

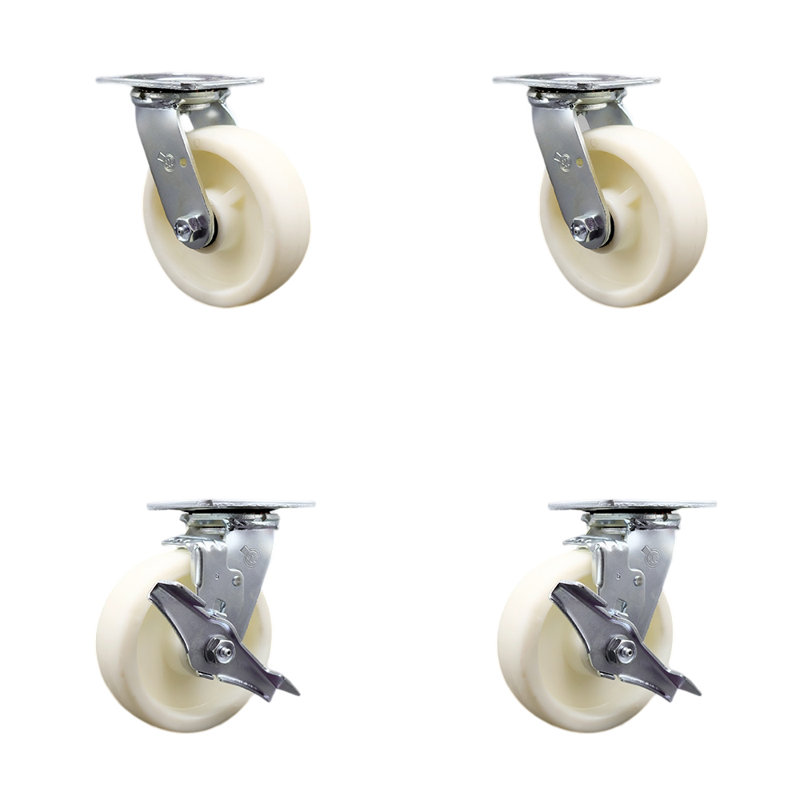

Listing is for a set of four (4) Service Caster Series #30 stainless steel casters, two (2) swivel casters with bolt on swivel locks and two (2) swivel casters with side lock brakes, with 6" diameter by 2" wide nylon wheel and maintenance free precision ball wheel bearings capable of supporting a total weight of 5,000 lbs. (1,250 lbs./caster).

Features

These Service Caster Series #30 Nylon casters offer various wheel sizes and mounting heights: 4” wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8” wheel: 9-1/2” mounting height.
Weight Capacity: 4": 800 lbs Capacity/Caster, 5": 900 lbs Capacity/Caster, 6": 1250 lbs. Capacity/Caster, and 8": 1250 lbs Capacity/Caster

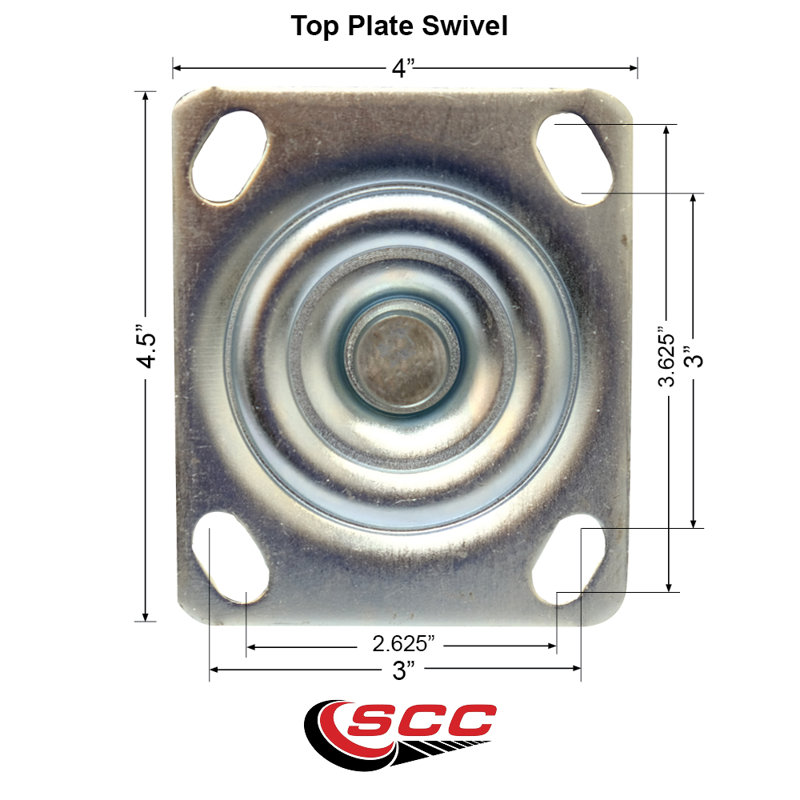

Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on.
Brake options include a top lock brake (TLB), or a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.
