Olefin Caster

Name: Olefin Caster
Brand: Service Caster
SKU: SRVJ6414
Price: 239.99 USD
Availability: InStock

ByService Caster

Earn $12.00 in rewards, with 5% back¹, plus more exclusive perks

Get $40 off your qualifying first order of $250+** with the Wayfair Credit Card! **

Apply Now

$239.99 was~~$382.08~~

37% Off

{BOLD_AS_LOW_AS}{BOLD_AFFIRM_REUSE_TITLE_SECTION_1}or 0% APR with Affirm

About This Product

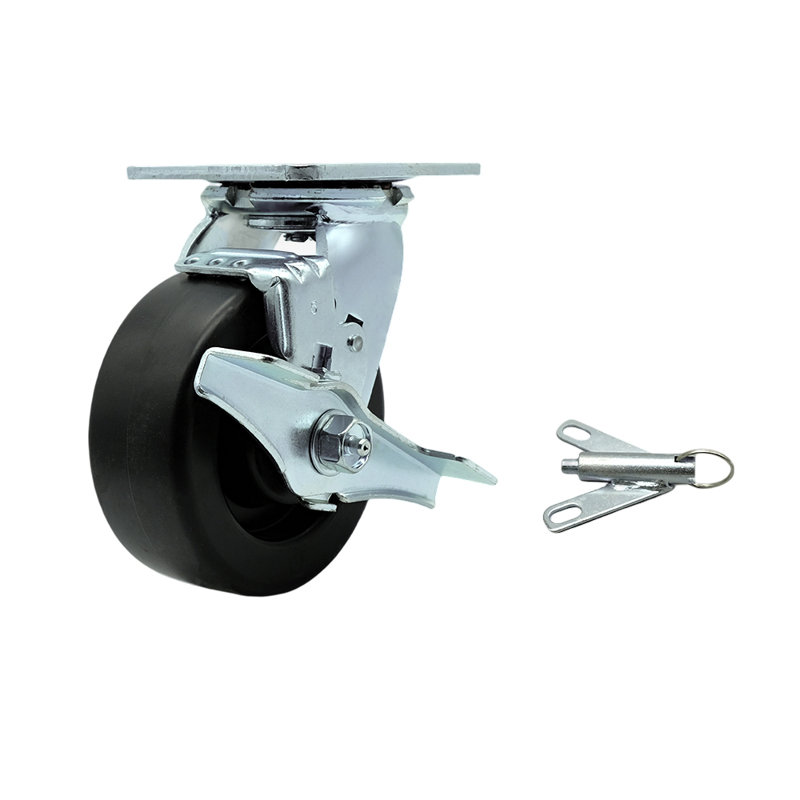

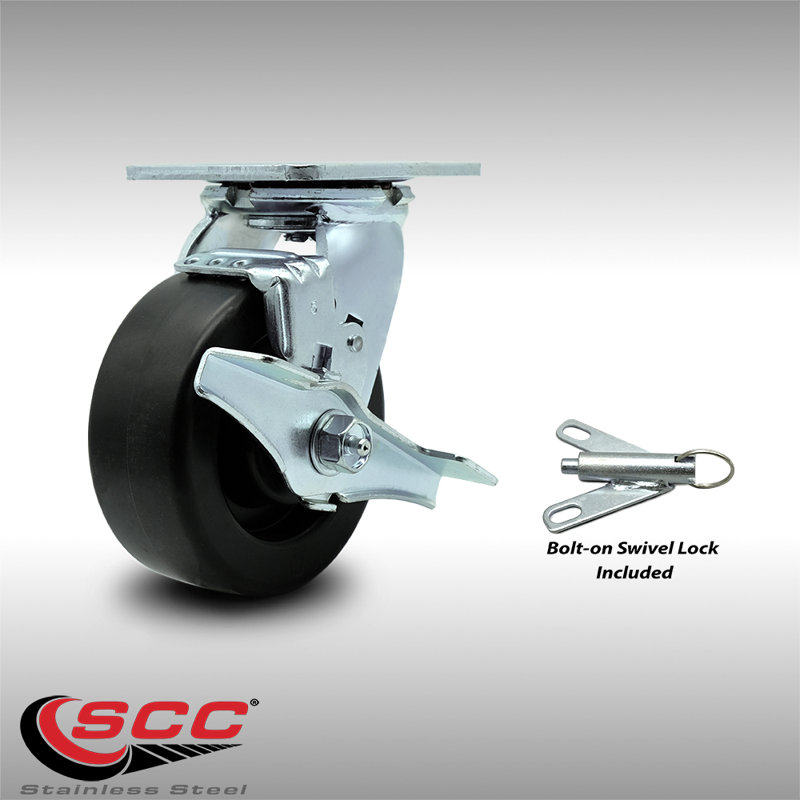

Listing is for one (1) Service Caster Series #30 stainless steel swivel caster with a 5" diameter by 2" wide polyolefin wheel and maintenance free precision ball wheel bearings with a side lock brake & bolt on swivel lock capable of supporting 650 lbs./caster.

Features

These Service Caster Series #30 Polyolefin casters offer various wheel sizes and mounting heights: 4” wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8” wheel: 9-1/2” mounting height.
Weight Capacity: 4": 500 lbs Capacity/Caster, 5": 650 lbs Capacity/Caster, 6": 700 lbs. Capacity/Caster, and 8": 900 lbs Capacity/Caster
Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on.
Brake options include a top lock brake (TLB) and a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.
