316SS Solid Polyurethane Swivel 1- Expanding Stem Caster Set SCC

Name: 316SS Solid Polyurethane Swivel 1- Expanding Stem Caster Set SCC
Brand: Service Caster
SKU: SRVJ1636
Price: 319.99 USD
Availability: InStock

ByService Caster

Earn $16.00 in rewards, with 5% back¹, plus more exclusive perks

Get $40 off your qualifying first order of $100+** with the Wayfair Credit Card! Valid through 7/7/2026.**

Apply Now

$319.99 was~~$523.12~~

39% Off

{BOLD_AS_LOW_AS}{BOLD_AFFIRM_REUSE_TITLE_SECTION_1}or 0% APR with Affirm

About This Product

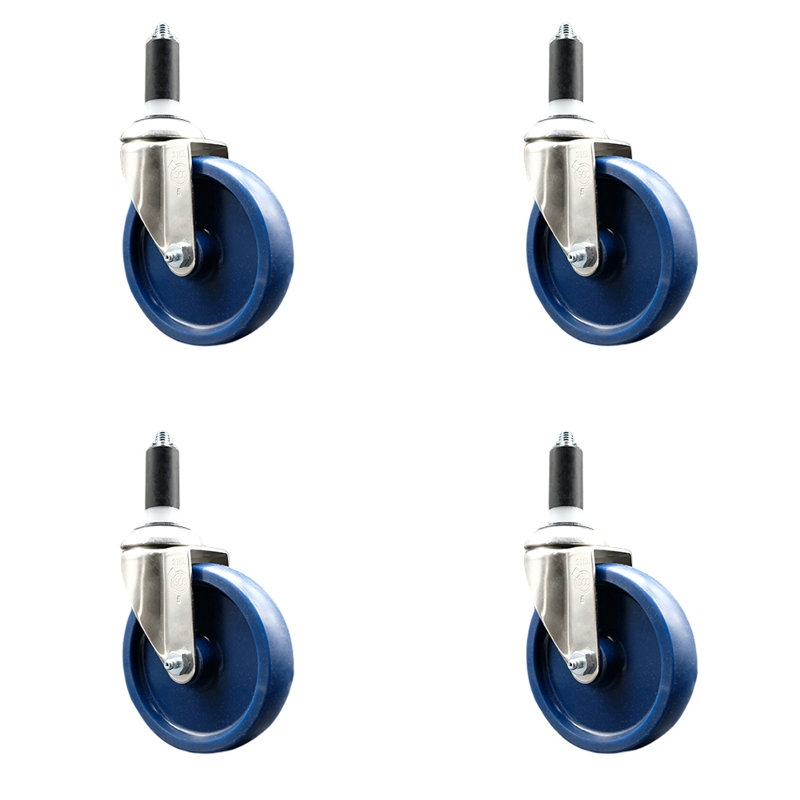

Listing is for a set of four (4) Service Caster Series #20 1-3/8" expanding stem 316 stainless steel swivel casters with 5" diameter by 1-1/4" wide solid polyurethane wheels capable of supporting a total weight of 1,200 lbs. (300 lbs./caster.).

Features

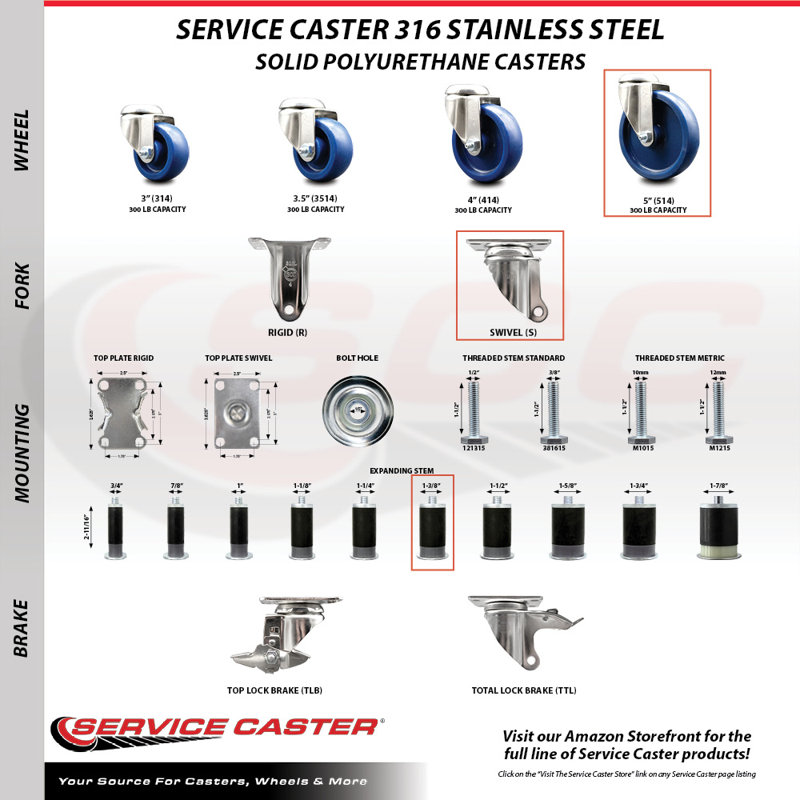

These Service Caster Series #20 Solid Polyurethane casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height.
Weight Capacity: 3", 3.5", 4",and 5": 300 lbs Capacity/Caster
All casters feature an expanding stem that is 2-11/16” in length. The expanding stem comes in 10 different diameters: (3/4”, 7/8”, 1”, 1-1/8”, 1-1/4”, 1-3/8”, 1-1/2”, 1-5/8”, 1-3/4”, and 1-7/8”). Before ordering, Service Caster recommends measuring the inside diameter of your tubing- this measurement will determine the corresponding expanding stem diameter needed. Not sure how to measure or don't see the size you need? Call us or send us a message.
Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB), which is featured on 3", 3-1/2", 4", and 5" wheel sizes, places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL), which is featured on all wheel sizes, also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.
