This Prime-Line H 3686 is an awning crank handle is bronze diecast and has a 11/32 inch bore spindle. This fits most awning operators with a 11/32 inch bore spindle such as the universal Prime-Line parts H 3554 or H 3555. It offers excellent torque for easy opening and closing of windows. The crank handle projects out from the operator 3-1/2 inch.

• Used by a variety of window manufacturers that have a 11/32 inch spindle
• Designed to only fit 11/32 inch spindle and anchors with the included set screw
• 3-1/2 inch projection from the operator
• Handle is diecast aluminum design in a bronze finish in a factory sealed package
• Please refer to the line art drawing for dimensions and compare to your needs before purchasing (Not Universal)

This is an awning operator of aluminum diecast construction with a gray baked enamel finish used on Air Control-Keller Windows. It is right-handed with a matching crank handle with a 2-3/8 in. link arm. It has an L-shaped mounting hole pattern that is 5-1/4 inches from the center of the top hole to the center of the bottom hole and the two horizontal holes in the bottom leg are 1-1/8 in. on the center.

• Comes in a neutral gray color to blend with existing hardware, in a corrosion-resistant, baked-on enamel finish
• Designed for use with awning windows manufactured by Nu-Aire Windows
• Features an L-shaped mounting hole pattern to provide greater stability when cranking
• For further dimensional and specification information, please see the line drawing
• A Phillips head screwdriver is required for installation

This is an awning operator of aluminum diecast construction with a gray baked enamel finish used on Andersen windows. It is left-handed with a matching crank handle with a 2-5/8 in. offset link arm. It has an L-shaped mounting hole pattern with one hole offset on the straight edge. The mounting holes are 4-1/2 in. from the center of the top hole to the center of the bottom hole and the two horizontal holes in the bottom leg are 1-7/16 in. on the center.

• Designed for use with awning windows manufactured by Andersen windows
• Features an L-shaped mounting hole pattern to provide greater stability when cranking
• Awning window operator for Andersen windows
• Diecast housing and crank with case hardened steel gears
• For further dimensional information, please see the line drawing

This is an awning operator of aluminum diecast construction with an aluminum painted finish used on Stanley windows. It is left-handed with a matching crank handle with an offset link arm. It has a reversed L-shaped mounting hole pattern with one hole offset on the straight edge. The mounting holes are measured from the center of holes to the center of holes.

• Designed for use with awning windows manufactured by Stanley windows
• Features a reversed L-shaped mounting hole pattern to provide greater stability when cranking
• Awning window operator for Stanley windows
• Diecast housing and crank with case hardened steel gears
• Aluminum-colored enamel finish

This is an awning operator of aluminum diecast construction with a gray baked enamel finish used on Pan-American Windows. It is left-handed with a matching crank handle with a 2-5/8 in. link arm. It has an L-shaped mounting hole pattern that has two top holes that are 5-1/4 in. from the center of the top holes to the center of the bottom hole and the two horizontal holes in the bottom leg are 1-5/16 in. on the center.

• Constructed of diecast and steel material
• Comes in a neutral gray color to blend with existing hardware, in a corrosion-resistant, baked-on enamel finish
• Designed for use with awning windows manufactured by Pan American and Stanley Windows
• Features an L-shaped mounting hole pattern to provide greater stability when cranking
• Please refer to the line art drawing for dimensions and compare with your needs before ordering (Not universal)

This is an awning operator of aluminum diecast construction with a gray baked enamel finish used on Tucker Windows. It is right-handed with a matching crank handle with a 2-3/8 inch link arm (as viewed for the inside looking out). It has an L shaped mounting hole pattern with a top hole that is off centered. The dimensions are 5-1/4 inch from center of the top hole to the center of the bottom hole and the 2 horizontal holes in the bottom leg are 1-1/4 inch on center.

• Constructed of diecast and steel material and is a right hand based on the handle location and mount to the Awning Operator Housing
• Comes in a neutral gray color to blend with existing hardware, in a corrosion resistant, baked-on enamel finish
• Designed for use with awning windows manufactured by Look-Rusco Windows
• Features an L-shaped mounting hole pattern to provide greater stability when cranking
• Please refer to the line art drawing for dimensions and compare with your original item before purchasing (Not Universal)

This is an awning operator of aluminum diecast construction with a gray baked enamel finish used on Pan-American Windows. It is right-handed with a matching crank handle with a 2-5/8 in. link arm. It has an L-shaped mounting hole pattern that has two top holes that are 5-1/4 in. from the center of the top holes to the center of the bottom hole and the two horizontal holes in the bottom leg are 1-5/16 in. on the center.

• Constructed of diecast and steel material
• Comes in a neutral gray color to blend with existing hardware, in a corrosion resistant, baked-on enamel finish
• Designed for use with awning windows manufactured by Pan American and Stanley Windows
• Features an L-shaped mounting hole pattern to provide greater stability when cranking
• Please refer to the line art drawing for dimensions and compare with your needs before ordering (Not universal)

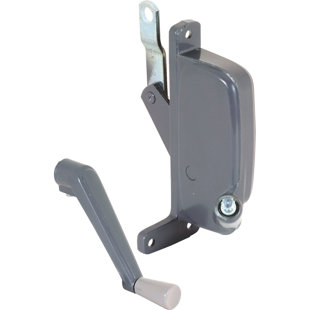

This is an awning operator of aluminum diecast construction with a gray baked enamel finish used on Stanley-C and E Windows. It is right-handed with a matching crank handle with a 2-3/16 in. link arm. It has an L-shaped mounting hole pattern that is 5-1/4 in. from the center of the top hole to the center of the bottom hole and the 2 horizontal holes in the bottom leg are 1-3/8 in. on the center.

This T-handle is a diecast universal awning operator T-handle. It has a 3/8 in. bore that fits most common awning operators (see Prime-Line parts H 3554 or H 3555). It has a gray finish to match the gray finish found on most awning operators in the field. For white see Prime-Line part H 3811.

• For further dimensional information, please see the line drawing

This is an awning operator of aluminum diecast construction with a gray baked enamel finish used on Look-Rusco Windows. It is left-handed with a matching crank handle with a 2-3/8 in. link arm. It has an L-shaped mounting hole pattern with a top hole that is off-centered. The dimensions from that off-centered hole to the bottom hole are 5-1/4 in. and the 2 horizontal holes in the bottom leg are 1-3/8 in. on center.

• Used by Look Russo awning windows
• This is left handed (as viewed from inside your home looking out)
• For further dimensional information, please see the line drawing

This is an awning operator of aluminum diecast construction with a gray baked enamel finish used on Miami windows. It is right-handed with a matching crank handle with a 2-3/16 in. offset link arm. It has an L-shaped mounting hole pattern with one hole offset on the straight edge. The mounting holes are 5-1/8 in. from the center of the top hole to the center of the bottom hole and the 2 horizontal holes in the bottom leg are 1-1/2 in. on the center.

• Used as a awning window operator
• Comes in a diecast aluminum construction with a gray finish
• Has an L-shaped mounting hole pattern
• Features a 2-3/16 in. offset link arm and matching crank handle
• Used by Miami awning windows

This is an awning operator of aluminum diecast construction with a gray baked enamel finish used on Stanley Windows. It is left-handed with a matching crank handle and 2-3/16 in. offset link arm. It has an L-shaped mounting hole pattern that has 2 holes 7/16 in. apart at the top and is 5-1/4 in. from the center of the top holes to the center of the bottom hole and the 2 horizontal holes in the bottom leg are 1-1/2 in. on center.

• Constructed of diecast and steel material
• Comes in a neutral gray color to blend with existing hardware, in a corrosion-resistant, baked-on enamel finish
• Designed for use with awning windows manufactured by Tucker Windows
• Features an L-shaped mounting hole pattern to provide greater stability when cranking
• For further dimensional and specification information, please see the line drawing
