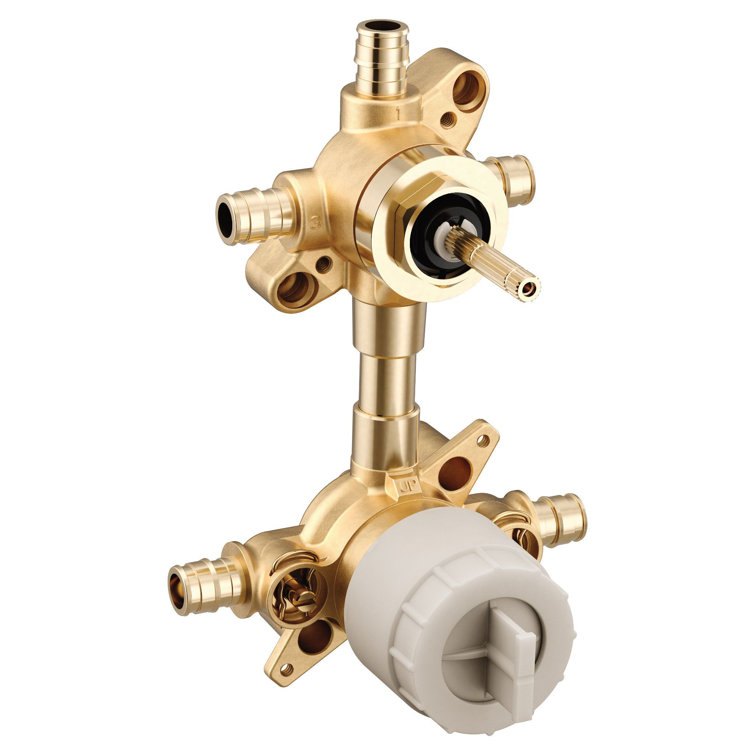

U232CXS M-CORE 3-Series Mixing Valve With 2 Or 3 Function Integrated Transfer Valve With Cold Expansion PEX Connections And Stops
See More by Moen
U232CXS M-CORE 3-Series Mixing Valve With 2 Or 3 Function Integrated Transfer Valve With Cold Expansion PEX Connections And Stops
See More by Moen
$168.99$276.1039% Off
Shipping
to
Product Overview
M-CORE is a shower design for your time. This valve system is simpler and faster to install and offers additional functionality with desired style choices to create an ideal shower environment. Moen has conducted extensive research to create M-CORE, and what drives the design is a passion to make the workday more streamlined for plumbers, and to give more freedom in showering functionality and design for both new construction and remodel projects. Homeowners and designers will enjoy M-CORE's improved style and finish options, including perfectly matching mixing and transfer trim, and refined details that provide the finishing touches to a dream bathroom. Once installed, M-CORE valves, with new 3-Series trim, have pressure-balancing capabilities designed to control temperature fluctuations in the event of water pressure changes in the home. They also feature volume control, allowing you to adjust the flow of water.
Features
- Integrated M-CORE transfer valves can control 2 or 3 showering devices, a simple transfer cartridge modification changes the valve’s flow from two outlets to three outlets
- Valve allows 2 or 3 showering devices to flow independently
- When using 3 showering devices, the transfer valve cartridge must be modified. Simple cartridge modification changes the valves flow from two outlets to three outlets. See transfer valve instructions for additional information.
- When using 2 showering devices, designated outlet 3 must be capped
- This valve is intended for Cold Expansion PEX installation
- Offers design flexibility to choose your trim after the valve installation, so you can take your time with your style and finish selections
- M-CORE’S adaptability allows the valves to be roughed in with the option of functionality and style changes that don't require removing or changing the valve(s)
- Features an integrated mounting bracket that secures the valve directly to a brace, streamlining the installation process and saving time
- Offers a precise temperature limit adjustment, and the integrated test cap allows installers to easily flush and test the system without having to remove or install the cartridge
- M-CORE mixing and transfer valves are available in several inlet and outlet plumbing options to meet the needs of the installers
- Backed by Moen’s Limited Lifetime Warranty
- Improved style options, including the perfectly matched mixing and transfer trim
