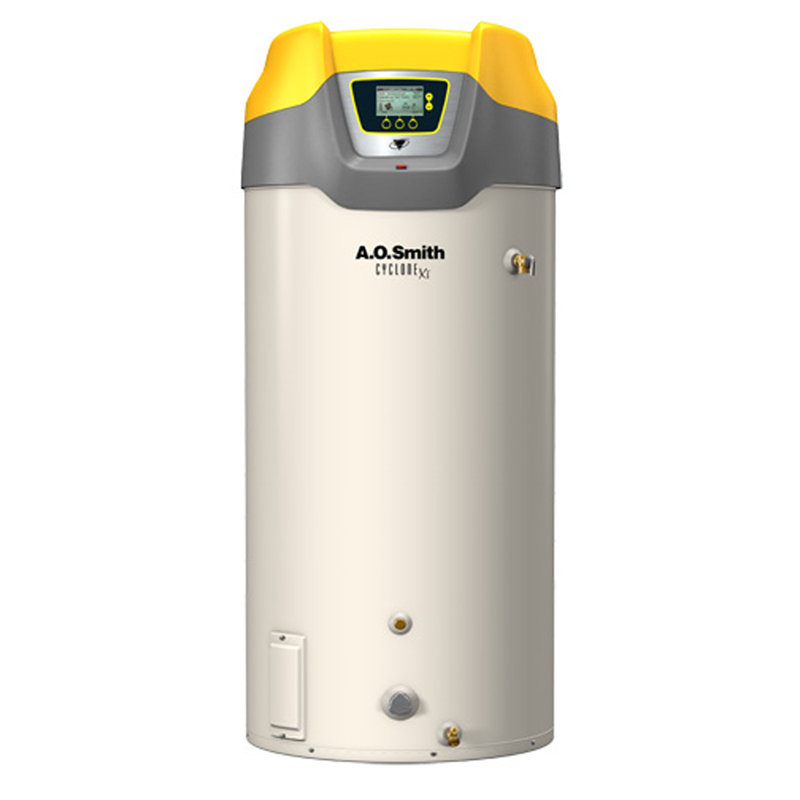

Cyclone Xi Natural Gas Storage Tank Water Heater BTH-150

Features

• Commercial tank type water heater
• Intelligent control system with LCD display -provides detailed water heater status information, precise temperature control, built-in diagnostics, and run history information
• Submerged combustion chamber with helical heat exchanger coil - positioned in center of tank, surrounded by water to virtually eliminate radiant heat loss from chamber. Spiral heat exchanger keeps hot burner gases swirling, uses centrifugal force to maximize efficiency of heat transfer to water in tank. Spiral heat exchanger prevents scale and sediment from forming on water-side surface, which can reduce energy efficiency over time
• Powered anodes -provides long-lasting tank protection in varying water conditions, does not require maintenance or inspection
• Permaglas ultra coat glass lining -exclusive process provides superior protection against corrosion. Both sides of heat exchanger coil are lined for protection against flue gas condensate inside coil
• Uses inexpensive PVC, CPVC or ABS pipe for intake and exhaust. Canadian installations require ulc s636 listed PVC or CPVC pipe for intake and exhaust
• High efficiency pre-mix powered burner -down-fired pre-mix burner provides optimum efficiency and quiet operation. Top-mounted burner position prevents condensation from affecting burner operation
• Up to 95% thermal efficiency, direct-vent
• Space saving design for installation flexibility
• Recovery cap. 180 F Rise GPH: 173
• Gallon capacity: 100
• Input BTU/HR : 150,000
