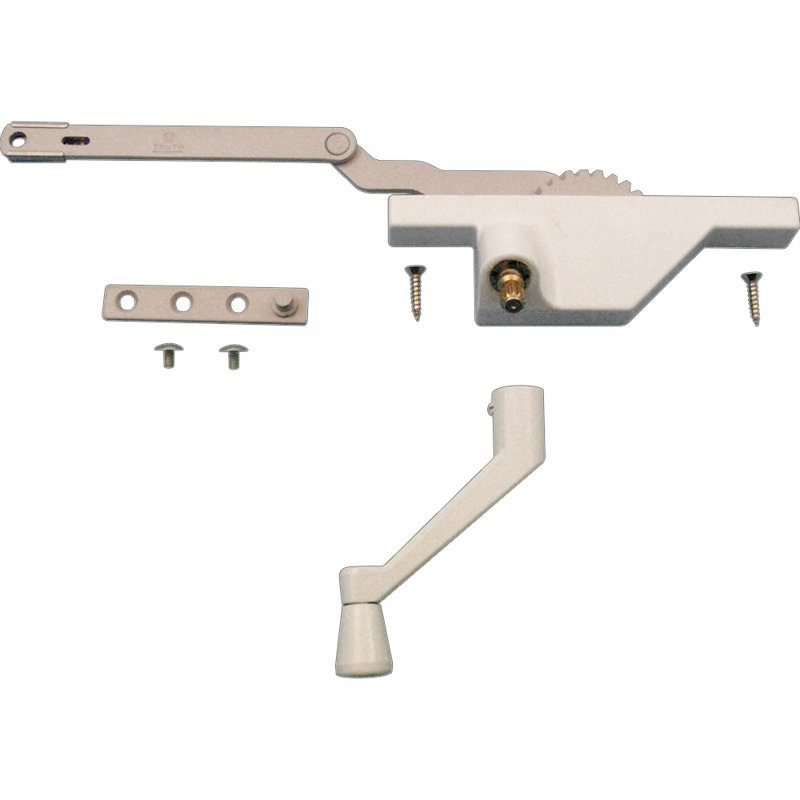

This is a left-handed Dyad casement operator with a white finish. The actuating arm is jointed with a clip on the end that catches onto the stud bracket that fits onto the sash. Hardened steel arms, worm drive and gears are protected with a corrosive resistant finish. The mounting holes are a blind tap meaning that the screws thread through the window frame and into the back of the operator housing.
Not Included:
Lock
Features
Used by Truth hardware
Left handed from the outside looking in
Mounting holes are 5 inch on center
Diecast construction with a white finish

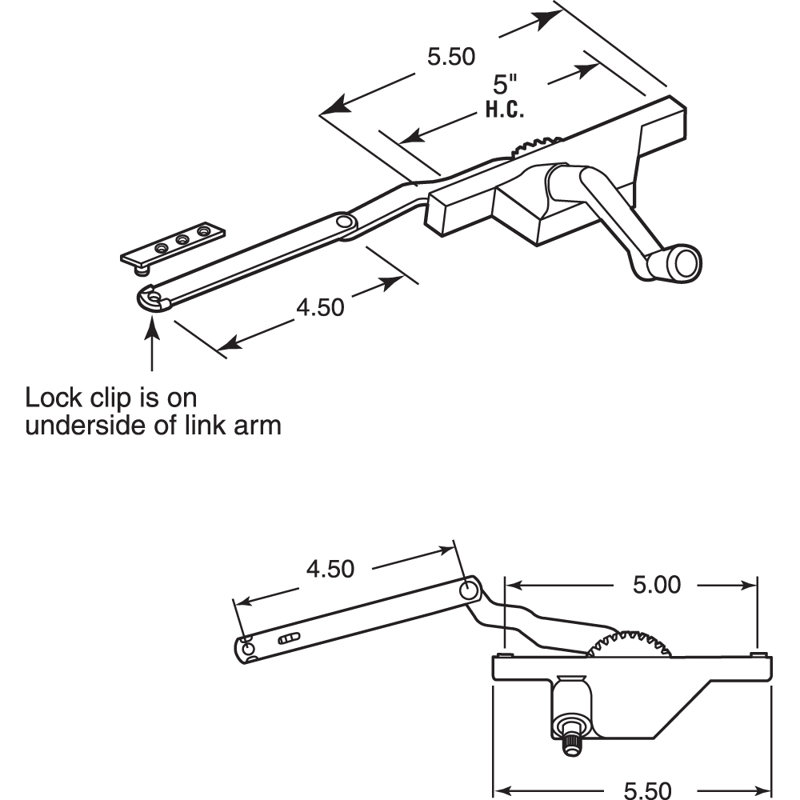

Please refer to the line art drawing for dimensions and compare with your original item before purchasing
Product Dimensions
Other Dimensions
Overall Dimensions
14.25'' H X 4.75'' W X 1.5'' D
Overall Product Weight
1.14 lb.
Details
Product Type
Shutter / Door Accessory
Function
Keyless Entry
Material
Metal
Compatible Door Type
Exterior
Outdoor Use
Yes
Durability
Water Resistant, Corrosion Resistant, Weather Resistant
Assembly
Assembly Required
No
Mounting / Installation Required
Yes
Additional Parts Required (Not Included)
No
Number of Mounting Holes
7
Warranty
Commercial Warranty
No
Product Warranty
Yes
Warranty Length
1 Year
Full or Limited Warranty
Limited
Warranty Details
Warranty: Goods are warranted against manufacturing defects for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse.
