This is a plain back patio door roller assembly with a 1-1/4 in. concave or grooved steel ball bearing roller. It is 9/16 in. wide with a 13/16 in. flare, 1 in. tall and 2-1/8 in. long. It is rear adjusting with a 10-32 threaded mounting hole on the back end. It is used by Acorn Doors and a variety of other manufacturers of patio doors.

Replace damaged or missing patio door rollers with this 1 inch plain back tandem roller assembly. Designed for a variety of sliding glass door manufacturers, it features two concave steel ball bearing wheels in a durable stamped steel housing. Each wheel has a 5/16 inch width with a steel inner race and ball bearings for smooth, quiet operation. The housing measures 1-1/32 inch tall, 11/16 inch wide, and 3-1/8 inch long, with a 1/4-20 threaded mounting hole on the back and an optional hole on top. Adjustable height allows precise alignment, though a mounting screw (1/4-20 inch) may need to be purchased separately. Ideal for DIY homeowners or contractors, this assembly restores effortless sliding door operation.

This is two piece roller assembly used on Ador Hilite patio doors. The outer housing is 5/8 in. wide, 31/32 in. tall with a 11/32 in. flare width and has two hook tabs on top. The inner housing holds a 1-1/2 in. steel ball bearing roller. Together, they create an adjustable roller assembly that hooks into the bottom door rail and then is held in place by a 1/4-20 machine screw placed into the back end.

This is the replacement inner housing that fits into the Prime-Line part D 1545 outer housing. It has a 1-1/2 in. steel ball bearing roller installed in the stamped steel inner housing. If needed, the adjusting screw can be backed out of the old roller assembly, then the inner housing removed and replaced by this part. Used by Ador Hilite patio doors.

Are you having trouble sliding your screen door open or closed? Have you checked your rollers/roller assemblies? Don’t replace the entire door. For a fraction of the cost of a new door, replace those worn-out rollers. This sliding screen door corner assembly is used on Acorn Industries doors and a variety of other manufacturers. It is an all-in-one corner and roller combination. It is made of stamped steel with an adjustment screw and center grooved high-density polyethylene roller attached at the end of the bottom leg. The roller is 15/16 Inch in diameter. The corner fits into the sliding screen door frame holding the bottom or top rails and the side stiles together. Order yours today and have your door slide like new.

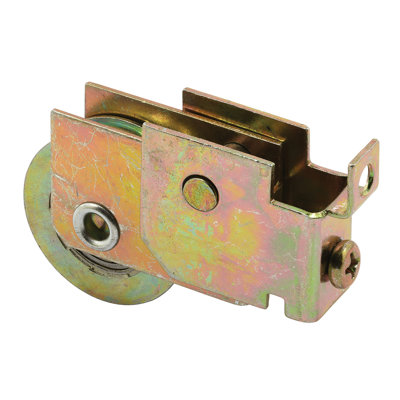

This is an F-tab patio door roller assembly with a 1-1/4 in. concave or grooved steel ball bearing roller. When the corner screw passes through the F-tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together. The housing is 9/16 in. wide, 1-3/32 in. tall with a rear adjusting screw. Used by Superlite, Fenton and a variety of other sliding patio door manufacturers.
