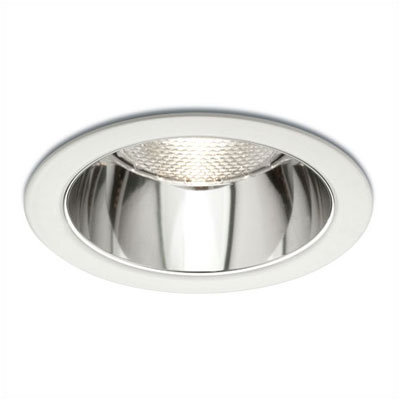

WAC 4" Line Voltage Aperture Cone Recessed Trim with Reflector

The appeal of recessed lighting is that it's a more discrete lighting source. It provides an unobtrusive source of light but also creates style and atmosphere. This line voltage 4" trim is available in a variety of stylish finishes. With its sleek design and easy installation, it will cast light from your ceiling and illuminate your interiors beautifully.

FEATURES :

• Finish: Brushed-Nickel reflector/White trim, Specular Black reflector/White trim, Specular Clear reflector/White trim, Specular Gold reflector/White trim, White reflector/White trim
• Open specular reflector
• Lamp: 75PAR16 compatible with housings: R4VI, R4VI-R
• Lamp: 50PAR20 compatible with housings: R4VI, R4VI-R, R4VI-B-ICA
• Lamp: 45PAR16 compatible with housing: R4VI-B-ICA
• Recessed housings sold separately
• Dimensions: 4.44 - 5.56" H x 4.56" Diameter

Incandescent Non- IC Line Voltage Recessed Housing Features:

• Non-IC new construction frame-in kit
• 4" incandescent housing
• Non-IC 3" clearance on all sides must be maintained when insulation is present
• UL listed for through branch circuit wiring
• J-box accessible through ceiling opening
• 3.75" cutout
• Dimensions: 9.38" W x 11.5" L

Incandescent Line Voltage Non IC Remodel Recessed Housing Features:

• Non-IC remodel housing
• 4" incandescent housing
• Non-IC 3" clearance on all sides must be maintained when insulation is present
• UL listed for through chain wiring
• 4" cutout
• Dimensions: 14.75" L x 4" W x 6.13" D

Incandescent Non-IC Line Voltage Air Tight Recessed Housing Features:

• Non-IC housing
• 4" incandescent housing
• De-burred edges for easy handling
• Factory installed and captive bar hangers with nailers and integrated T-bar ceiling cutouts
• Non-IC 3" clearance on all sides must be maintained when insulation is present
• UL listed for through branch wiring
• 4" cutout
• Dimensions: 9.375" W x 12.75" L x 5.5" D

NOTE: Track Lighting is not universal. W.A.C. Lighting products can only be used with W.A.C. Lighting products or warranty is void.
