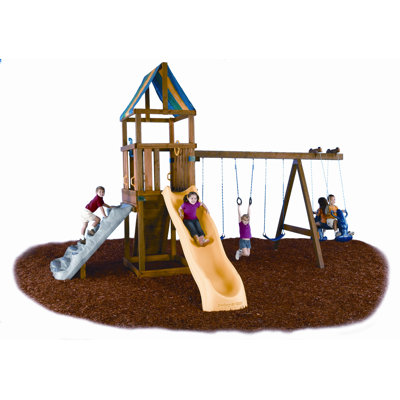

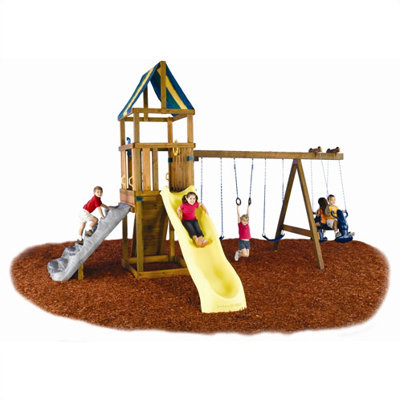

Swing-n-Slide Alpine Custom DIY Play Set Hardware Kit - Project 613

This ready to build swing kit comes with the flexibility and accessories at value cost. Great for do it yourself parents this kit comes with assembly plan, 31 brackets, 4" x 4" construction. Optional pieces (for an additional cost) include: Super Speedwave slide, Discovery Mountain, steering wheel, safety handles, Anchor It playground anchor set, climbing rocks, swing hangers, Iron Man Rings, periscope, and Mega Rider are available at an additional cost. Lumber and swing set hardware are not included.

Features:

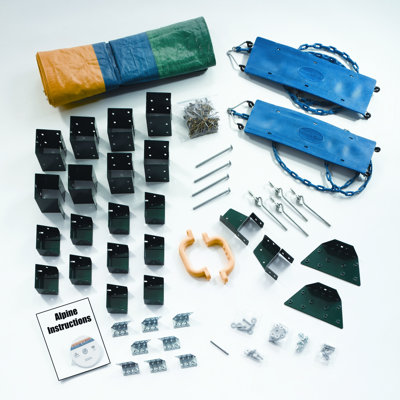

• Comes with assembly plan, 31 brackets, 4" x 4" construction
• Lumber NOT included
• Optional Super Speedwave slide attaches to 5' - 5'6" platform
• Requires one 2" x 4" x 8' piece of lumber for mounting
• Slide holds up to 270 lbs
• Optional climbing rocks comes with 4 climbing holds and can hold up to 230 lbs
• Optional Discovery Mountain easily attaches to 4' to 5' deck heights holding up to 450 lbs
• Optional Mega Rider swing seat holds up to 225 lbs, and requires a 2" x 4" x 4' piece of lumber for mounting
• Optional swing hanger attaches to metal or wooden swing beam and can hold up to 115 lbs
• Optional Iron Man Rings boost strength and coordination holding up to 75 lbs
• Optional pair of safety handles promote a helping hand
• Optional plastic steering wheel and periscope add to the fun
• Optional Anchor It playground anchor set is recommended for all swing sets
• All optional items are available at an additional cost
• Other possible accessories include Turbo Tube slide, Cool Wave slide, Speedwave slide and more
• Kit meets all ASTM (American Society of Testing Materials) requirements for safety
• 16 sq. ft. play deck with 5' deck height
• 10 play activities
• Estimated building time: 5-9 hours
• Limited 5 year warranty

Lumber Specifications:

• Five 2" x 4" x 8'
• Three 2" x 4" x 10'
• Six 5/4" x 6" x 10'
• Four 5/4" x 6" x 12'
• Four 4" x 4" x 8'
• Five 4" x 4" x 10'
• One 4" x 6" x 12' or two 2" x 6" x 12'
• 5 ft climbing rock wall requires one 2" x 4" x 8', one 2" x 4' x 10', and three 5/4" x 6" x 10' pieces of lumber
• Discovery Mountain requires two 2" x 4" x 8', one 2" x 4" x 10', and 5/4" x 6" x 10'
• Mega Rider requires one 2" x 4" x 4'
• Super Speed wave requires one 2" x 4" x 2'
• Ladder requires three 2" x 4" x 8'

Nail and Screw Specifications:

• Must be ACQ compatible
• 1# 4D galvanized nails, or 1# 8 x 1 1/4" screws
• 1# 8D galvanized nails, or 1# 8 x 2" screws
• 5# 10D galvanized nails, or 5# 8 x 2 1/2" screws

**Please Note: Swing-N-Slide products are intended for residential use only, and will only be shipped to residential addresses.**
