Peerless Plasma Screen Dual Back-to-Back Ceiling Mount - Set of: DCS400 and ADD and ADD and PLB-1

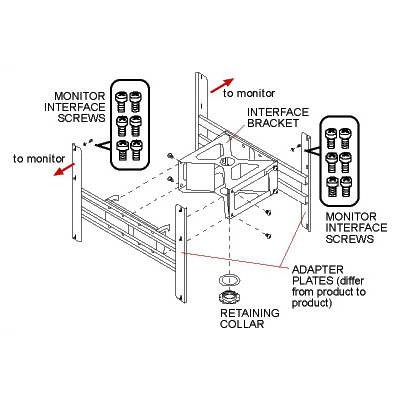

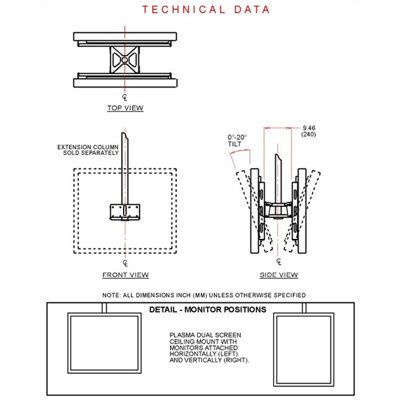

Plasma Screen Dual Back-to-Back Ceiling Mount

Each Mount is designed to support two plasma screen monitors, back to back, from a ceiling structure. For a complete installation an Extension Column and Ceiling Adapter with Stress Decoupler must be ordered in addition to the Dual Screen Ceiling Mount. Use the drop-down menu above to locate the right mount for your Plasma Screen TVs.

Features:

• Horizontal or vertical screen positioning
• Security fasteners
• All-steel construction
• Black fused epoxy finish
• 0 degrees to 20 degrees adjustable tilt
• 360 degree Swivel action

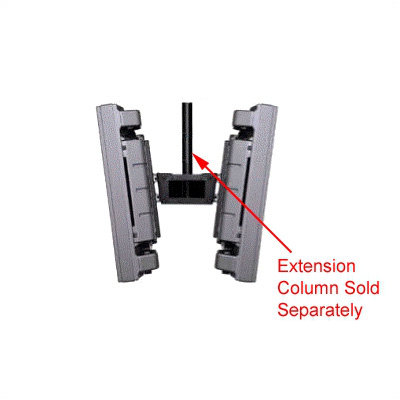

• Extension column and ceiling plate sold separately
• NOTE: PLP adapter plate required - see related products

Need professional installation? Use the Flat Panel Mount Installation Card (for up to 30” screens) or the Large Flat Panel Mount Installation Card (for over 30” screens)! Give us a call with any questions!

Structural Ceiling Decoupler

This structural ceiling fixture provides the heavy duty support required to hang a Peerless Multi-DisplayTM assembly from a structural ceiling. (DCS400)

Features:

• Decoupler (absorbs structural vibrations)
• Black fused epoxy finish
• Heavy gage steel construction
• 12 concrete anchors included
• Max Load: 1200 lbs.
• MAXIMUM LOAD = THE COMBINED WEIGHT OF ALL ATTACHED HARDWARE AND COMPONENTS. THE ASSEMBLY MUST BE IN BALANCE MEANING ALL TVs (ON THE CAROUSEL) MUST BE THE SAME MODEL AND EACH TV SUPPORT TRAY MUST CONTAIN A TV. IF APPLICABLE, ALL VCRs (ON THE CAROUSEL) MUST BE THE SAME MODEL AND EACH VCR MOUNT MUST CONTAIN A VCR.

Adjustable Extensions for Peerless Ceiling Decouplers

Features:

• Select the adjustable range to meet your needs
• Adjustable at 1" increments
• Notched lower end for safety locking
• Black fused epoxy finish
• Locking, tube-in-tube design
• For use with Peerless ceiling decouplers.
• NOTE: Do not confuse with ADJ model that is used for jumbo mount brackets and ceiling plates.

Fixed Length Extensions for Peerless Ceiling Decouplers
Features:

• Select the length range to meet your needs
• Notched lower end for safety locking
• Black fused epoxy finish
• Locking, tube-in-tube design
• For use with Peerless ceiling decouplers.
• NOTE: Do not confuse with ADJ or EXT model that is used for jumbo mount brackets and ceiling plates.
