About this item

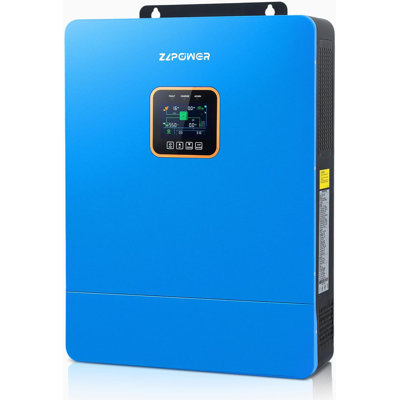

【ALL-IN-ONE SOLAR INVERTER CHARGER】ZLPOWER 10000W 48V pure sine wave solar inverter combines an inverter, battery charger, and two built-in MPPT solar charge controllers. Supports up to 11,000W PV input, a maximum PV open-circuit voltage of 500VDC, and up to 200A maximum battery charging current. Selectable 120V/240V split-phase or 120V single-phase output accommodates different off-grid and backup power configurations.
【10000W OUTPUT & SMART PROTECTION】Delivers 10,000W rated continuous output and up to 20,000W peak power for household appliances, workshop equipment, and compatible motor loads up to 6HP, subject to starting requirements and system configuration. Built-in protections include PV input overvoltage and overcurrent, AC input overvoltage, battery overvoltage, and overload protection.
【FOUR CHARGING & FOUR OUTPUT MODES】Choose from four charging modes: Hybrid Charging, Utility Priority Charging, Solar Priority Charging, and Solar Only Charging. Four output modes: Utility Priority, Solar and Utility Hybrid, Solar Priority, and Inverter Priority. Provide flexible control over how solar, utility, and battery power supply your loads.
【TIME-OF-USE CHARGING & DISCHARGING】Schedule battery charging and discharging periods around your daily energy needs and applicable peak/off-peak electricity rates. Charge during lower-rate periods and use stored battery power during higher-rate periods to help manage electricity costs where time-of-use pricing is available.
【BATTERY-FREE OPERATION & BMS COMMUNICATION】Compatible with 48V AGM/Sealed, Gel, Flooded, and lithium batteries, including LiFePO4, with a User Mode for customized battery settings. Supports battery-free operation using available solar and/or utility power, subject to operating conditions. PV or AC input can activate compatible dormant lithium batteries. CAN and RS485 interfaces support communication with compatible battery BMS systems; a USB interface is also provided.
【EXPANDABLE TO 60KW & 5-YEAR WARRANTY】Connect up to six compatible units in parallel for a combined rated output of up to 60kW, supporting growing power needs in off-grid homes, workshops, and small commercial applications. Backed by a 60-month warranty, lifetime technical support, and more than 15 years of solar inverter manufacturing experience. Contact our technical support team for assistance, with responses within 24 hours.
