AboveMoon Quick-Install Heavy-Duty Wall Bracket for 7000-36000 BTU Max 440 LBS For Split Air Conditioner,HVAC,Compressor,Heat Pump System,Outdoor Pre-Drilled Holes Design

Features

• 【Dual-Layer Corrosion Protection】:Constructed with 1.6mm zinc-galvanized steel base + electrostatic powder coating, this bracket resists rust in high-moisture environments. The 550×420mm base plate and 800mm crossbars maintain structural integrity without chemical treatment claims. Compatible with coastal installations where standard brackets show surface oxidation within 2-3 years.

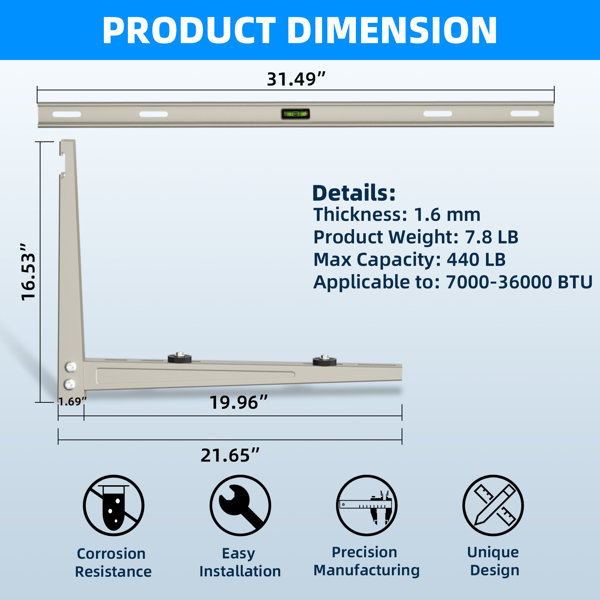

• 【440LB Heavy-Duty Capacity】:Engineered for 9,000-36,000 BTU units, the reinforced triangular design supports 440 lbs static weight .Crossbar length adjustable from 24" to 32" for unit alignment.Leveler bar length: 31.50"; Bracket length: 21.65";Bracket height: 16.50"
• 【Vibration Reducing Base】:Four 30mm thick rubber isolators minimize operational noise transfer to walls.The 15°downward tilt prevents water pooling.Keep the condenser clean and extend its life.
• 【All-Season Safety Design】:Clearance protects against snow/debris with maintenance-free performance (-4°F to 140°F).Ships fully assembled with all required hardware – no welding or cutting needed.Includes all fully assembled hardware, including rubber cushion shock absorbers, bolts,
• 【Precision Leveling System】:Integrated bubble level + laser-marked drilling templates enable less than 1° installation accuracy on concrete/tile/brick walls.Includes Carbon steel expansion screw and M10 bolts.Pre-assembled design reduces installation time to 20 minutes vs 2+ hours for DIY kits.
