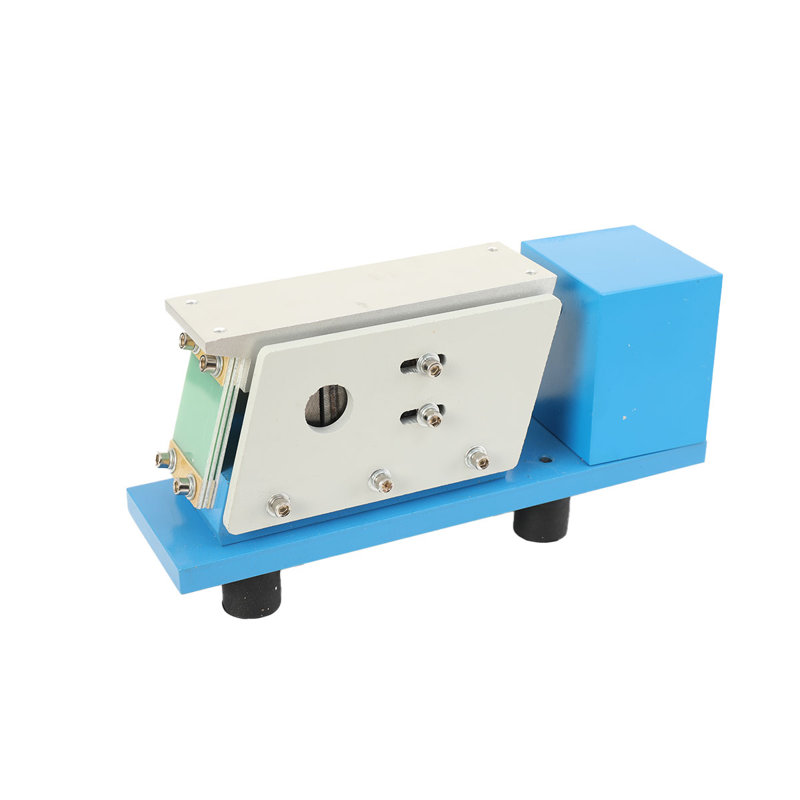

190# Counterweight Vibrating Disk Feeding Machine Linear Direct Vibration Feeder

A linear feeder, also known as a linear vibration feeder, is a mechanical device that can transport materials from a vibrating disc in a straight line. A common linear feeder consists of three parts - a linear track, an electromagnet, and a spring plate. By connecting 110V AC power to the electromagnet to make it vibrate, the electromagnet is driven by a spring plate to move along a linear track, thus achieving the purpose of linear feeding. Specification： Model: 190# Direct vibration net weight: 19.5KG Maximum load: ≤ 10kg Input voltage: 110V Input power supply: ≤ 1.5A Work efficiency: ≥ 50Hz Material channel length: ≤ 800mm
