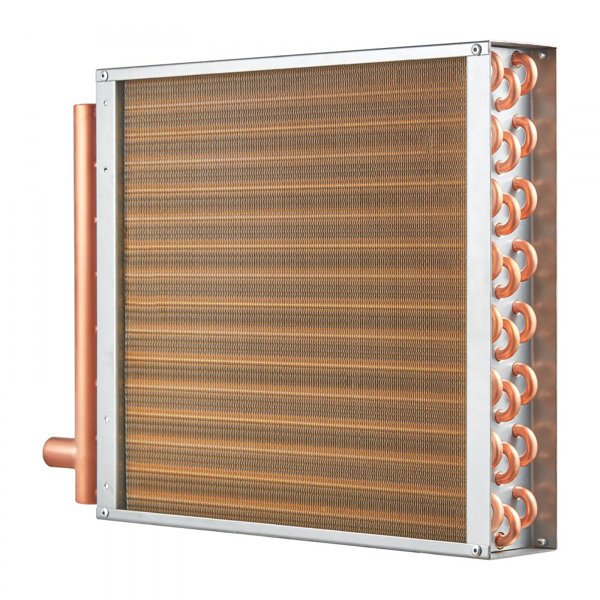

Heat Exchanger Water to Air, 16"x 16" with 3-Row 3/8" Copper Ports, 193 Aluminum Fins Heat Exchanger for Outdoor Wood Furnaces, Residential Heating and Cooling, and Forced Air Heating

Features

• High-Quality Materials: The entire unit is copper brazed at edges and contact points, forming a durable and leak-resistant piece that withstands high pressure and temperature.
• Durable and Corrosion-Resistant: Features epoxy-coated fins, providing high hardness, wear resistance, and corrosion protection. This reduces internal water vapor scaling, promoting maximum heat exchange between air and fins. Suitable for operating temperatures of -40-356℉ / -40-180°C.
• Efficient Heat Transfer: The heat exchanger generates up to 160kBtu per hour, with 12 aluminum fins per inch and 3 rows of 3/8" seamless copper tubes. The threaded copper tubes increase the contact area and capacity of the fluid medium, significantly enhancing the heat exchanger's performance.
• Large Heat Exchange Area: With an effective heat exchange area of 16”x16” and 193 fins, this heat exchanger provides excellent heat transfer performance to meet various needs.
• Tight and Leak-Proof: To eliminate the possibility of micro-leaks, the heat exchanger uses high-pressure vacuum brazing and undergoes rigorous leak testing, ensuring long life and high reliability.
