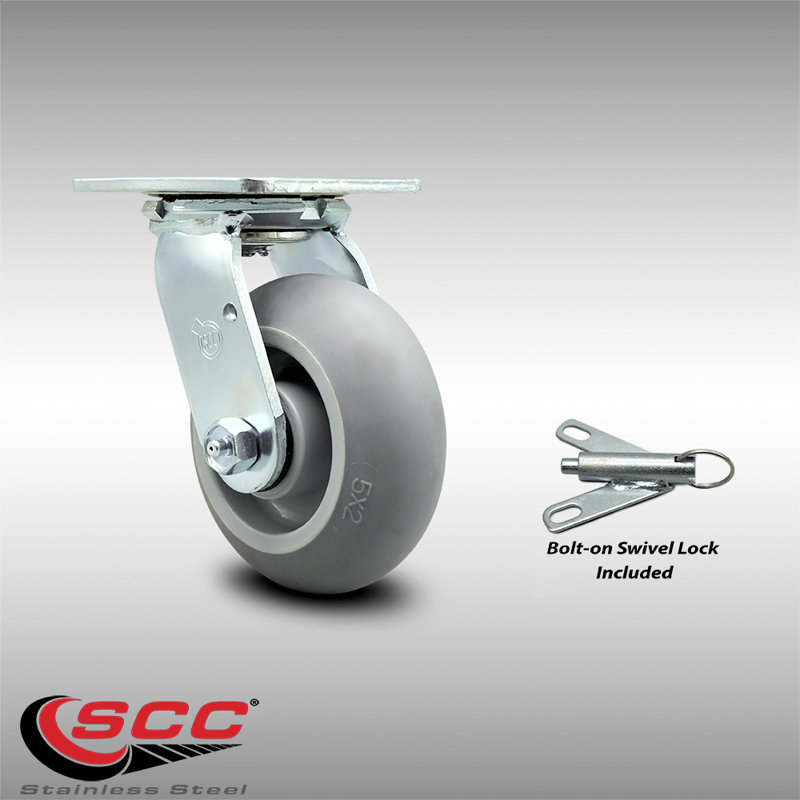

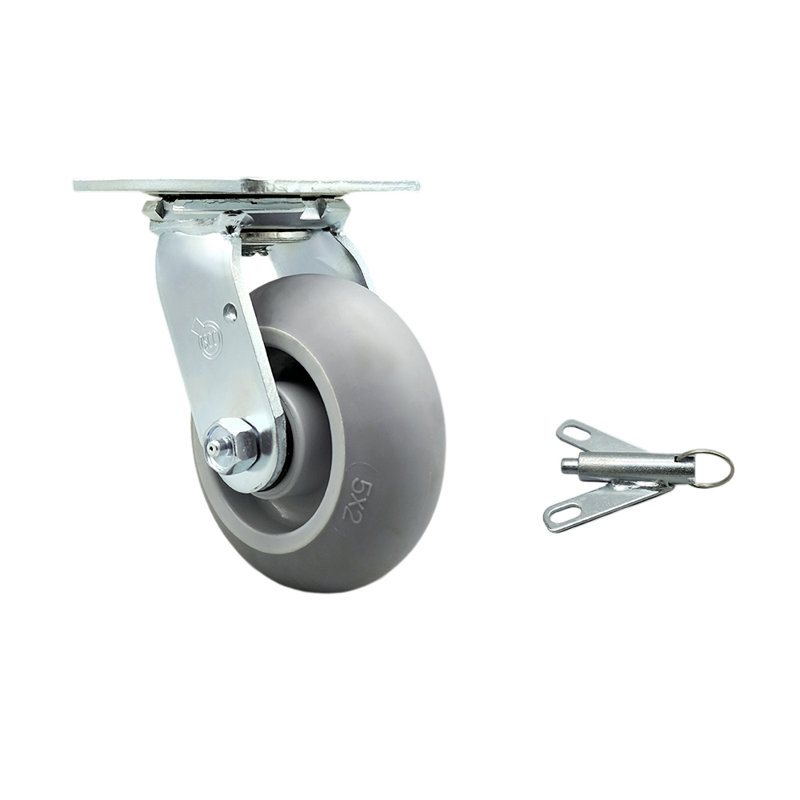

Thermoplastic Swivel Caster

Features

• These Service Caster Series #30 Thermoplastic Rubber Donut Tread on Polyolefin Core casters offer various wheel sizes and mounting heights: 4” wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8” wheel: 9-1/2” mounting height.
• Weight Capacity: 4": 300 lbs Capacity/Caster, 5": 350 lbs Capacity/Caster, 6": 500 lbs. Capacity/Caster, and 8": 600 lbs Capacity/Caster
• Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on.
• Brake options include a top lock brake (TLB) and a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.
