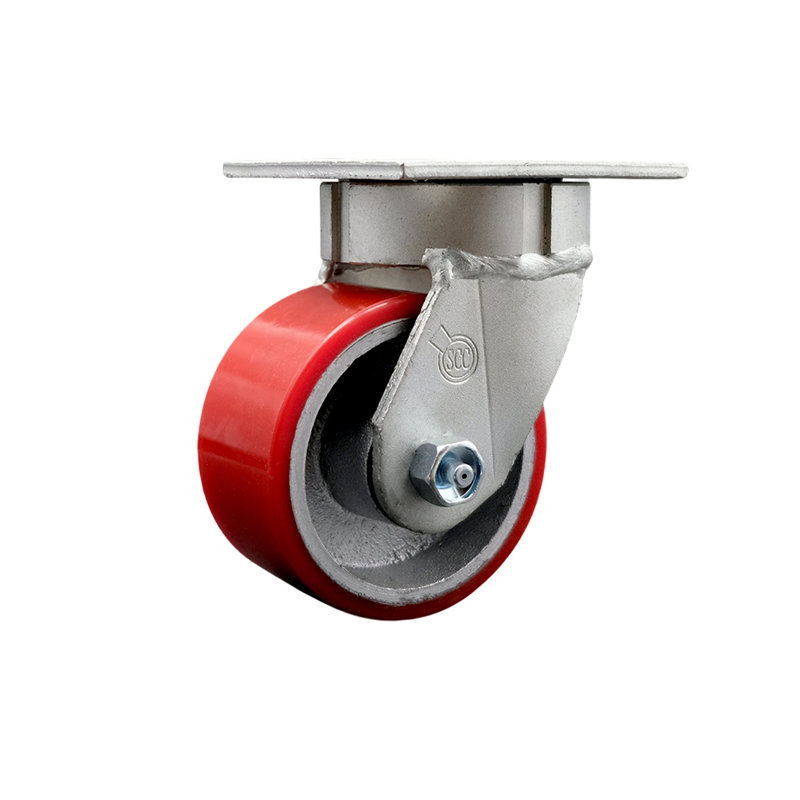

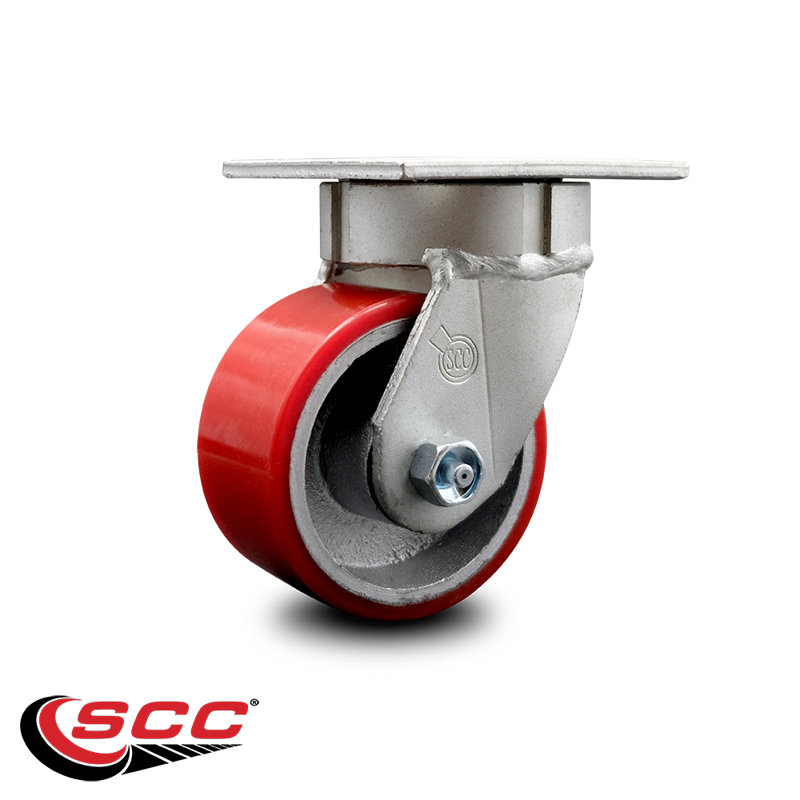

Listing is for one (1) Service Caster Series #KP30 swivel caster with a 4" diameter by 2" wide polyurethane on cast iron wheel capable of supporting 700 lbs./caster.
Features
These Service Caster Series #KP30 Polyurethane on Cast Iron casters offer various wheel sizes and mounting heights: 4” Wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8" wheel: 9-1/2" mounting height.
Weight capacity ranges from 700 lbs on the 4” caster, 1000 lbs on the 5”, 1200 lbs on the 6” and 1250 lbs. on the 8”.

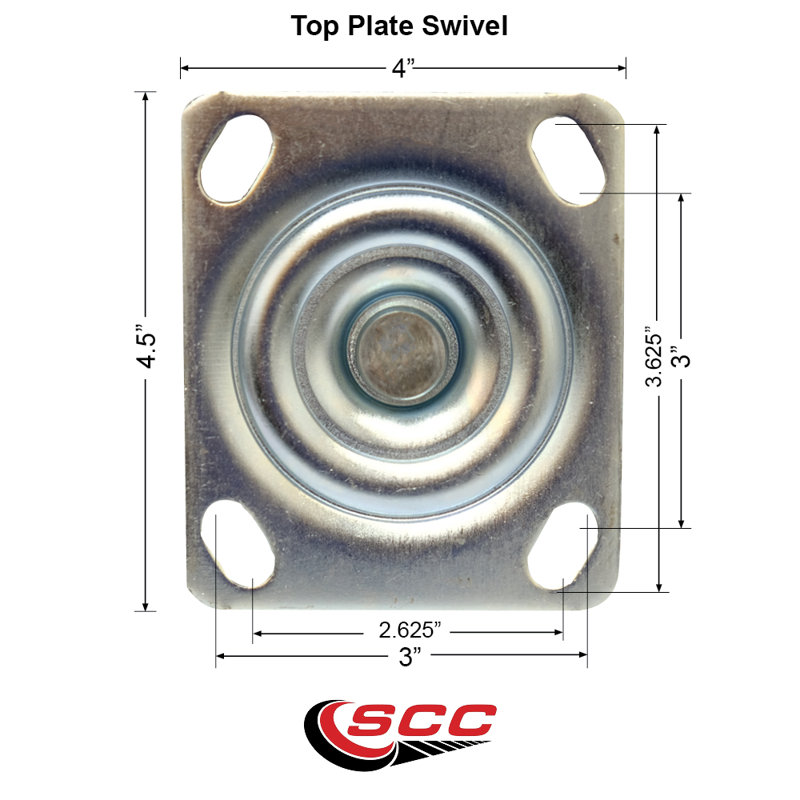

Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on.
Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.
Bolt Size: 3/8" (hardware not included)
Product Dimensions
Other Dimensions
Overall Dimensions
7.5'' H X 12'' W X 12'' D
Overall Product Weight
9 lb.
Details
Product Type
Casters
Material
Polyurethane Tread on Semi Steel Cast Iron Core
Assembly
Additional Parts Required (Not Included)
Yes
Mounting / Installation
Mounting / Installation Required
