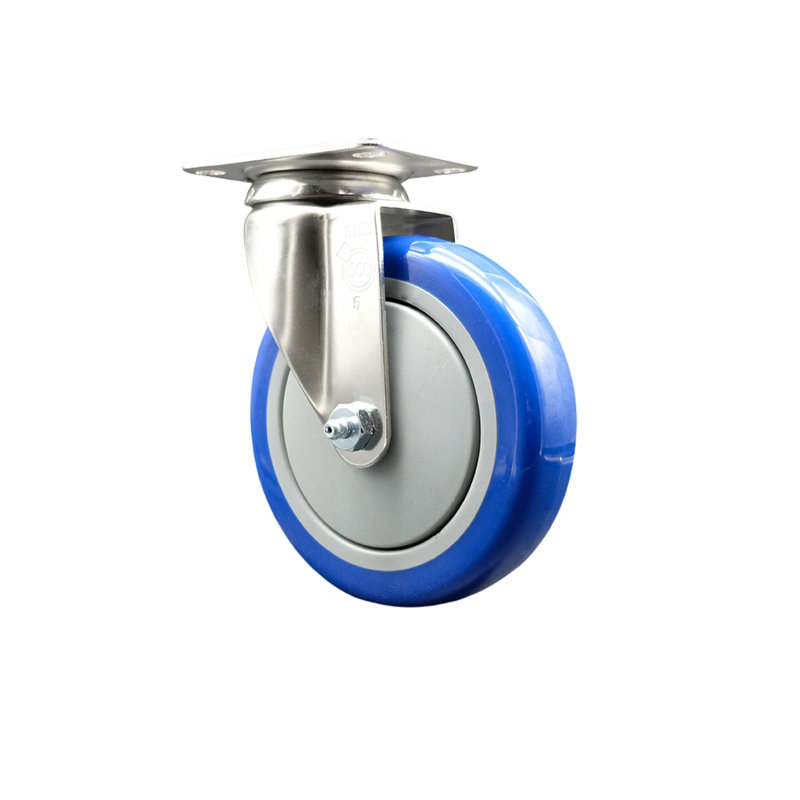

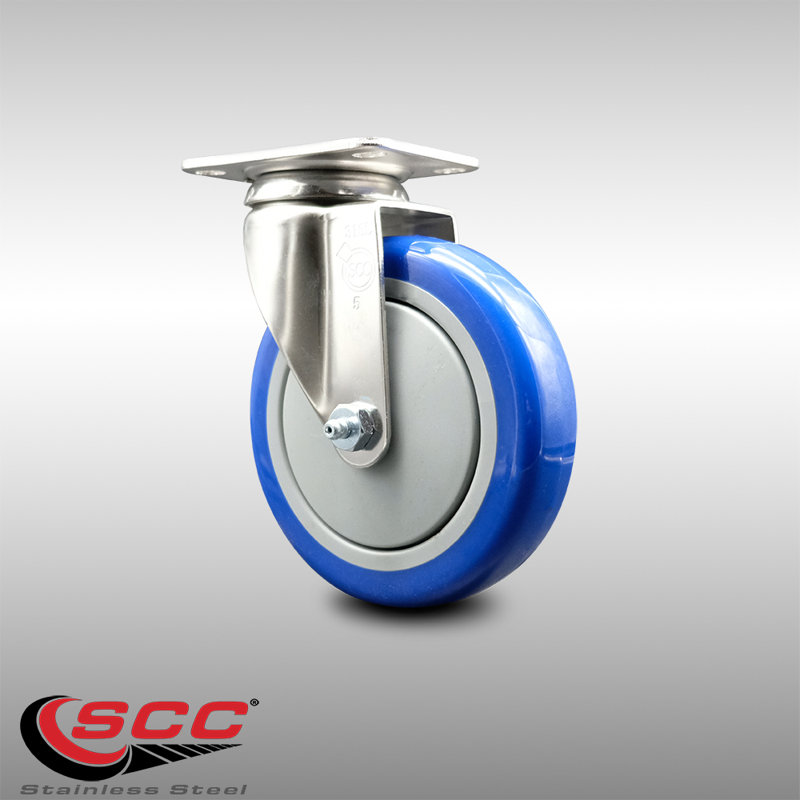

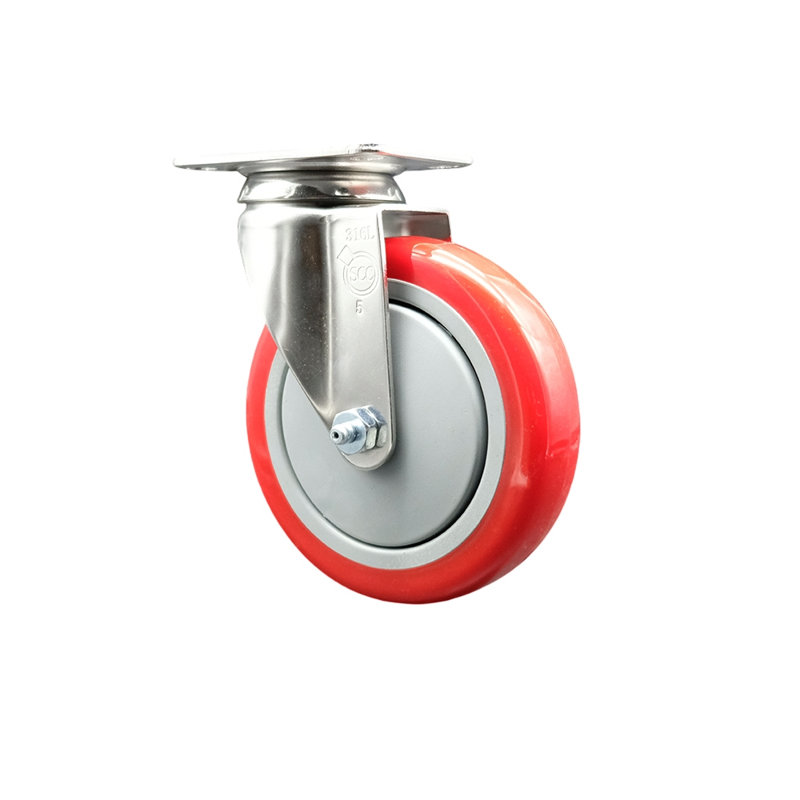

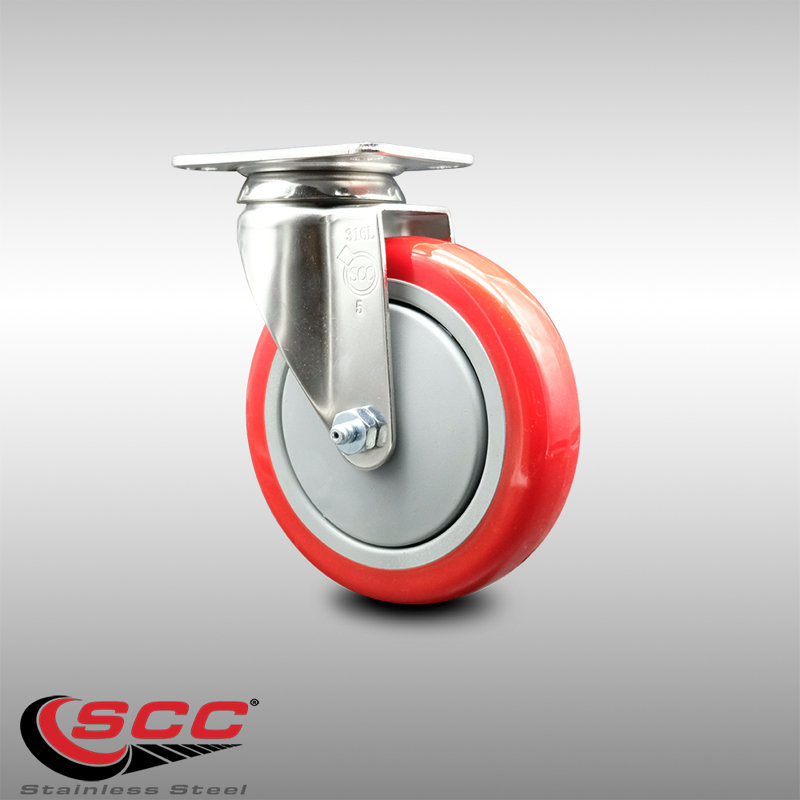

Listing is for a set of four (4) Service Caster Series #20 1-3/8" expanding stem 316 stainless steel swivel casters with 3" diameter by 1-1/4" wide solid polyurethane wheels and total locking brakes capable of supporting a total weight of 1,200 lbs. (300 lbs./caster).
Features

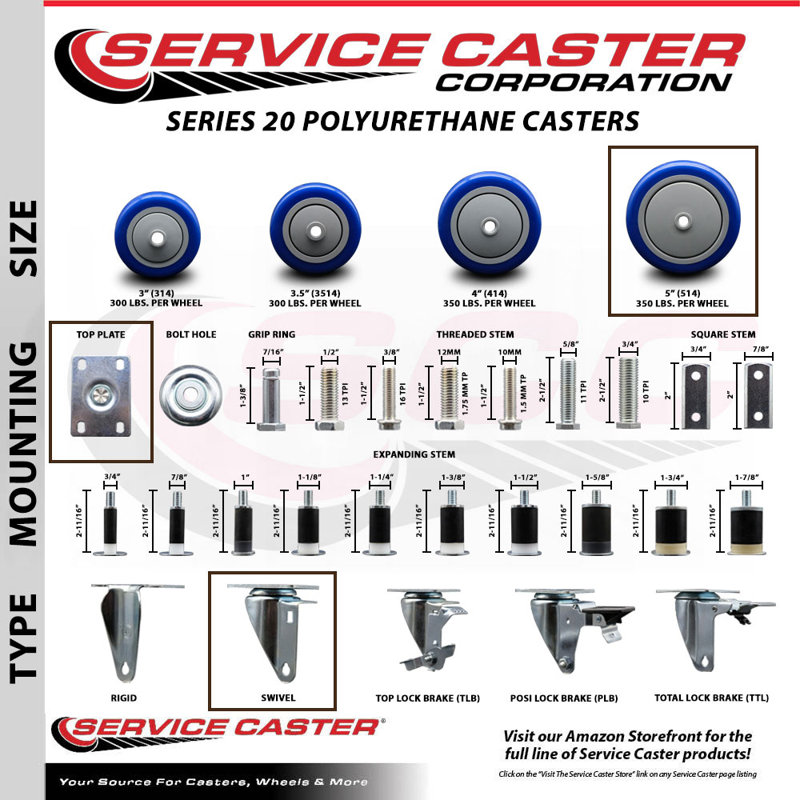

Weight Capacity: 3" and 3.5": 300 lbs Capacity/Caster; 4", 5", and 6": 350 lbs Capacity/Caster

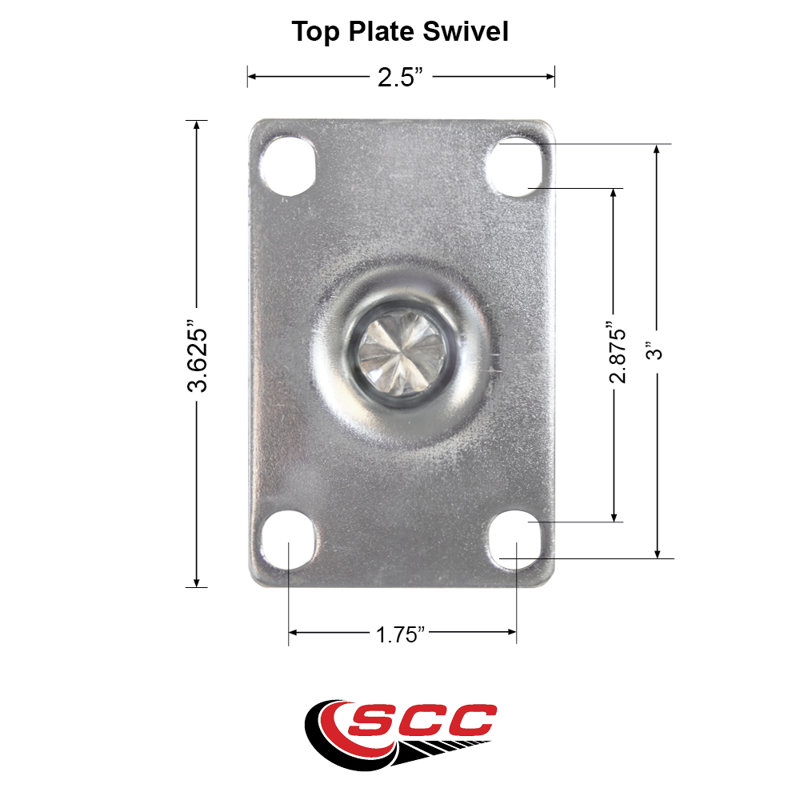

Top plate measures at 2-1/2" x 3-5/8" with a bolt hole pattern of 1-3/4" x 2-7/8" to 3" and can either be bolted or welded on.
Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.
Bolt Size: 5/16" (hardware not included)
Product Dimensions
Other Dimensions
Overall Dimensions
5'' H X 5'' W X 8'' D
Overall Product Weight
4 lb.
Details
Product Type
Casters
Material
Polyurethane Tread on Polyolefin Core
Assembly
Additional Parts Required (Not Included)
Yes
Mounting / Installation
Mounting / Installation Required
