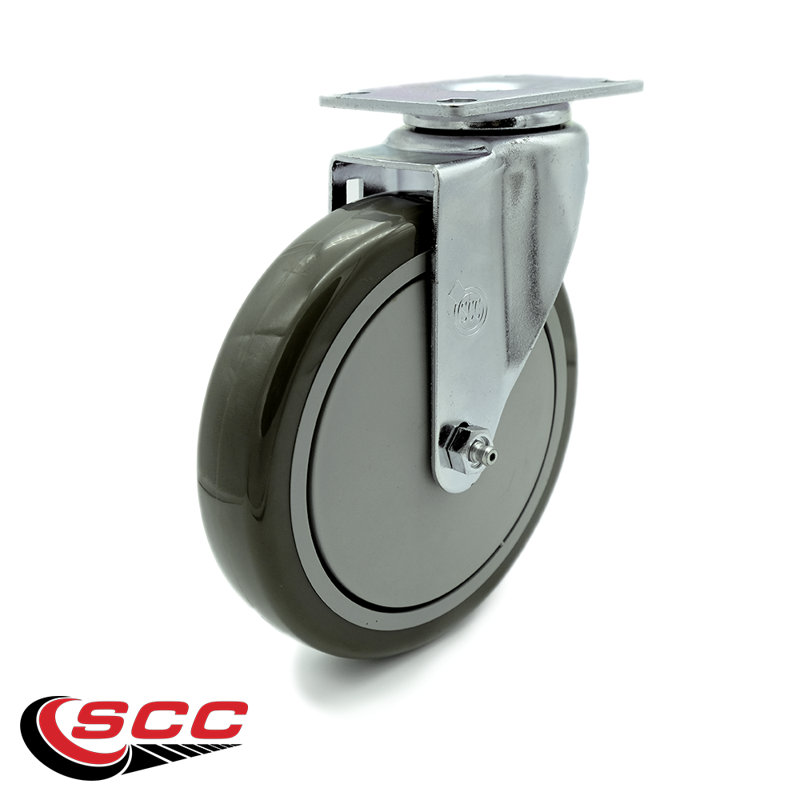

Listing is for one (1) service caster series #20 swivel caster with a 6" diameter by 1-1/4" wide gray polyurethane wheel capable of supporting 350 lbs./caster.
Features
Top plate measures at 2-1/2" x 3-5/8" with a bolt hole pattern of 1-3/4" x 2-7/8" to 3" and can either be bolted or welded on.
Brake options include a top lock brake, a total lock brake, or a posi lock brake. The top lock brake places a positive locking force against the wheel tread locking the wheel only. The total lock brake simultaneously locks the wheel and the swivel for a complete stationary position. The posi lock brake places a positive locking force against the wheel tread similar to the top lock brake, but the pedal is located above the wheel tread rather than on the side of the wheel.
Bolt size: 5/16" (hardware not included)
Product Dimensions
Other Dimensions
Overall Dimensions
8'' H X 8'' W X 8'' D
Overall Product Weight
4 lb.
Details
Product Type
Casters
Assembly
Assembly Required
No
Mounting / Installation Required
Yes
Additional Parts Required (Not Included)
Yes
