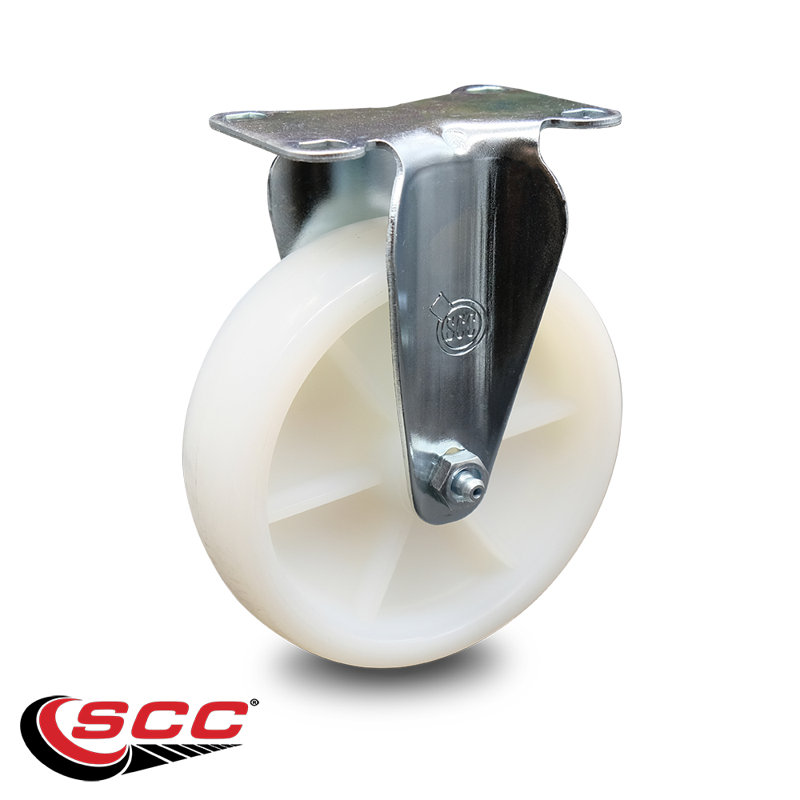

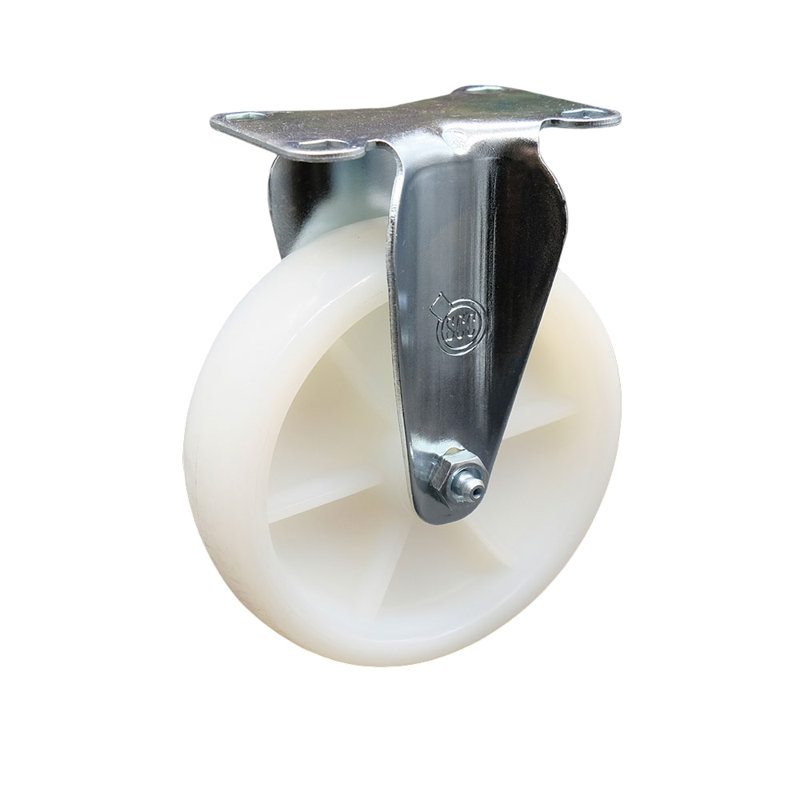

Listing is for one (1) Service Caster Series #20 rigid caster with a 5" diameter by 1-1/4" wide nylon wheel capable of supporting 300lbs./caster.
Features

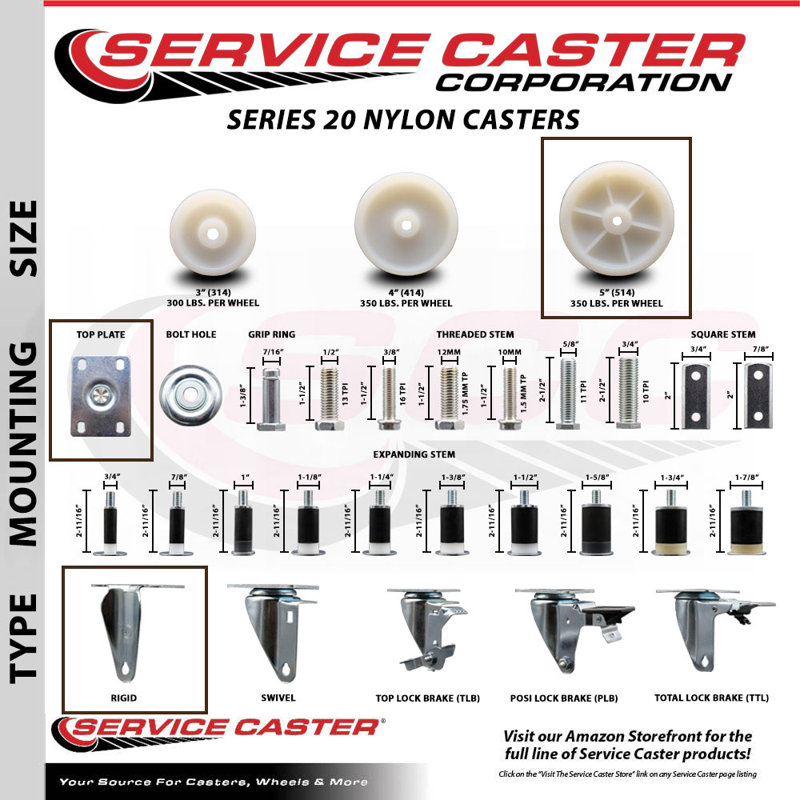

These Service Caster Series #20 Nylon casters offer various wheel sizes and mounting heights: 3” wheel: 4-1/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height.
Weight capacity: 3", 4" and 5": 300 lbs capacity/caster
Top plate measures at 2-1/2" x 3-5/8" with a bolt hole pattern of 1-3/4" x 2-7/8" to 3" and can either be bolted or welded on.
Brake options include a top lock brake, a total lock brake, or a posi lock brake. The top lock brake places a positive locking force against the wheel tread locking the wheel only. The total lock brake simultaneously locks the wheel and the swivel for a complete stationary position. The posi lock brake places a positive locking force against the wheel tread similar to the top lock brake, but the pedal is located above the wheel tread rather than on the side of the wheel.
Bolt size: 5/16" (hardware not included)
Product Dimensions
Other Dimensions
Overall Dimensions
5'' H X 5'' W X 5'' D
Overall Product Weight
1.35 lb.
Details
Product Type
Casters
Material
Nylon
Assembly
Assembly Required
No
Mounting / Installation Required
Yes
Additional Parts Required (Not Included)
Yes
