Name: Filled Caster
Brand: Service Caster
SKU: SRVJ6923
Price: 499.99 USD
Availability: InStock

About This Product

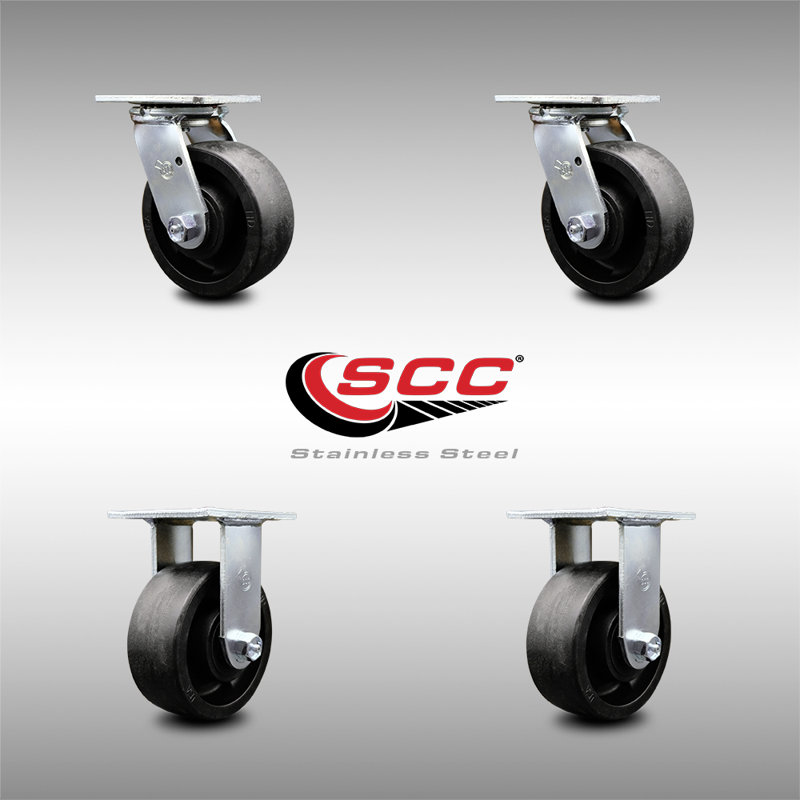

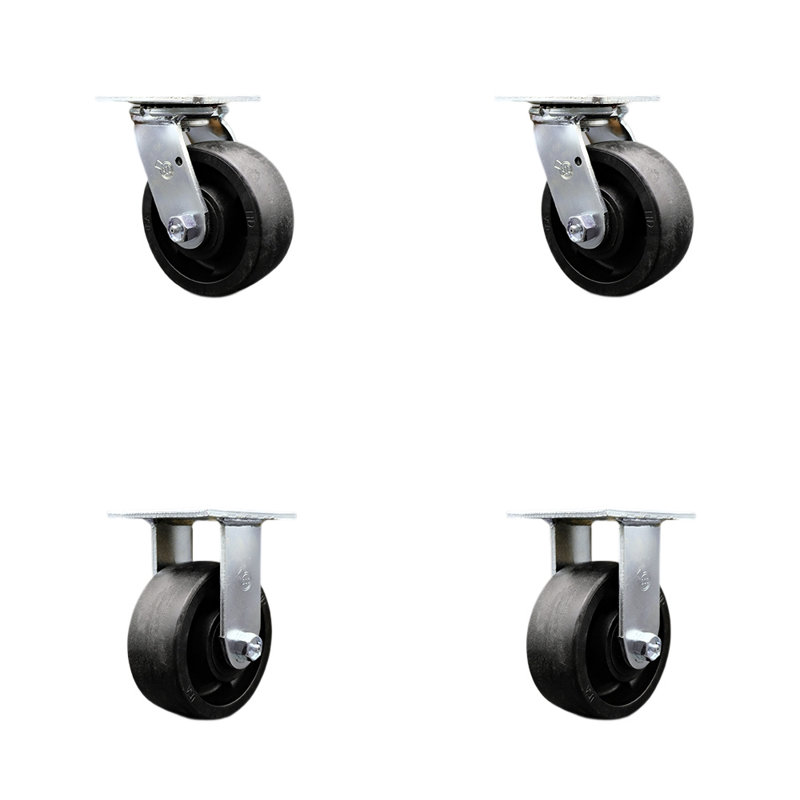

Listing is for a set of four (4) Service Caster Series #30 stainless steel casters, two (2) swivel and two (2) rigid casters, with 5" diameter by 2" wide glass filled nylon wheel and maintenance free precision ball wheel bearings capable of supporting a total weight of 5,000 lbs. (1,250 lbs./caster).

Features

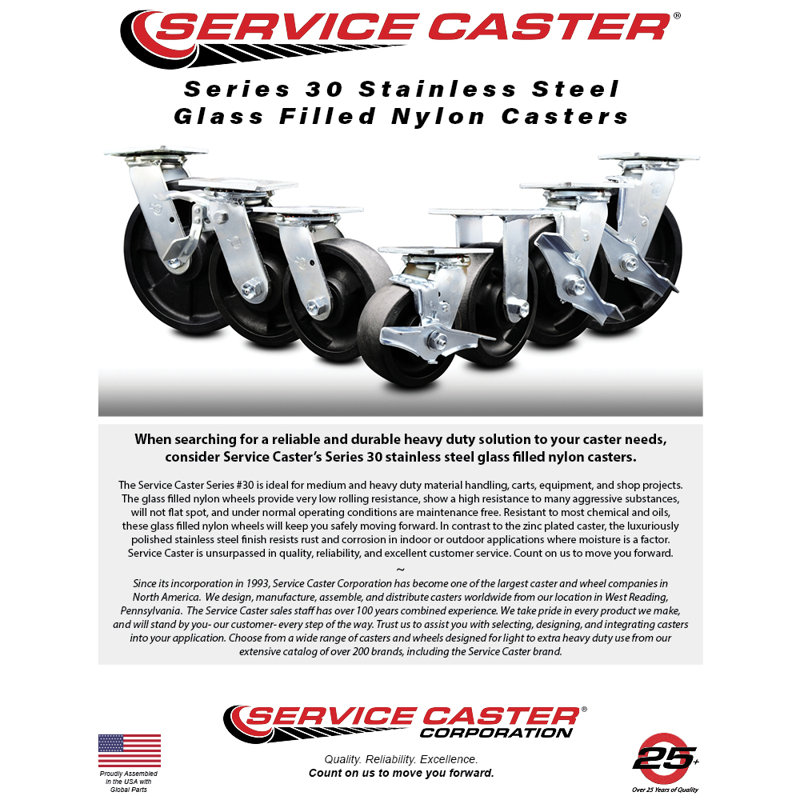

These Service Caster Series #30 Glass Filled Nylon casters offer various wheel sizes and mounting heights: 4” wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8” wheel: 9-1/2” mounting height.
Weight Capacity: 4": 1250 lbs Capacity/Caster, 5": 1250 lbs Capacity/Caster, 6": 1250 lbs. Capacity/Caster, and 8": 1250 lbs Capacity/Caster
Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on.
Brake options include a top lock brake (TLB), a total lock brake (TTL), or a side lock brake (SLB). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The side lock brake (SLB) places a positive locking force against the wheel hub locking the wheel only. The total lock brake (TTL) places a positive locking force against the wheel tread and the swivel simultaneously locking the wheel and the swivel for a complete stationary position.
