Cast Iron Caster

Features

• These Service Caster Series #30 Polyurethane on Cast Iron casters offer various wheel sizes and mounting heights: 3-1/4” Wheel: 4-1/4” mounting height; 4” wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8” wheel: 9-1/2” mounting height.
• Weight Capacity: 3.25": 600 lbs Capacity/Caster, 4": 700 lbs Capacity/Caster, 5": 1000 lbs Capacity/Caster, 6": 1200 lbs. Capacity/Caster, and 8": 1250 lbs Capacity/Caster
• All-wheel sizes have a 3/4" axle bore and a 3-1/2" hub length. When the spanner bushing is removed, all-wheel sizes can be used on a 1" axle. Please keep in mind, the hub length is the widest point of the wheel, so it is important to ensure you can accommodate this width before purchasing.

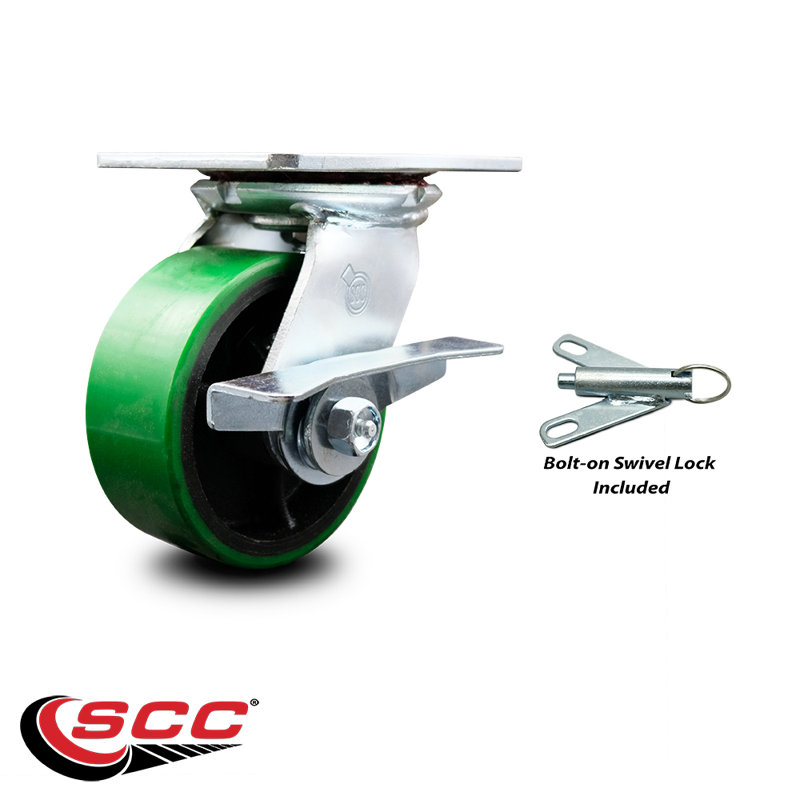

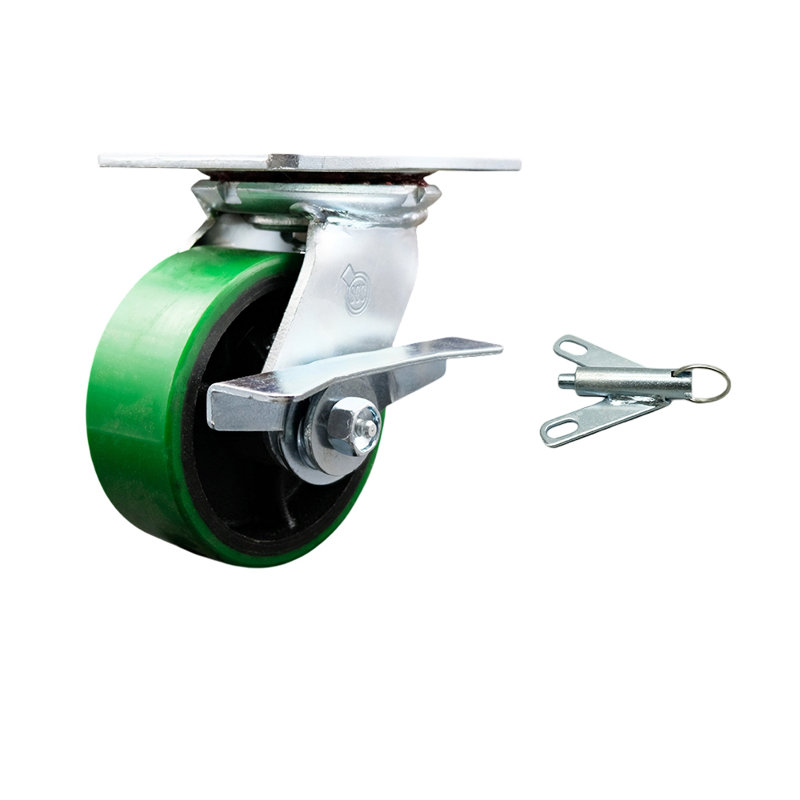

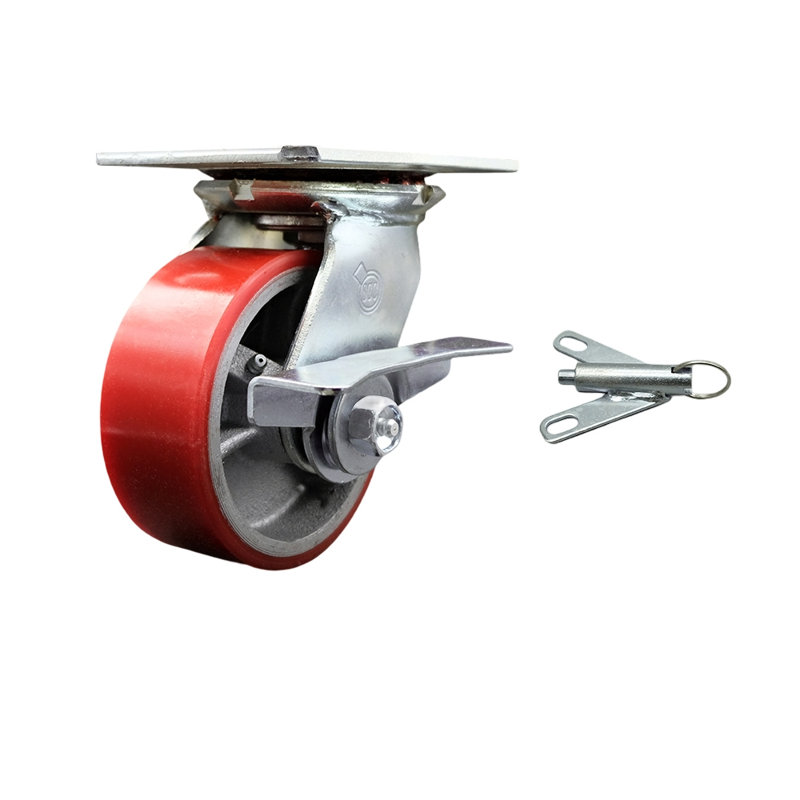

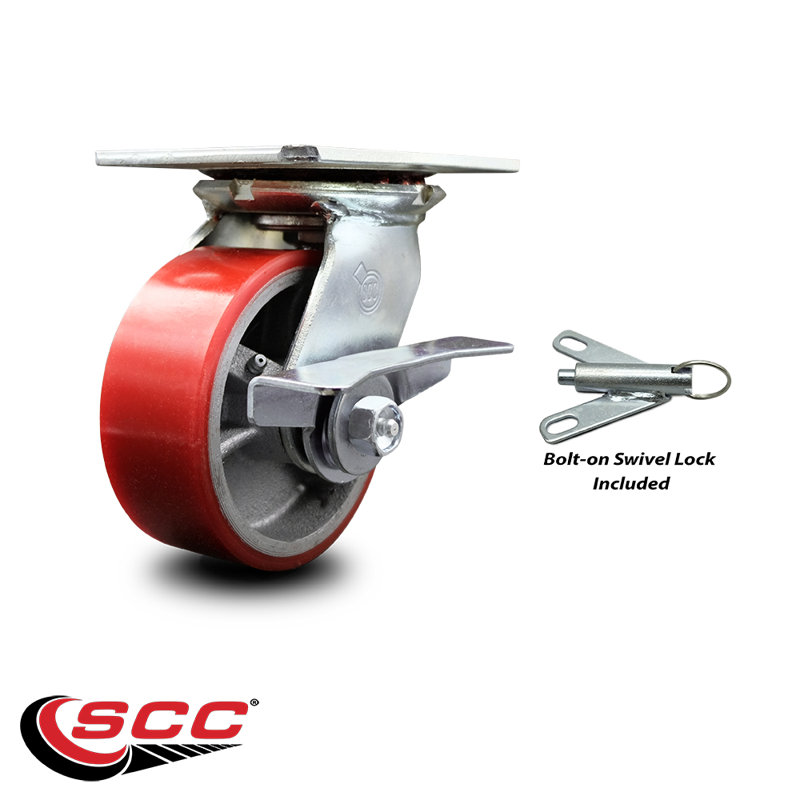

• Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90-degree angle. Combining both brake types ensures complete immobility over both the swivel and wheel on the caster.
• Bolt Size: 1/2" (hardware not included)
