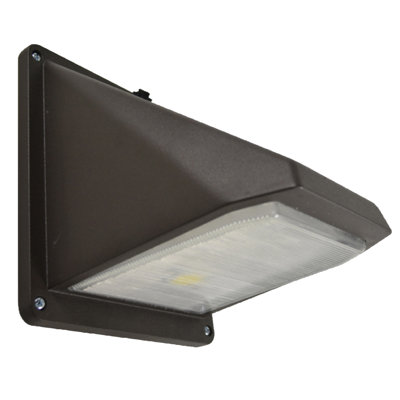

Precision Forward Light with Optional Uplight
Equipped with full cutoff Type III optics, this wall pack projects clean, forward focused light with no uplight or side spill. When you need to highlight signage, wall numbers, or architectural details, flip the independent uplight switch to add targeted illumination without extra fixtures or rewiring.
On Site Wattage and Color Control
Set the output and tone on site with four wattage options (120W/100W/90W/60W) and three color temperatures (3000K/4000K/5000K). Simple onboard switches let you match brightness and color to the job in seconds, eliminating guesswork and returns.
Weather Ready for Every U.S. Region
IP65 rated and sealed against rain, dust, and debris, the fixture features a UV resistant powder coating and anti corrosion aluminum housing. It stands up to coastal humidity, desert heat, northern snow, and other harsh conditions without rust or leaks.
Standard Footprint for Quick Installation
The 13 inch housing and standard 4 inch mounting ring fit most existing wall pack footprints. Mounting is fast and clean — match the screw points, hang the unit, and tighten — reducing labor, avoiding wall patching, and minimizing callbacks.
Durable Performance and Ongoing Support
Built for long term service and rated for 50,000 hours, this wall pack comes with a 3-year U.S. based guarantee and responsive technical support to help ensure dependable operation and smooth installs.
Specifications
Wattage: 120W/100W/90W/60W
Voltage: AC 120-277V
Luminous flux: 18000lm/15000lm/13500lm/9000lm
CRI: 80+
Lifespan: 50,000 hrs
Beam angle: Upward 110°, Downward 100°
CCT: 3000K/4000K/5000K
Dimmable: 0-10V (0%-100%)
Waterproof rating: IP65
Working temp: -40°F-122°F
Material: Die-cast aluminum
