At a Glance

IC Rated for Insulated Ceilings

Trim Size: 6 ''

Built-in LED Light

Dry, Damp or Wet Location Rated: Wet

About This Product

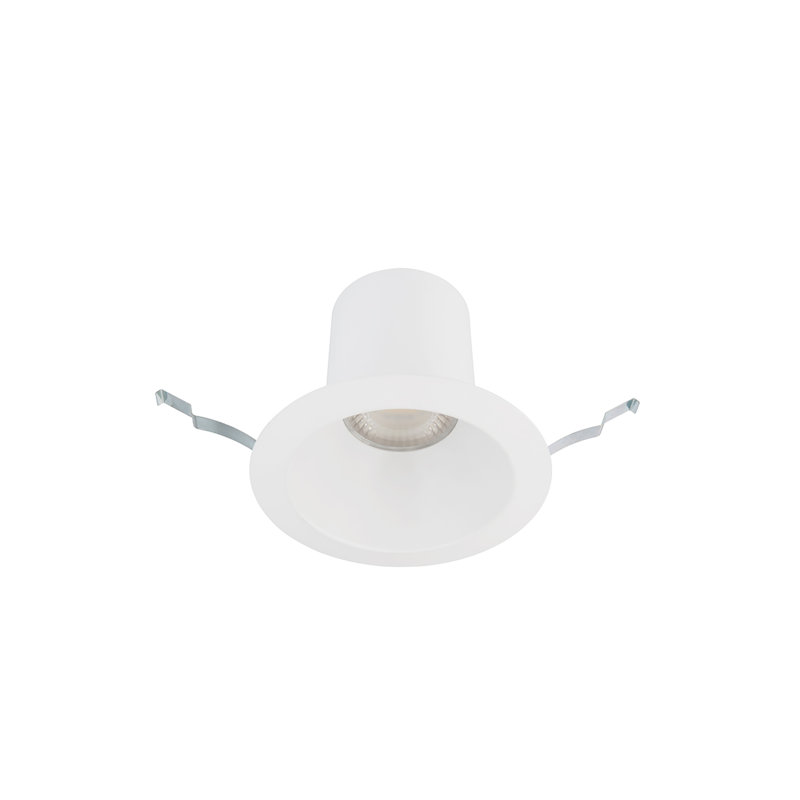

Blaze is a powerful high efficiency 6in recessed downlight with an easy connect electrical box for simple installation. The universal input driver (120v-240v-277v) is fully concealed inside the electrical box and dimmable to 5% using a TRIAC or ELV dimmer. Features a 5-CCT color temperature selectable switch with options ranging from 2700K-3000K-3500K-4000K-5000K. Blaze is available in round or square as new construction or remodel with all options IC-Rated and Airtight. A frame-in kit is included with the new construction version, but can also be purchased separately (R6DRDN-FRAME). Wet location listing for indoor and outdoor applications or in showers.

Features

Construction: Die-cast Aluminum with 20-gauge Cold Rolled Steel Driver Box. Blaze is available in round or square as new construction or remodel with all options IC-Rated and Airtight. A frame-in kit is included with the new construction version, but can also be purchased separately (R6DRDN-FRAME).
Metal Conduit with Quick Connect to electrical box with driver allows for an easy installation.
Installs into ceiling thickness between 0.5in and 1.5in. Universal input driver 120V-220V-277V.
Smooth and continuous dimming with an electronic low voltage (ELV) or TRIAC dimmer. Dims down 10% with ELV dimmers, and 5% with TRIAC dimmers.
High Powered Replaceable LED Module CRI: 90, Rated Hours: 50000, 5-CCT Selectable Color Temperature Range: 2700K, 3000K, 3500K, 4000K, 5000K.

Details

Product Type: Standard Kit
Total Number of Pieces Included: 1
Construction Type: New Construction
Insulation Type: IC Rated for Insulated Ceilings
Trim Shape: Circle
Trim Style: Shower
Dry, Damp or Wet Location Rated: Wet
What is Dry, Damp or Wet Location Rated?: This indicates whether the fixture is safe to use in dry locations, damp locations (moist environments), or wet locations (direct exposure to water).
Material: Metal
Housing Required: Yes
Transformer Required: No
Maximum Wattage (Per Bulb): 25 Watt
What is Integrated LED?: This indicates that an LED light is built into the fixture. Integrated LED lights are more energy efficient and can last up to 50,000 hours. They cannot be replaced by the customer.
Number of Lights: 1
Voltage: 277 Volt
Color Temperature Options: 4000K, 2700K, 3000K, 3500K, 5000K
Wattage: 25 Watt
Pieces Included: Housing
Bulb / Light Type: Integrated LED
Minimum Color Temperature: 2,700K
Maximum Color Temperature: 5,000K
Integrated LED Color Rendering Index (CRI): 90
Brightness (Lumens): 2,130lm
General Features: Airtight
Built-In Features: Dimmable
Bulb Features: Selectable
Location: Indoor / Outdoor
