At a Glance

IC Rated for Insulated Ceilings

Trim Size: 3 ''

Built-in LED Light

Dry, Damp or Wet Location Rated: Wet

About This Product

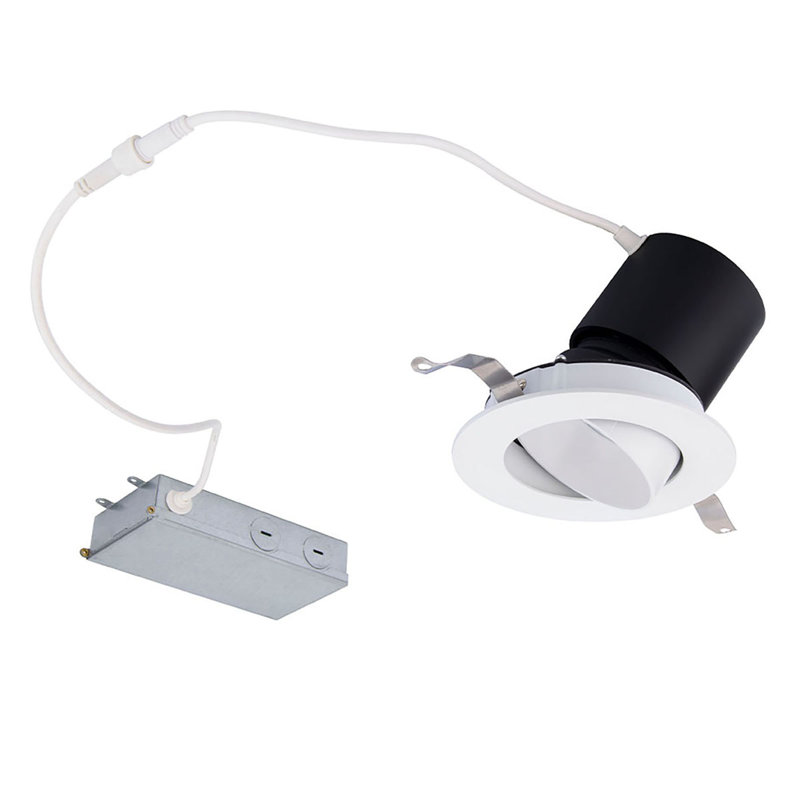

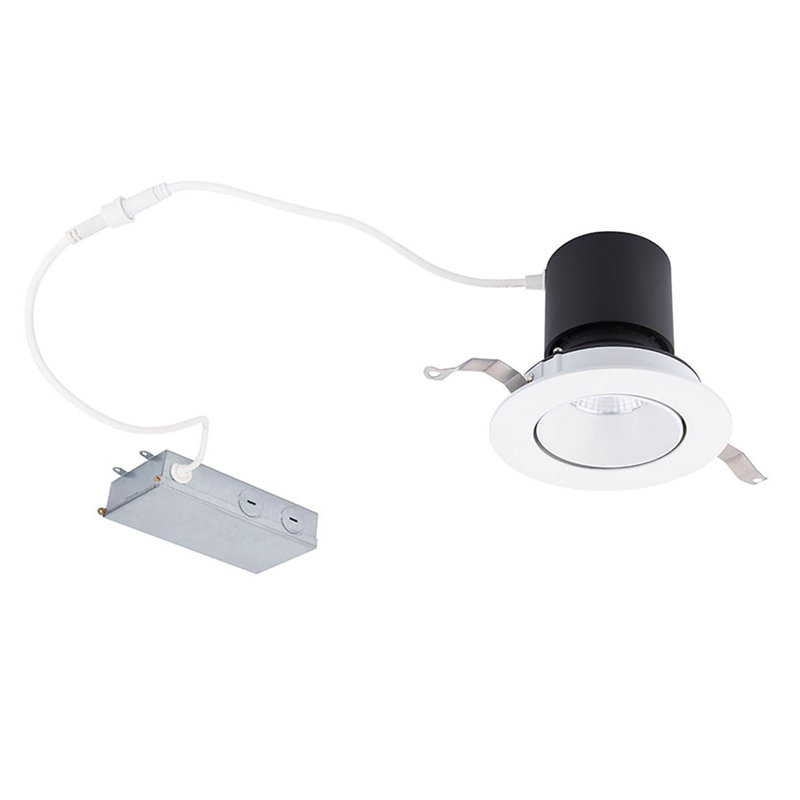

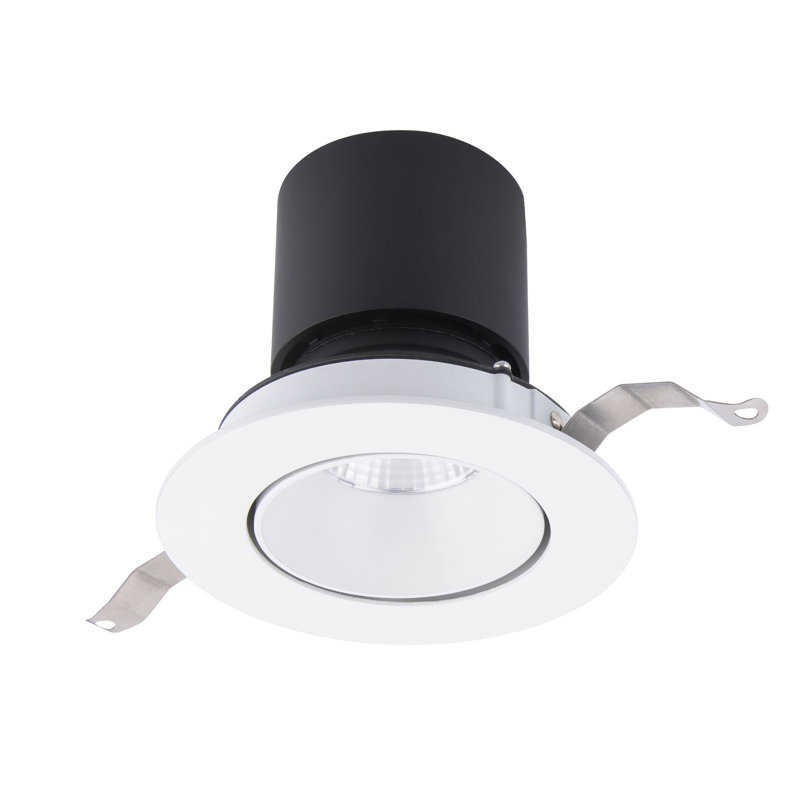

Minimum profile downlight with driver and electrical connection box attached for easy remodel or new construction installation. on-board 5-CCT selectable switch allows you to toggle between different color temperatures to find the perfect setting for your space. Change between 2700K Warm - 3000K Warm White - 3500K White - 4000K Cool White - 5000K Natural White all at the flick of a switch. The color temperature selectable switch can be accessed during, before, and after installation - it is safely concealed inside the electrical box of the fixture.

Features

Construction: Die-cast aluminum with frosted TIR lens. Available in Round or Square trim with adjustable or straght downlight options. 45 degree flood beam spread lens can be removed to convert into a 25 degree narrow beam spread.
Optional frame-in kit sold separately (R3H-FRAME) for new construction applications when pre-framing is required. Patriot can be installed in remodel and new contruction applications.

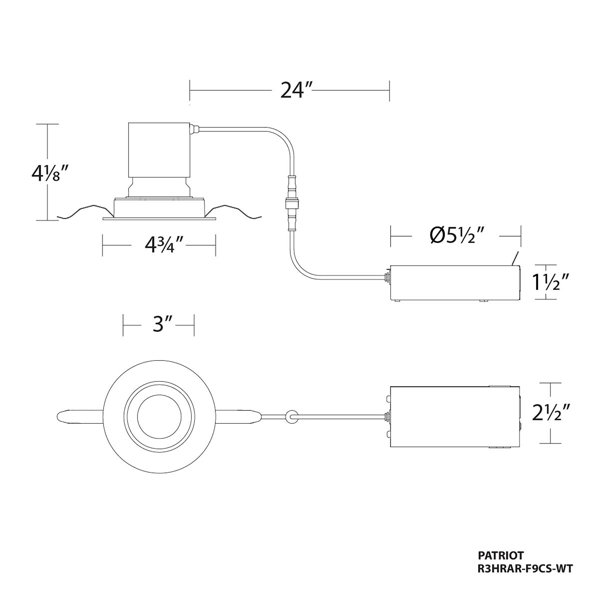

Installs into ceiling thickness between 0.5in and 1.5in. Universal input driver 120V-220V-277V. Electrical wiring box includes 24in of wire with twist-lock connector to detach from light engine for ease of service.
Smooth and continuous dimming with an electronic low voltage (ELV) or TRIAC dimmer.
High Powered LED's up to 1080 Lumens for 50,000 hours and a 5-CCT selectable switch that allows you to toggle between 2700K Warm - 3000K Warm White - 3500K White - 4000K Cool White - 5000K Natural White all at the flick of a switch.
Standards: ETL & cETL Wet location listed in the USA and Canada. Energy Star 2.0 Certified, and Title 24 JA8-2016.
Items may contain traces of chemicals from Prop 65 list. Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

Product Type: Standard Kit
Total Number of Pieces Included: 1
Construction Type: Remodel
Insulation Type: IC Rated for Insulated Ceilings
Trim Shape: Circle
Trim Style: Adjustable
Dry, Damp or Wet Location Rated: Wet
What is Dry, Damp or Wet Location Rated?: This indicates whether the fixture is safe to use in dry locations, damp locations (moist environments), or wet locations (direct exposure to water).
Material: Metal
Transformer Required: Yes
Maximum Wattage (Per Bulb): 12 Watt
What is Integrated LED?: This indicates that an LED light is built into the fixture. Integrated LED lights are more energy efficient and can last up to 50,000 hours. They cannot be replaced by the customer.
Number of Lights: 1
Voltage: 277 Volt
Color Temperature Options: 4000K, 2700K, 3000K, 3500K, 5000K
Wattage: 12 Watt
Pieces Included: Transformer
Bulb / Light Type: Integrated LED
Minimum Color Temperature: 2,700K
Maximum Color Temperature: 5,000K
Integrated LED Color Rendering Index (CRI): 90
Brightness (Lumens): 1,100lm
General Features: Airtight
Built-In Features: Dimmable, Adjustable Light Beam
Bulb Features: Selectable
Location: Indoor / Outdoor
Compatible With: Sloped Ceiling

At a Glance

3 in. 12 W Dimmable Standard Kit R3HRAR-F9CS-WT
