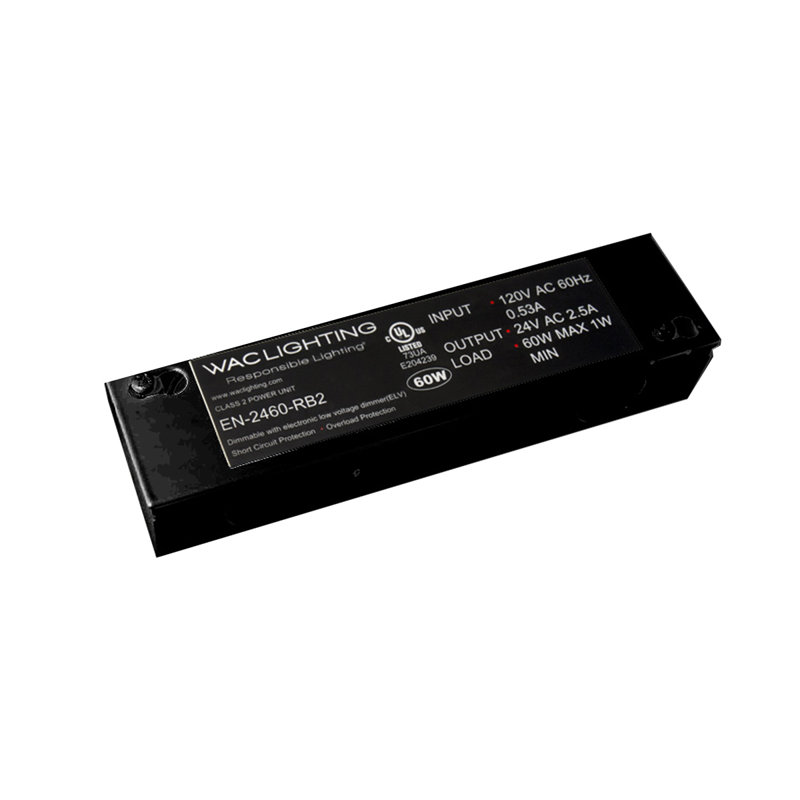

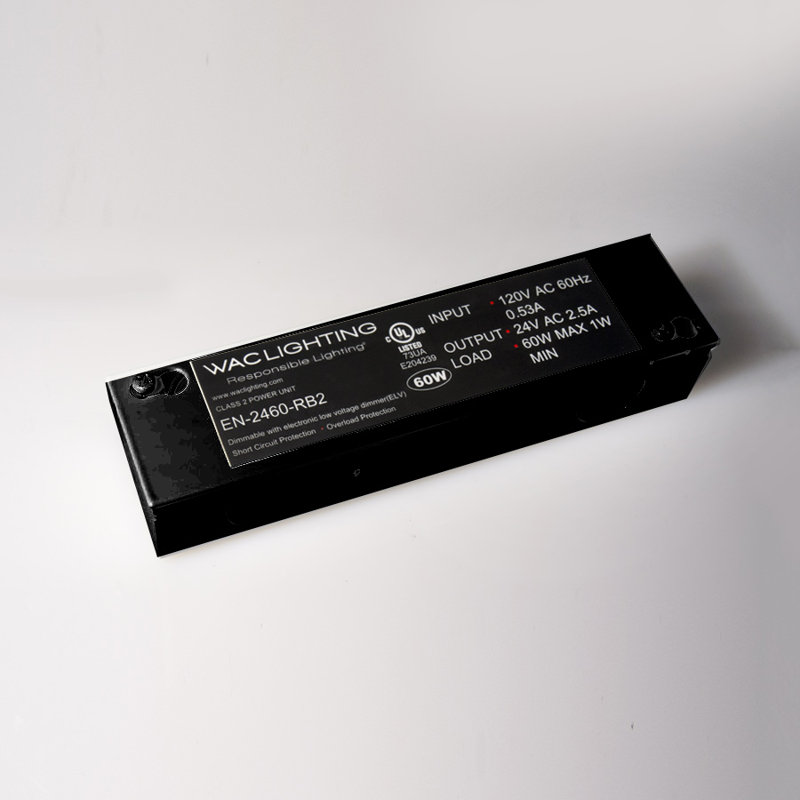

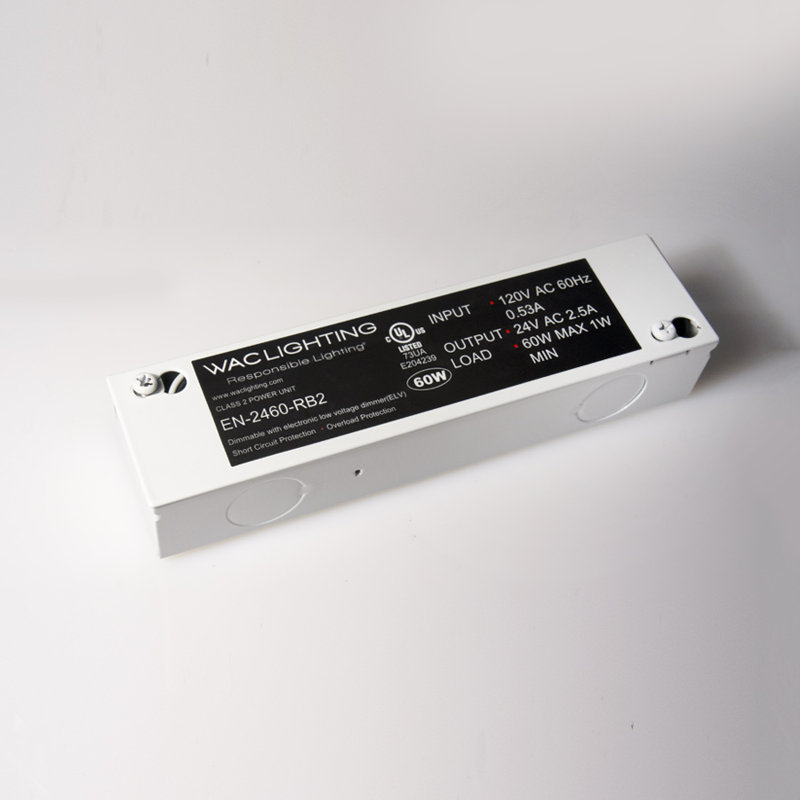

WAC Lighting Class 24V Electronic Transformer & Reviews

About This Product

This class 2, UL & cUL listed enclosed electronic transformer is the perfect solution for wiring multiple low voltage fixtures. Class 2 transformers are intrinsically safer transformers because they are compartmentalized to allow no greater than 5 amps of current to be drawn on each compartment. Enclosure cover is easy to remove. The transformer has knockouts on three sides with clips for line voltage wiring. Secondary wiring for class 2 transformers does not require conduit sheathed cable or clamp wiring techniques. This transformer has a low minimum load requirement of 1W to allow the use of LED products. Maybe dimmed using an electronic low voltage dimmer.

Features

Minimizes wiring back to the transformer
No voltage drop, power supplied using a variable current
If one fixture goes out the rest remain on
Input: 120 VAC, 50/60Hz
The non-metallic sheathed cable may be used for secondary wiring in walls and ceilings
Drop down to a smaller gauge wire if space in fixture does not permit secure connection directly with the non-metallic sheathed cable

Details

Power Source: Hardwired
Product Type: Electronic
Compatible Lighting: Undercabinet Lighting
Location: Remote Mount
Current Type: AC (Alternating Current)
Voltage Input: 120
Plug-In: No
Material: Metal
LED Compatible: Yes
Dusk to Dawn: No
Dimmable: Yes
Voltage: 24 Volt
Imported: Yes
Dry, Damp or Wet Location Rated: Damp
Built-In Features: Dimmable
Compatible With: LED

Warranty

Commercial Warranty: Yes
Product Warranty: Yes
Warranty Length: 5 Years
Full or Limited Warranty: Limited
Warranty Details 2: Warrants to the first non-dealer purchaser of any of its products that they are to be free from defects in material and workmanship for a period of five (5) years from the date of purchase for all indoor products.
