F-30301 120W 12V Magnetic Transformer
See More by LEDVANS
Product Overview
Dusk to Dawn Sensor
The inclusion of a photocell sensor in this transformer ensures that the landscape lights connected to it will automatically switch on at sunset and off at sunrise. This eliminates the need for daily control and allows you to enjoy worry-free lighting. Additionally, when you are away, the lights can create the illusion of someone being at home, enhancing security measures. IP65 waterproof rating lets this outdoor landscape lighting transformer have better performance in harsh weather. ETL and UL listed product make your life safer. Come with 24-month warranty for your benefit
2H/4H/6H/8H Countdown Timer
With this transformer, you have the option to set a countdown timer for your low voltage lighting to automatically turn off at night. This allows you to customize the duration based on your specific requirements. To simplify the setup process, we suggest connecting all the landscaping lights that need to be turned off simultaneously to the same transformer.

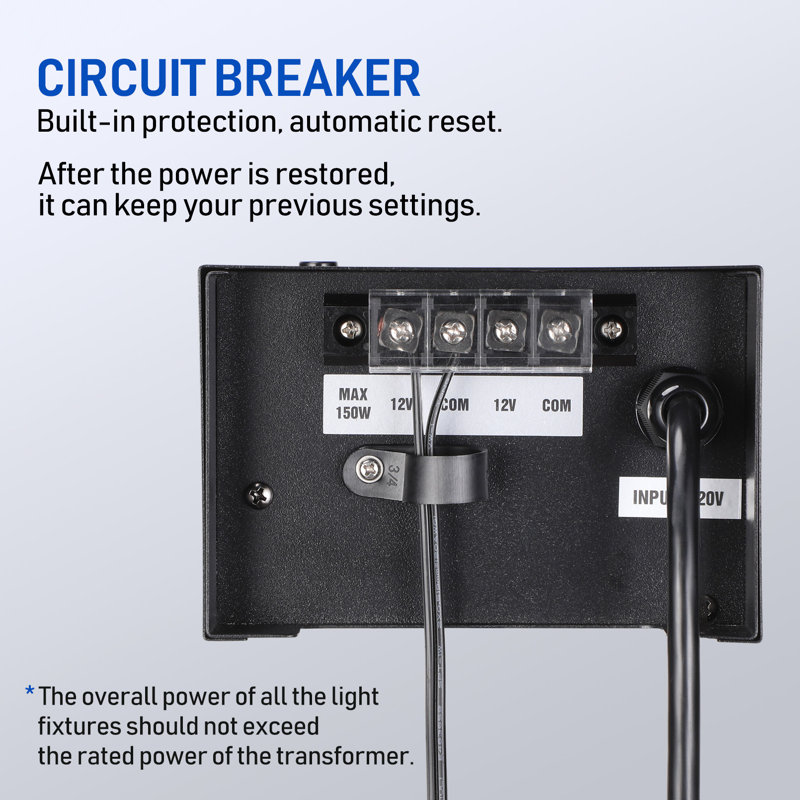

Automatic Overload Circuit Breaker
In the event that the LED display is off but the utility voltage is still present, it indicates a significant overload on the transformer. To prevent any potential damage, the automatic overload circuit breaker will automatically shut off the low voltage output of the power unit if the circuit becomes overloaded with too many fixtures. This feature ensures the safety and proper functioning of the transformer and connected fixtures. In the event that the power to the transformer is cut off, you can rest assured that your last setting will be remembered. This means that when you turn the power back on, the transformer will retain and restore your previous setting instead of resetting it. This convenient memory function allows for a hassle-free experience without the need to reconfigure the settings every time the power is interrupted.
NOTE
1.Avoid blocking the photocell light sensor as it may affect the photocell for the dusk-to-dawn mode.
2.Ensure that the transformer's photocell is not installed too close to a nighttime light, as it may interfere with its proper operation.
3.Be sure that the total cumulative wattage of all 12 volt fixtures connected to one transformer is equal to or less than 96 watts (80% of 120W).
4.For use with 12 volt low voltage outdoor landscape lighting system only.
5.Do not use with a dimmer.
6.Outdoor use only.
Specifications
Wattage: 120W
Input Voltage: 120V AC 60Hz
Output Voltage: 12V AC
Countdown Timer: 2H/4H/6H/8H
Waterproof Rating: IP65
Working Temperature: -4°F-104°F
Features
- A transformer that converts 120W of power from 120V AC to 12V AC
- A sensor that detects and responds to changes in ambient light levels
- A timer that allows you to set countdown durations of 2 hours, 4 hours, 6 hours, or 8 hours
- Suitable for outdoor applications
- ETL Listed, 2-year warranty
