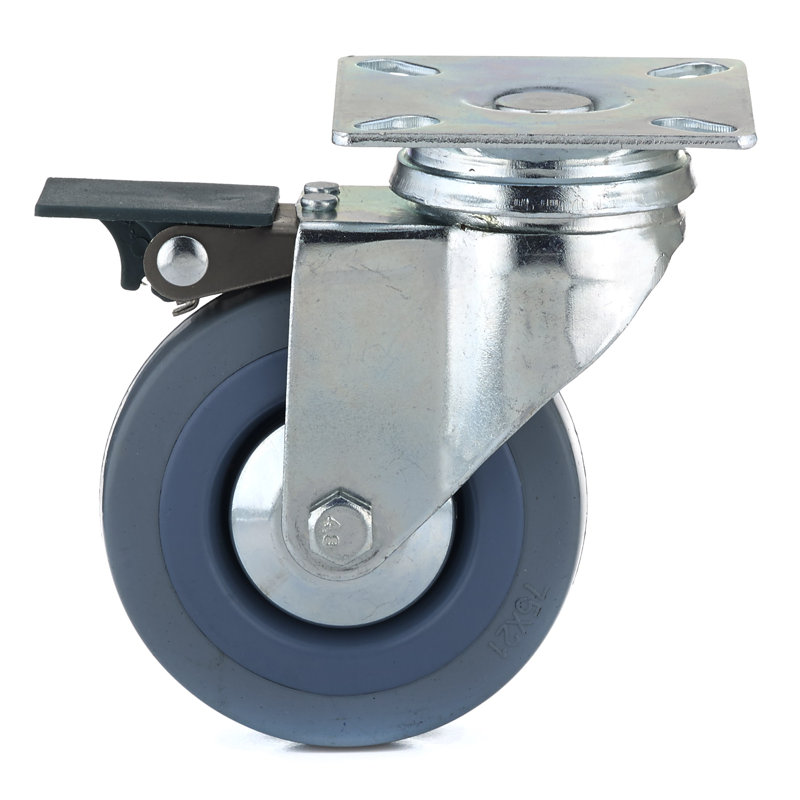

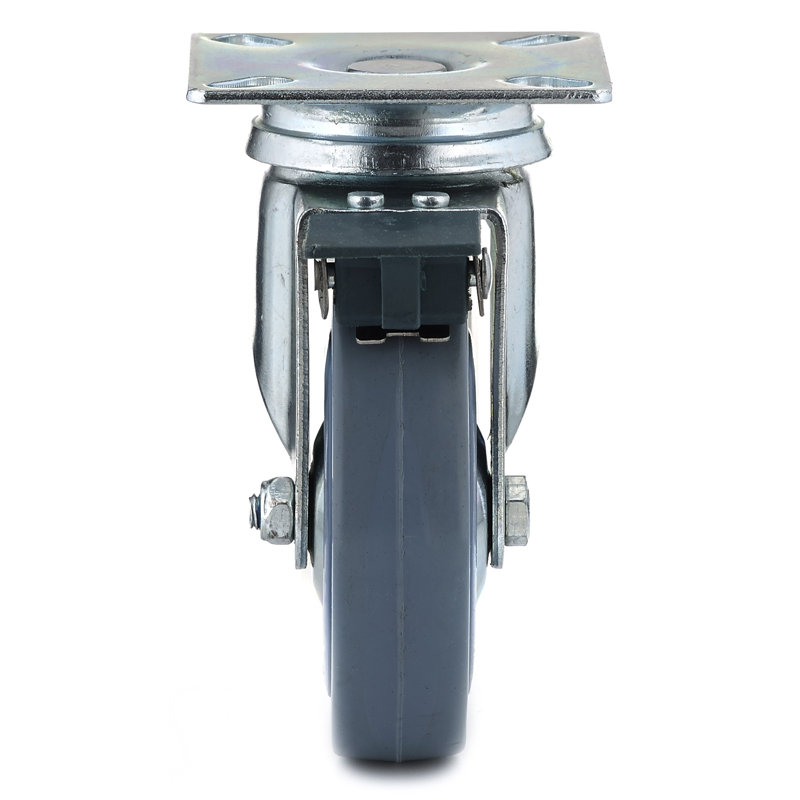

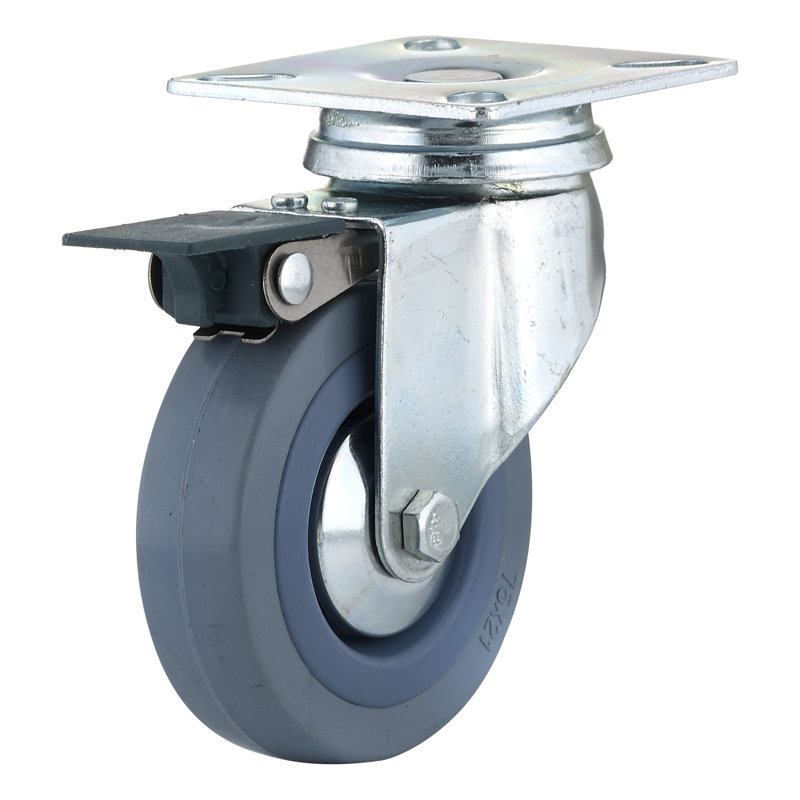

Industrial Rubber Caster

Features

• Finish: Gray
• Metal thread guards
• Corrosion-resistant zinc finish
• Mounting type: Plate
• Mounting plate included
• Fastening type: Swivel with brake
• Non-marking rubber tread
• 2.88" H Caster load capacity: 88.2 lbs
• 4.06" H Caster Load capacity: 132 lbs
• 2 independent rows of hardened polished precision ball bearings roll freely in large-diameter lubricated raceways.
• Can resist: Water, solvents, detergent, extreme heat, and petroleum products
• Recommended Surfaces: Carpet, concrete, hardwood, laminate, steel, tile, ceramic, linoleum, wood, and planking
• 2.88" H Caster mounting plate dimension: 2.125'' x 2.125''
• 2.88" H Caster mounting hole diameter: 0.25"
• 2.88" H Caster mounting hole spacing: 1.38" x 1.38"
• 2.88" H Caster swivel radius: 2.5''
• 2.88" H Caster offset distance: 0.75"
• 2.88" H Caster wheel diameter: 0.97"
• 2.88" H Caster bandwidth: 0.91"
• 2.88" H Caster axle diameter: 0.25"
• 2.88" H Caster axle length: 1.03"
• 4.06" H Caster mounting plate dimension: 2.5'' x 2.5''
• 4.06" H Caster mounting hole diameter: 0.25"
• 4.06" H Caster mounting hole spacing: 1.75" x 1.75"
• 4.06" H Caster swivel radius: 3.88''
• 4.06" H Caster offset distance: 1.38''
• 4.06" H Caster wheel diameter: 4.91"
• 4.06" H Caster bandwidth: 1.47"
• 4.06" H Caster axle diameter: 0.75"
• 4.06" H Caster axle length:0.81"
