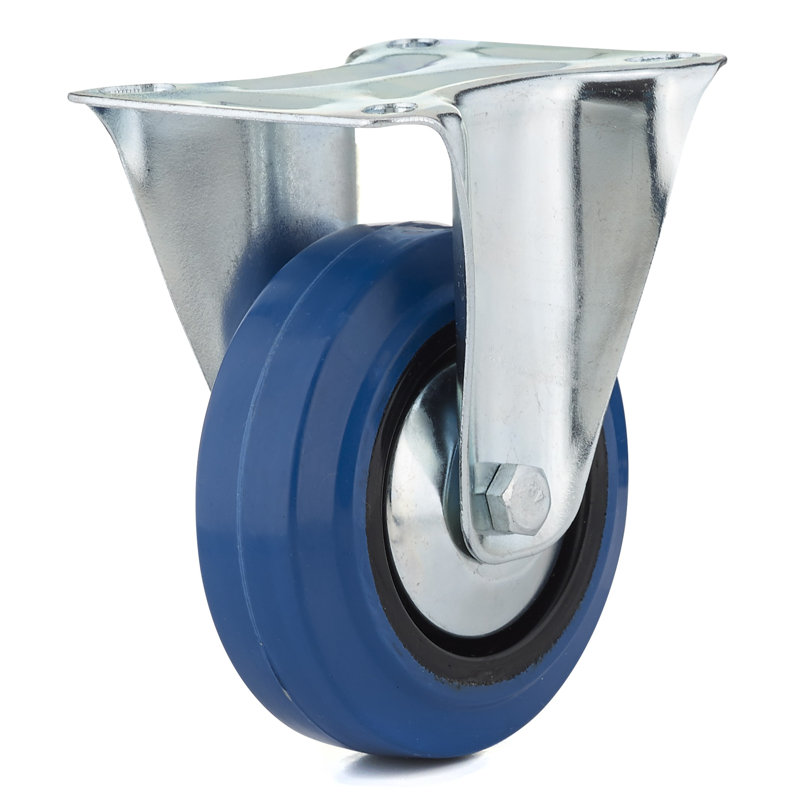

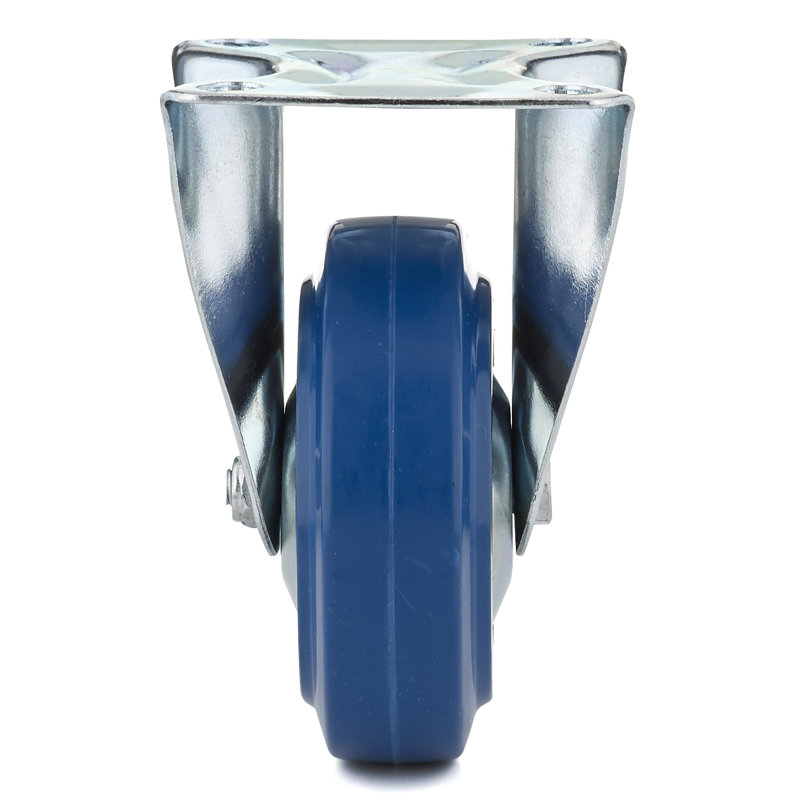

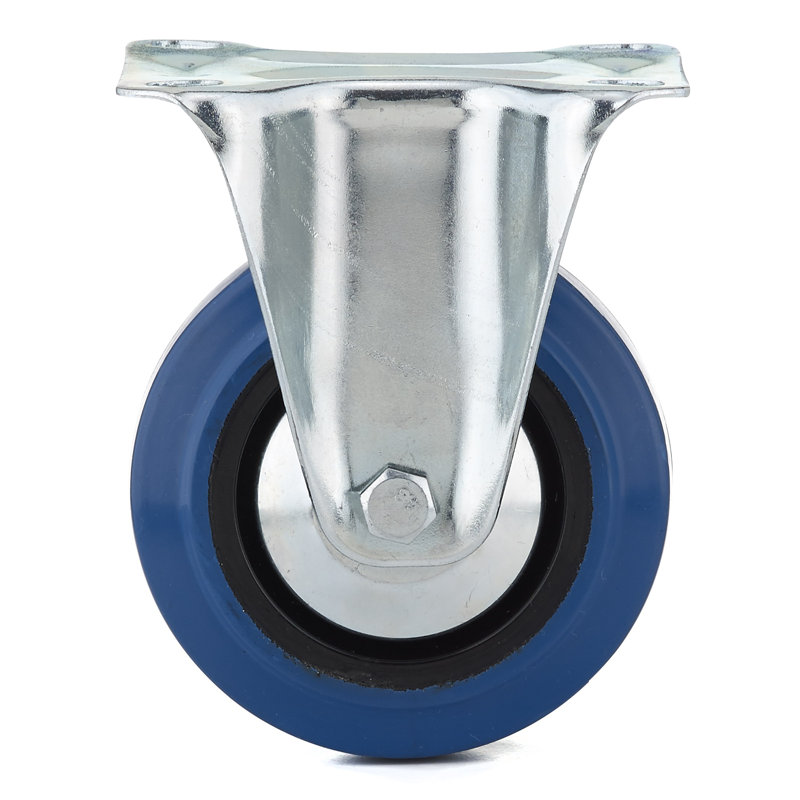

Industrial Elastic Rubber Caster

Features

• Material: Elastic rubber
• Finish: Blue
• Metal thread guards
• Corrosion-resistant zinc finish
• Mounting type: Plate
• Mounting plate included
• Fastening type: Fixed
• Grease seal to hold in lubricant
• Non-marking rubber tread
• Double-lock braking system for both the wheel and the swivel (F8336,F8339 and F24800)
• Low starting effort, rolls easily; tread does not flat-spot
• 5.13" H Caster load capacity: 154.3 lbs
• 6.09" H Caster load capacity: 220.4 lbs
• 7.69" H Caster load capacity: 308.6 lbs
• Can resist: Detergent, extreme cold, extreme heat, petroleum products, solvents and water
• Recommended surfaces: Asphalt, concrete, hardwood, laminate, steel, tile, ceramic, linoleum, wood and planking
• 5.13" H and 6.09" H Caster mounting plate dimension: 3.13'' x 4''
• 5.13" H and 6.09" H Caster mounting hole diameter: 0.34"
• 5.13" H and 6.09" H Caster mounting hole spacing: 2.13'' x 3''
• 5.13" H Caster wheel diameter: 3.94"
• 5.13" H and 6.09" H Caster bandwidth: 1.38"
• 5.13" H Caster axle diameter: 0.47"
• 5.13" H Caster axle length: 1.56"
• 6.09" H Caster wheel diameter: 4.91"
• 6.09" H Caster axle diameter: 0.78"
• 6.09" H Caster axle length: 2.31"
• 7.69" H Caster mounting plate dimensions: 4.38" x 5.25"
• 7.69" H Caster mounting hole diameter: 0.47"
• 7.69" H Caster mounting hole spacing: 2.88'' x 4''
• 7.69" H Caster wheel diameter: 6.31"
• 7.69" H Caster bandwidth: 1.97"
• 7.69" H Caster axle diameter: 0.47"
• 7.69" H Caster axle length: 1.56"
