Step 1: Make sure the gasket is inside the connection port and use sealing tape around the pipe thread adapter.
Step 2: Attach a 3-way diverter to the shower arm by rotating the bolt clockwise by hand.
Step 3: Attach the extension arm to the 3-way diverter. Ensures the use hexagon wrench to tighten free free-spinning locking collar.
Step 4: Attach the rain shower head to the extension arm.
Step 5: Attach shower hose to 3-way diverter and water flow regulator.
Step 6: Attach the water flow regulator to the shower hose.
Step 7: Stick the bracket to the wall.
Note: To fit the parts more tightly, a wrench is required to assist in tightening each connector

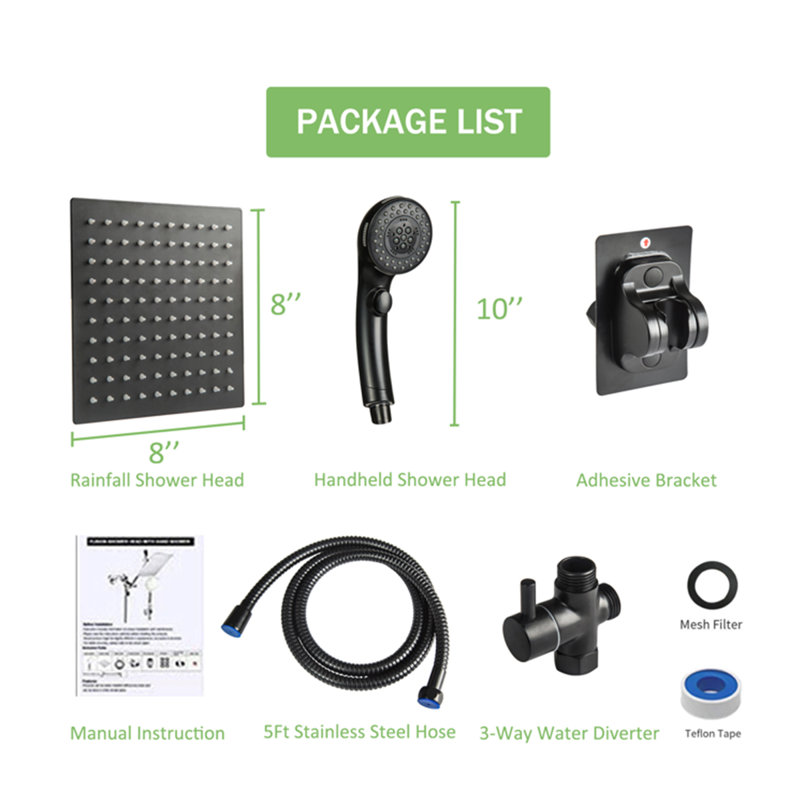

5FT Stainless Steel Hose
1. Lightweight, flexible and no tangle
2. Comes complete with washers and is easy to install with hand tight.
3. The round port is connected to the hand shower, and the hexagonal port is connected to the tee
installation assistance tool
1. Use a wrench to tighten each connection port to help prevent leaks
2. Use the sealing tape included in the kit
Shower bracket installation
1. Dry the water stains and tear off the tape behind the stand
2. Paste in the appropriate position, do not change the position after pasting
3. Put into use 24 hours after pasting
