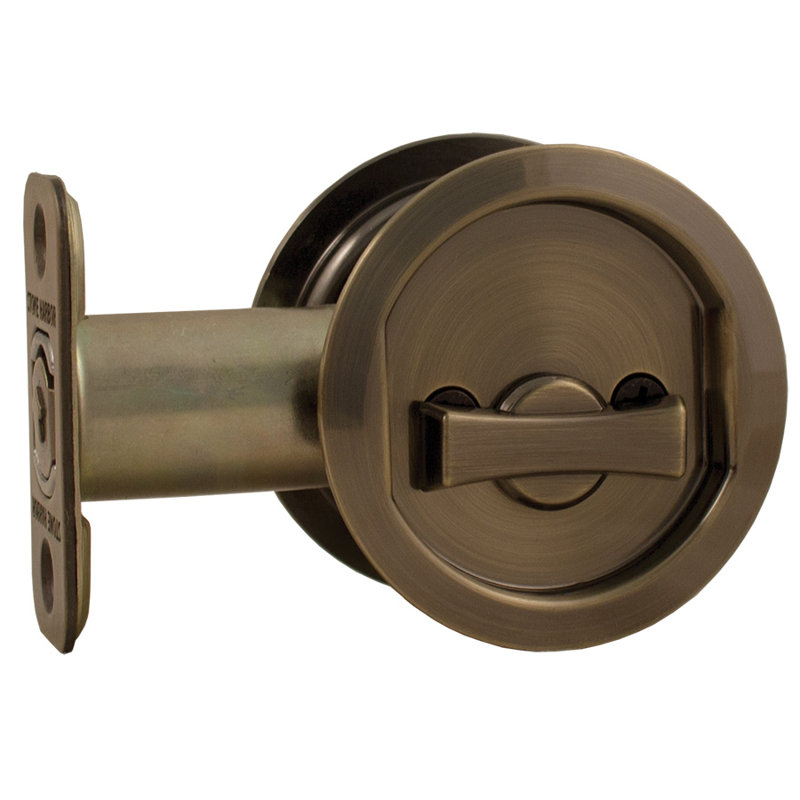

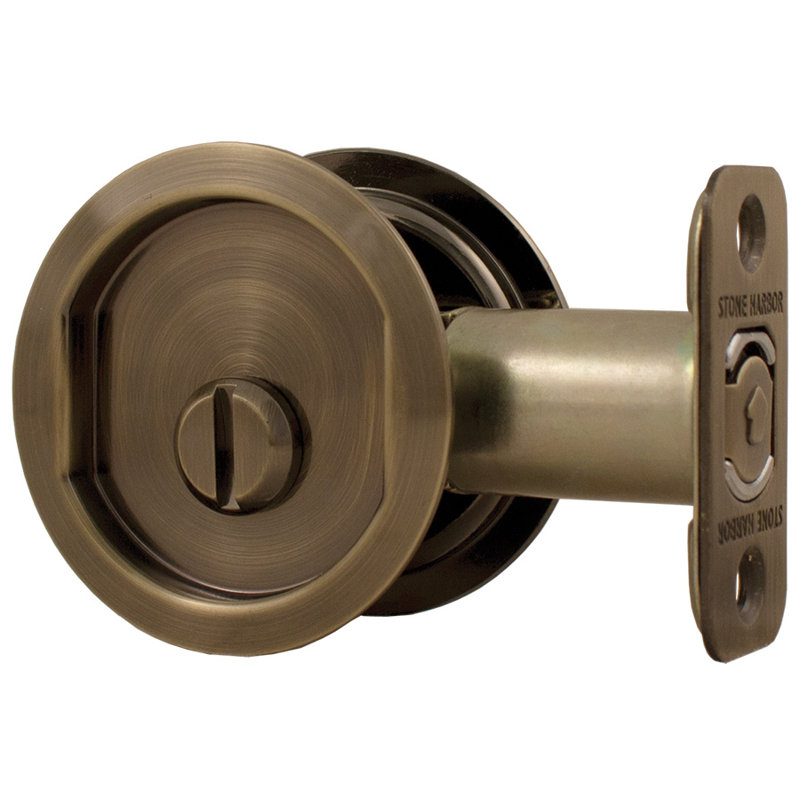

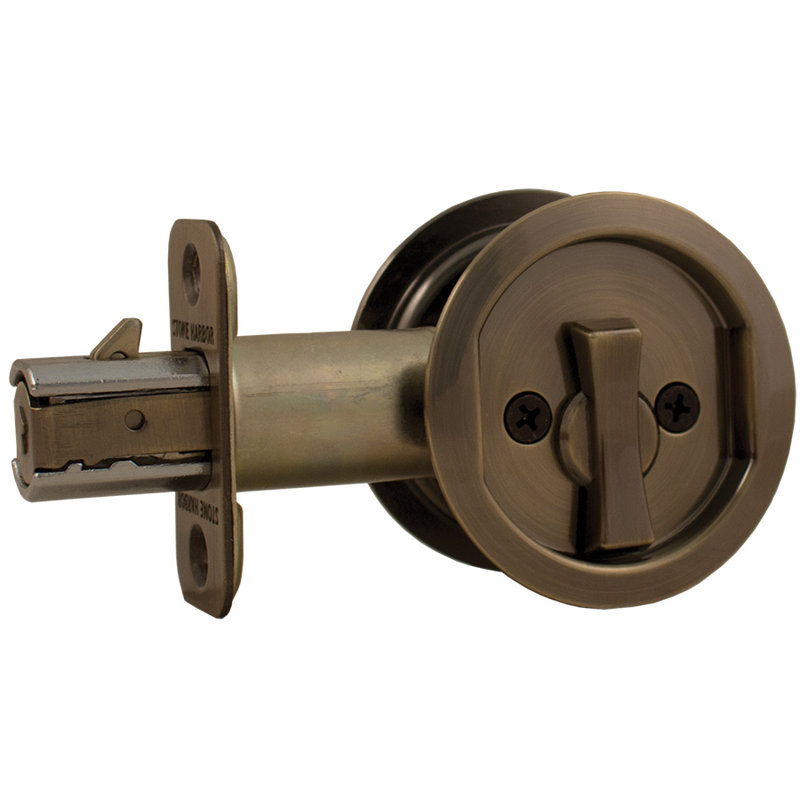

Round Pocket Door Lock

Features

• PRIVACY LOCK: Round Privacy Pocket Door Locks feature a privacy lock, allowing for interior rooms within a home to be safely secured. Specifically, this hardware features a latch with a tooth that hooks into the included strike plate to hold the door closed. From the interior, this type of pocket door lock can only be locked and unlocked via a turn button. Additionally, as a safety feature, this type of pocket door lock can be unlocked from the exterior using a coin or flathead screwdriver.
• DOOR PREPARATION: On each side of the door, mark the center of your bore hole 2-3/8" from the edge of the door. Drill a 2-1/8" diameter bore hole halfway through one side of the door. Repeat this process on the opposite side to complete the bore hole. Using a mortise chisel, create a depression measuring 2-1/4" by 1" in the edge of the door. Finally, drill a 1" diameter crossbore hole in the center of the depression to complete the preparation. For the best results, use the included template to prepare your door.
• FITS VARIOUS DOOR WIDTHS: Stone Harbor Hardware Pocket Door Locks are engineered to accommodate a wide range of door thicknesses, ensuring a secure fit for doors measuring between 1-3/8" and 1-3/4" thick. This versatile design makes it an ideal choice for different door applications, providing a seamless installation experience.
• EASY-TO-INSTALL: With a correctly prepared door, the installation process of pocket door locks is incredibly simple. All installation hardware is included. Just grab your screwdriver, or drill, and follow the included instructions to ensure all elements of the hardware are properly installed.
• VERSATILE APPLICATIONS: As a privacy door lock, the most common applications for this hardware are on doors for offices, bathrooms, and other rooms where it may be necessary to prevent entry from the exterior side of the door.
• Fits 1.38" - 1.75" thick doors
• 2.38" Backset
• Fits a standard 2.13" door prep for easy installation
