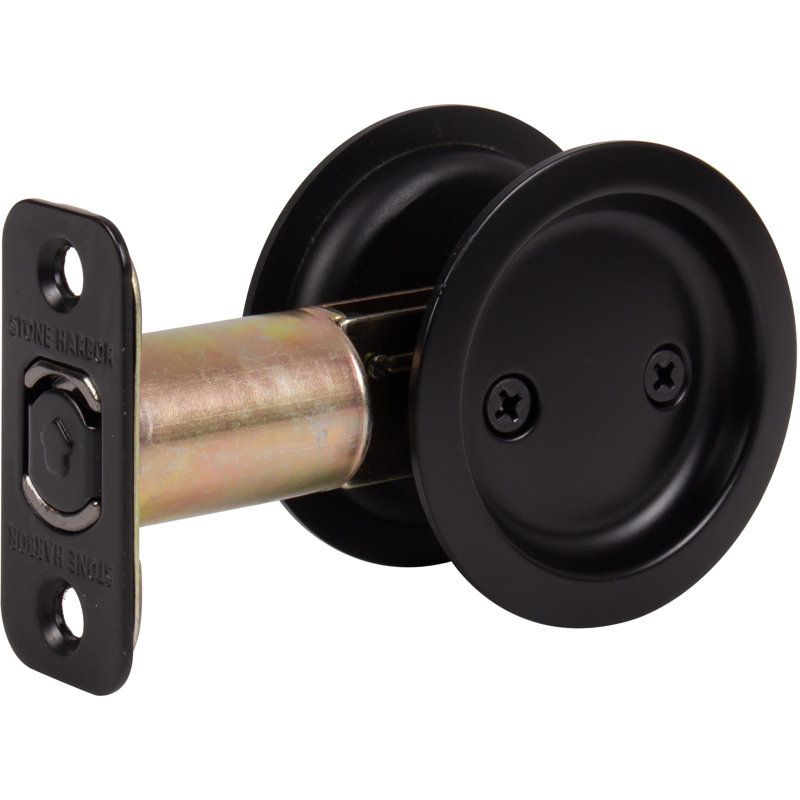

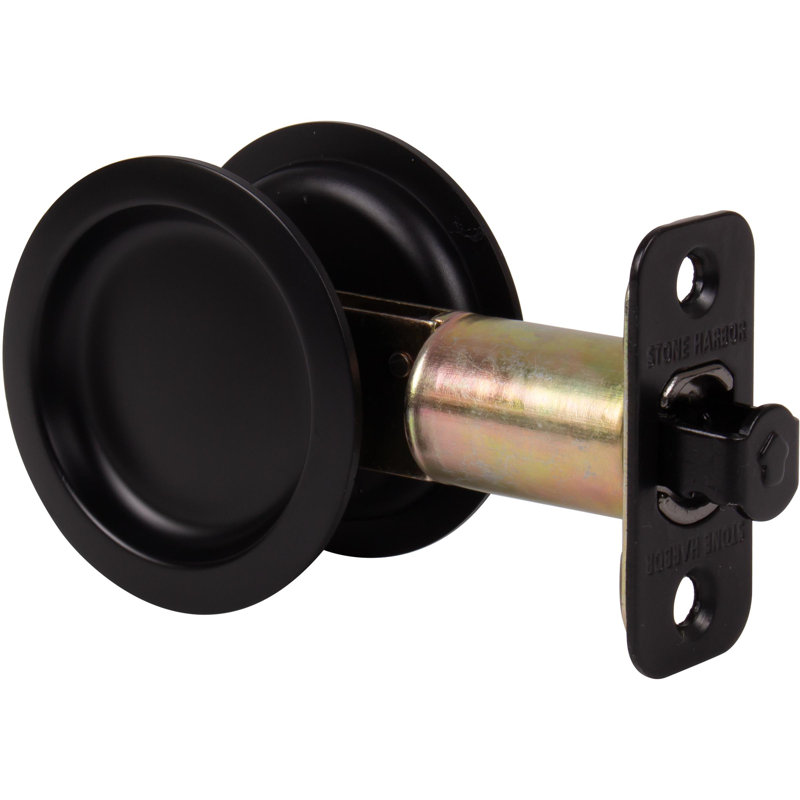

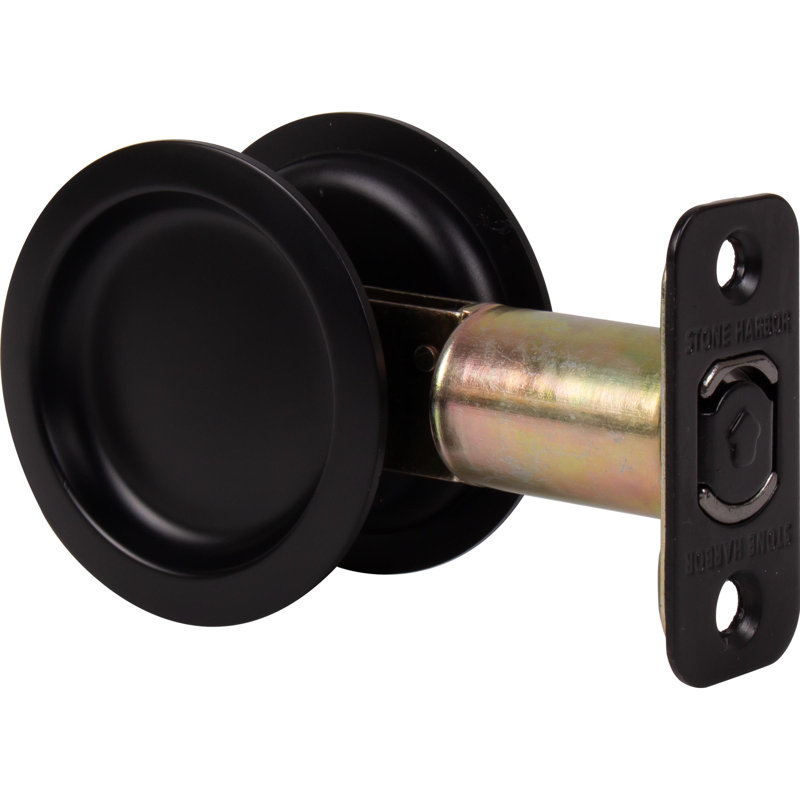

Round Pocket Door Latch

Features

• PASSAGE LOCK: Round Passage Pocket Door Locks feature a passage lock, allowing a simple transition from one room or hallway to another. This type of pocket door lock does not feature a locking mechanism.
• DOOR PREPARATION: On each side of the door, mark the center of your bore hole 2-3/4" from the edge of the door. Drill a 2-1/8" diameter bore hole halfway through one side of the door. Repeat this process on the opposite side to complete the bore hole. Using a mortise chisel, create a depression measuring 2-1/4" by 1" in the edge of the door. Finally, drill a 1" diameter crossbore hole in the center of the depression to complete the preparation. For the best results, use the included template to prepare your door.
• FITS VARIOUS DOOR WIDTHS: Stone Harbor Hardware Pocket Door Locks are engineered to accommodate a wide range of door thicknesses, ensuring a secure fit for doors measuring between 1-3/8" and 1-3/4" thick. This versatile design makes it an ideal choice for different door applications, providing a seamless installation experience.
• EASY-TO-INSTALL: With a correctly prepared door, the installation process of pocket door locks is incredibly simple. All installation hardware is included. Just grab your screwdriver, or drill, and follow the included instructions to ensure all elements of the hardware are properly installed.
• VERSATILE APPLICATIONS: As a passage door lock, the most common applications for this hardware are on doors for pantries, closets, and other rooms where you might traditionally simply pull the door open and closed.
• Fits a standard 2.13" door prep for easy installation
• Fits 1.38" - 1.75" thick doors
• 2.75" Backset
