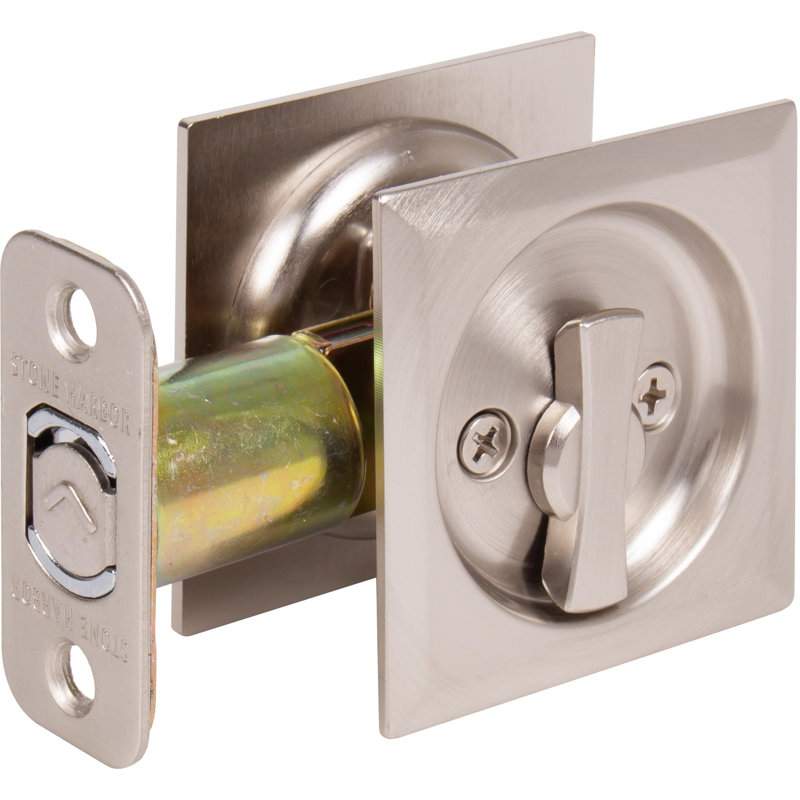

Contemporary Square Pocket Door Lock Entry with 2-3/8" Latch - Satin Nickel

Features

• KEYED ENTRY LOCK: Contemporary Square Keyed Entry Pocket Door Locks feature a keyed entry lock, allowing them to be locked and unlocked from the exterior with a key. Specifically, this hardware features a latch with a tooth that hooks into the included strike plate to hold the door closed. This type of pocket door lock can also be locked and unlocked from the interior via a turn button.
• DOOR PREPARATION: On each side of the door, mark the center of your bore hole 2-3/8" from the edge of the door. Drill a 2-1/8" diameter bore hole halfway through one side of the door. Repeat this process on the opposite side to complete the bore hole. Using a mortise chisel, create a depression measuring 2-1/4" by 1" in the edge of the door. Finally, drill a 1" diameter crossbore hole in the center of the depression to complete the preparation. For the best results, use the included template to prepare your door.
• FITS VARIOUS DOOR WIDTHS: Stone Harbor Hardware Pocket Door Locks are engineered to accommodate a wide range of door thicknesses, ensuring a secure fit for doors measuring between 1-3/8" and 1-3/4" thick. This versatile design makes it an ideal choice for different door applications, providing a seamless installation experience.
• EASY-TO-INSTALL: With a correctly prepared door, the installation process of pocket door locks is incredibly simple. All installation hardware is included. Just grab your screwdriver, or drill, and follow the included instructions to ensure all elements of the hardware are properly installed.
• VERSATILE APPLICATIONS: As a keyed entry door lock, the most common applications for this hardware are on doors for offices, storerooms, and other rooms where preventing unwanted entry is important.
