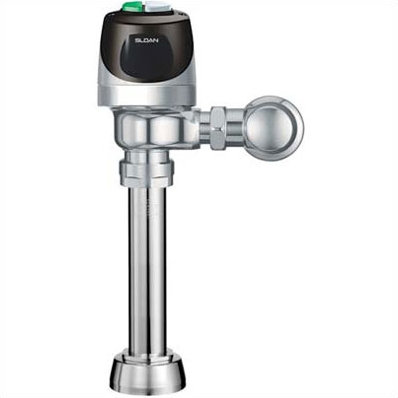

ECOS Electronic Flush Valve 3370400

Features

• Exposed, battery powered, sensor activated electronic dual flush model water closet flushometer
• Use with floor mounted or wall hung top spud bowls
• If the user is present for less than one minute and leaves the sensing zone or chooses the small override button, a reduced flush initiates (1.1 gpf/4.2 Lpf) eliminating liquid and paper waste, saving 1/2 gallon of water
• If the user is present for greater than one minute and leaves the zone or chooses the large override button, the full flush initiates (1.6 gpf/6.0 Lpf) eliminating solid waste and paper
• Reduces water volume by up to 30% when a reduced flush occurs
• PERMEX™ Synthetic Rubber Diaphragm with twin linear filtered bypass and vortex cleansing action
• Flex Tube Diaphragm designed for improved life and reduced maintenance
• ADA Compliant ECOS™ Electronic Dual Flush Battery Powered Infrared Sensor for automatic “No Hands” operation
• Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
• Latching Solenoid Operator
• User friendly three (3) second Flush Delay
• Courtesy Flush™ Override Button
• Four (4) Size AA Batteries factory installed
• “Low Battery” Flashing LED
• Infrared Sensor Range Adjustment Screw
• Initial Set-up Range Indicator Light (first 10 minutes)
• Chrome Plated Metal Handle Cap
• 1” I.P.S. Screwdriver Bak-Chek® Angle Stop
• Free Spinning, Vandal Resistant Stop Cap
• Adjustable Tailpiece
• High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
• Spud Coupling and Flange for 1-1/2” Top Spud
• Sweat Solder Adapter w/Cover Tube and Cast Wall Flange w/Set Screw
• High Copper, Low Zinc Brass Castings for Dezincification Resistance
• Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
• Flush Accuracy Controlled by CID™ Technology
• Diaphragm, Stop Seat and Vacuum Breaker molded from PERMEX™ Rubber Compound for Chloramine resistance
• 100% of the energy used in manufacturing is offset with Renewable Energy Sources – Wind Energy
• Ecofriendly
• Engineered Metal Cover with replaceable Lens Window
