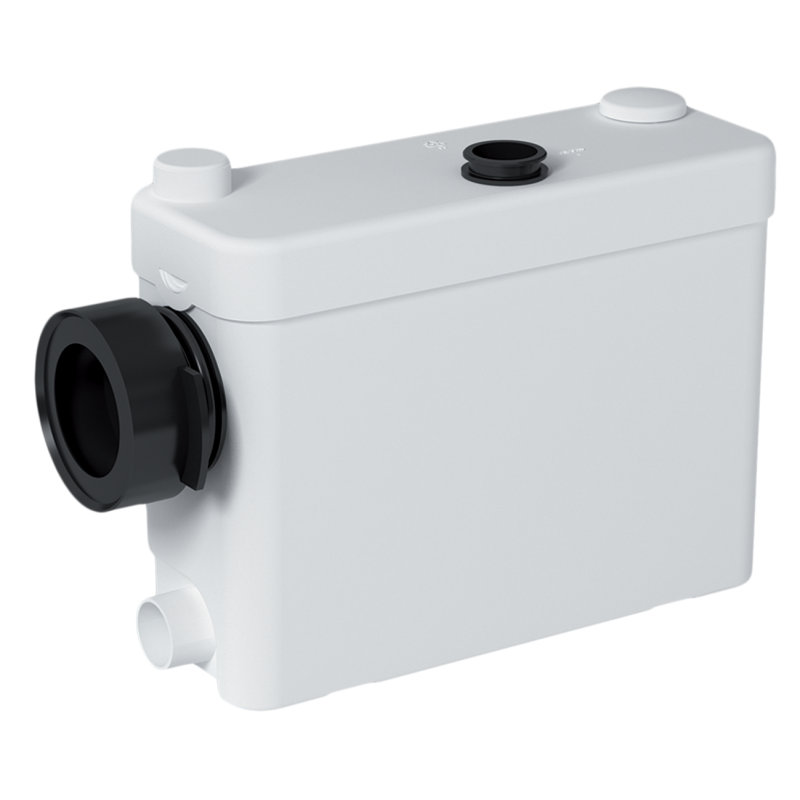

Sanipack Macerating System 011

Features

• Must be used tith a wall hung toilet
• Sanipack is built into a wall cavity provided by a concealed frame system
• Reservoir is also built into the wall and all the user sees is a large push button that activates the flush
• Install a complete bathroom up to 9 feet below the sewer line or even up to 100 feet away from a soil stack
• Connected to the water supply
• Macerating pump is connected to electrical supply
• Addition to the toilet waste, Sanipack will also discharge gray wastewater from a variety of other sanitary fixtures, such as: a sink, shower, a bidet or a urinal
• Easy to conceal with versatile and quiet operation
• CSA certification
• Motor RPM: 3600
• Horsepower: 0.3
• Amperage: 5.4
• Normal running time WC: 10 - 15 seconds
• Maximum temperature: 104°F
• Water consumption: 1.3 US gal - WC dependable
• Discharge pipe diameter: 0.75''
• Vertical discharge: 9 feet
• Horizontal discharge: 100 feet
• Gravity fall on horizontal installations: 0.25'' per feet
• Polypropylene, C.R.P., stainless steel and neoprene construction
• Electrical supply: 110 - 115V; 60Hz
• Distressed: No
• Style: Contemporary
• Mounting Type: Floor mounted
• Flush Type: Siphon jet
• Gallons Per Flush: 1.3 Gallons
• 2 Year warranty
