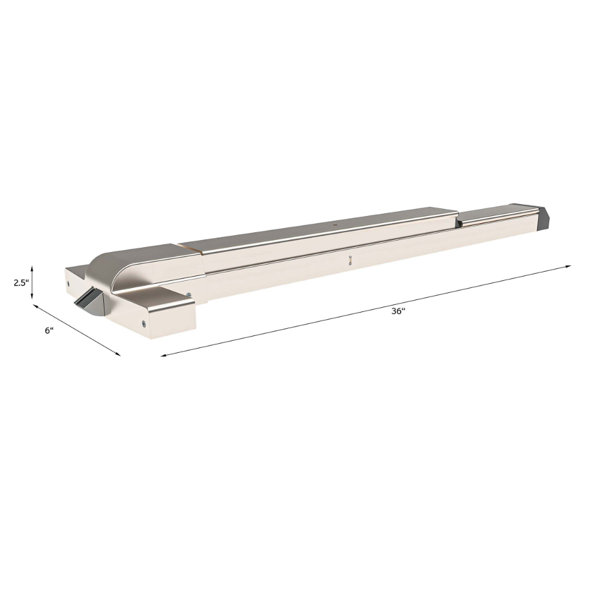

EDTBAR Series Stainless Steel Grade 1 Commercial 36 in. Fire Rated Rim Touch Bar Exit Device

Features

• Rim surface exit device of extruded anodized aluminum
• Compatible with wood and hollow metal doors up to 36in. wide
• Meets the standards of Grade 1 and ANSI A156.3 - UL10C Fire Rated
• Suitable for hollow metal or wood doors
• Set up for dogging & includes dogging hex key (½ turn 5/32 in. hex key)
• Recommended installation for mounting height at 41 in. from finished floor to center line of push rail
• Made from anodized aluminum for more durability
• Comes non-handed / reversible
• Fasteners are furnished with sheet metal and machine screws
• Cylinder (not included): accepts key trim cylinders with flat tail piece
• Supplied with mounting hardware
• Comes with Stainless Steel spring latch: 3/4 in. throw - 5/8 in. deadlatch
• Easy to install
• Stile or head width should be 4-1/4 in. minimum
• Door thickness: 1-3/4 to 2 in.
• Door width: 36 in.
• Projection: 2-1/2 to 1-7/8 in. dogged
• Backset: 2-3/4 in.
• Strike: surface mounted for 5/8 in. stop with shim
• Stainless Steel finish
• UL listed R25621 fire rated for 3 hours
• ADA compliant
• 1 Year mechanical and finish warranty
