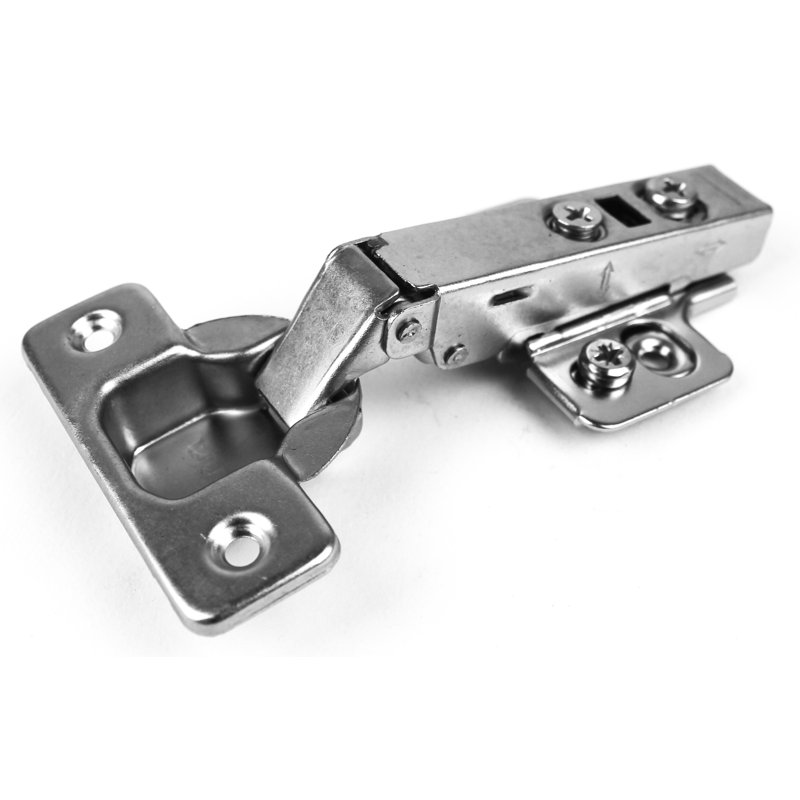

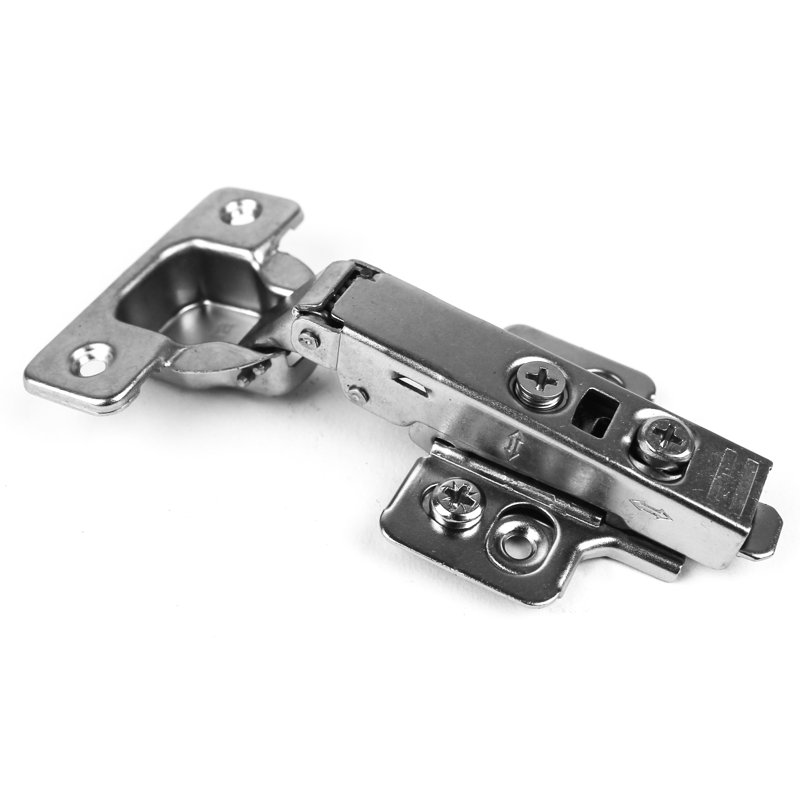

110 Degree Soft Close Full Overlay Frameless Concealed Hinge (Set of 30)

Features

• These hinges will have a straight arm and it allows your cupboard door edge to be completely in line with the edge of your cabinet. One major advantage of a full overlay concealed hinge is that it is fully adjustable due to the three little screws that they have. Depth, Side, and Height adjustments are made with these three screws. They can be fine-tuned to ensure the door frame is totally concealed and fits together perfectly.
• PACKAGE CONTENT: 30 Pieces of Soft Close Full Overlay Hinges and Installation Screws
• Overlay: Full, Opening Angle: 110 Degree, Closing Type: Soft Closing, Adjustment: 3-Cam Vertical, Horizontal and Depth adjustment. These are the main specifications of our hinges, please look at the descriptions section at the bottom for a comprehensive view of all specifications.
• The soft closing function is one of the best indicators of the quality of the hinges. The soft closing feature prevents all disturbing noises from the kitchen and extends the lifetime of the doors, cabinets, and hinges.
• The clip-on hinge is the easiest and quickest to fit, without any tools. It is ideal for doors requiring multiple hinges to be fitted this is because you simply line the hinge up with the mounting plate and push it on in one simple movement, it will then clip on to be connected to your mounting plate. They require very little alignment and make the job much easier when you have a few hinges to fit.
• Cup diameter: 35 mm (1.37"). Cup depth: 12 mm (0.47"). Suitable door thickness: 16 - 24 mm (0.6" - 1"). Screws hole distance: 45 mm (1.77"). Plate's screw hole distance: 35 mm (1.4").
