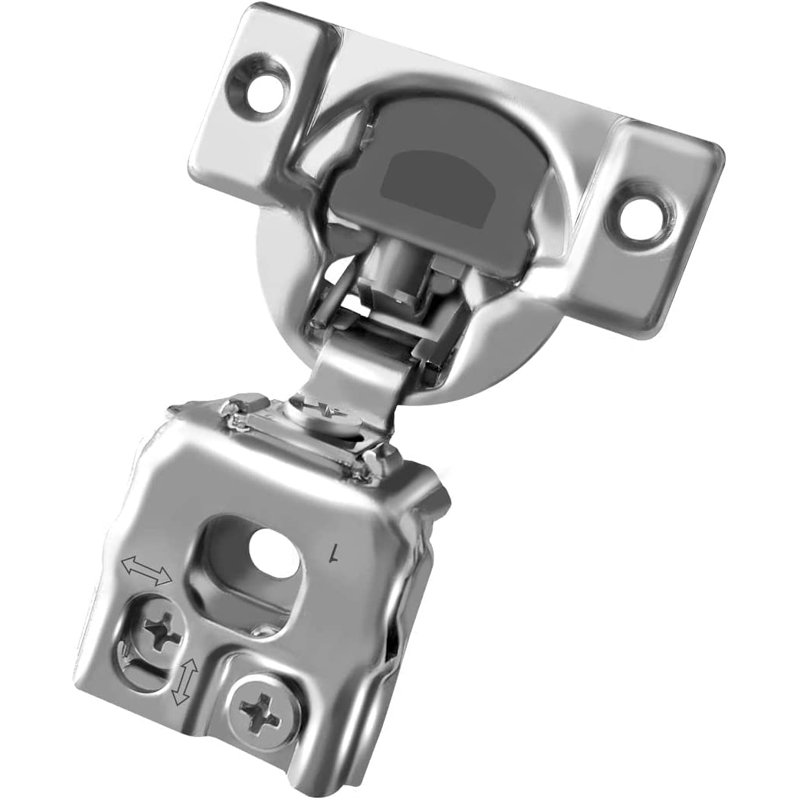

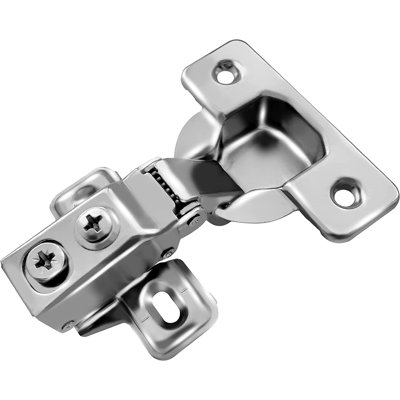

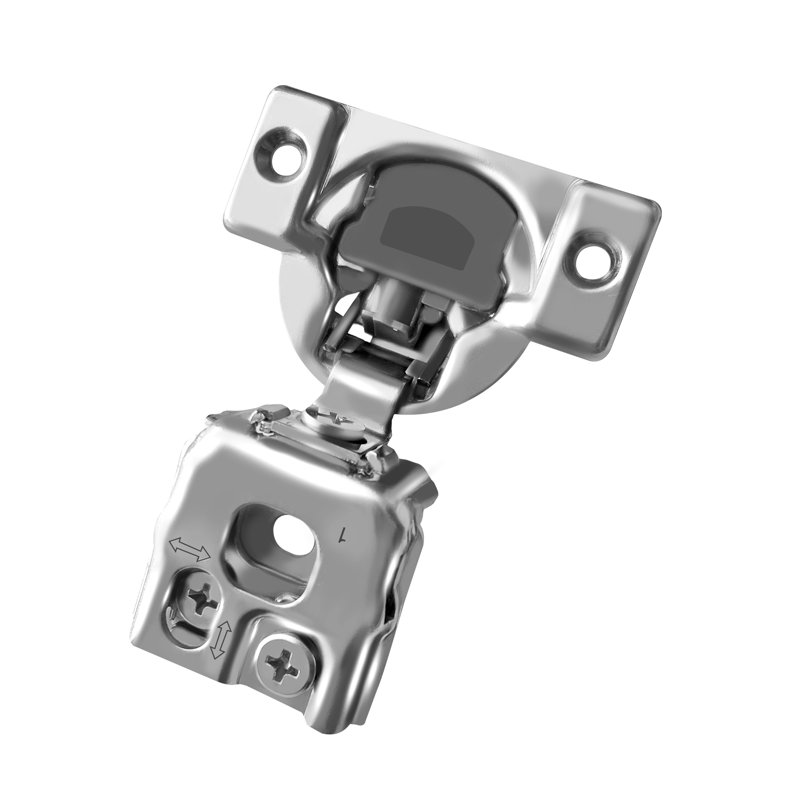

1 105 Degree Soft Close Face Frame Concealed Overlay Hinge (Set of 10)

Features

• 3-Cam Adjustment: Easiest to install and can be easily adjusted with the turn of a screwdriver. Depth, Side and Height adjustment functions will make sure that your new custom-made cabinet doors don't sag, align correctly.
• Soft-Closing: The hydraulic soft-close silent system is built into the hinge; the cabinet door will close slowly even you slam the door. It also puts less stress on cabinet door hinges, greatly extending the life of your cabinet.
• Specifications: CUP DIAMETER: 35 mm (1-2/5"). DEPTH OF CUP: 11 mm (2/5"). HOLE DISTANCE: 45 mm (1-4/5"). MATERIAL: Cold-Rolled Steel. FINISH: Nickel Plated. OPENING ANGLE: 105 Degree.
