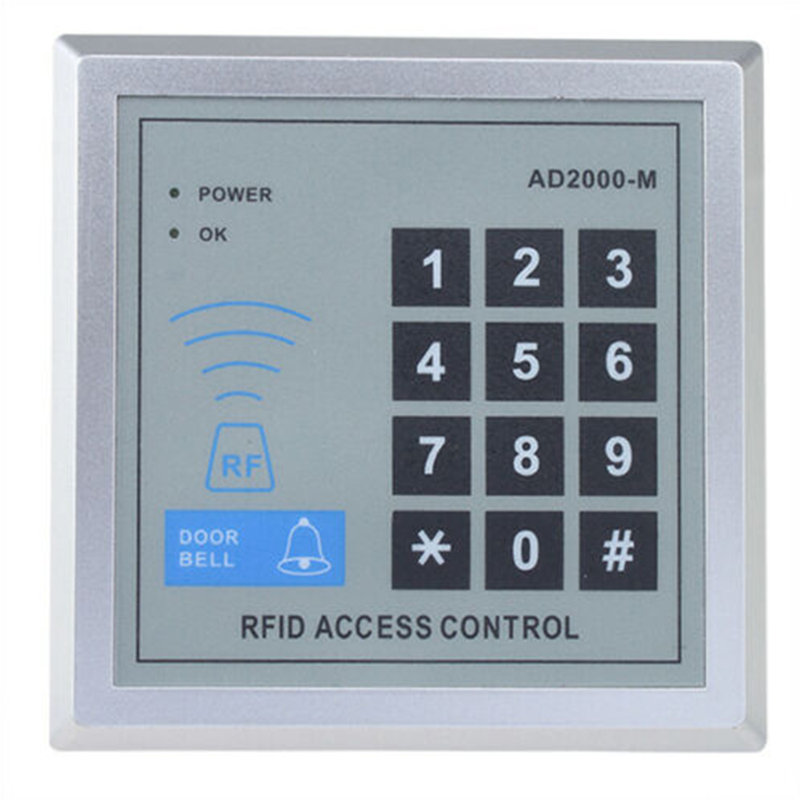

This RFID Proximity access controller using proximity card is one of the modern access control systems. The state-of-the-art CPU and integrated circuit techniques are applied to keep all the data from loss due to power failure. It is powerful and can open the door using proximity cards, passwords, or the hybrid.

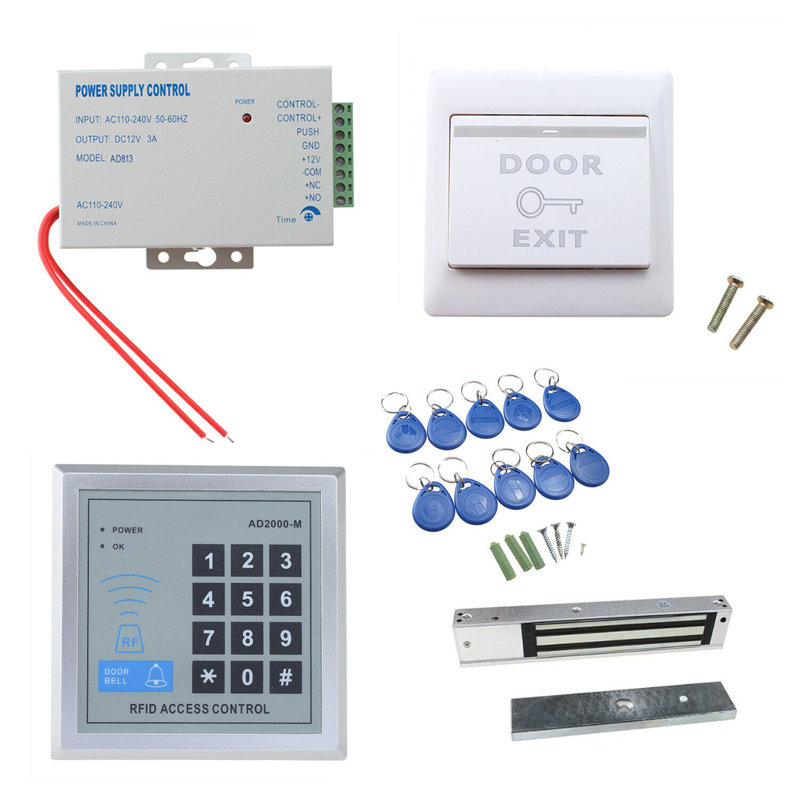

The access controller can provide users with more convenience by connecting to terminals, including the button for opening the door, doorbell, and electric lock that is normally open or closed.
This product offers a method for controlling access safely and automatically, qualifying it as an ideal equipment for businesses, offices, factories, and communities.

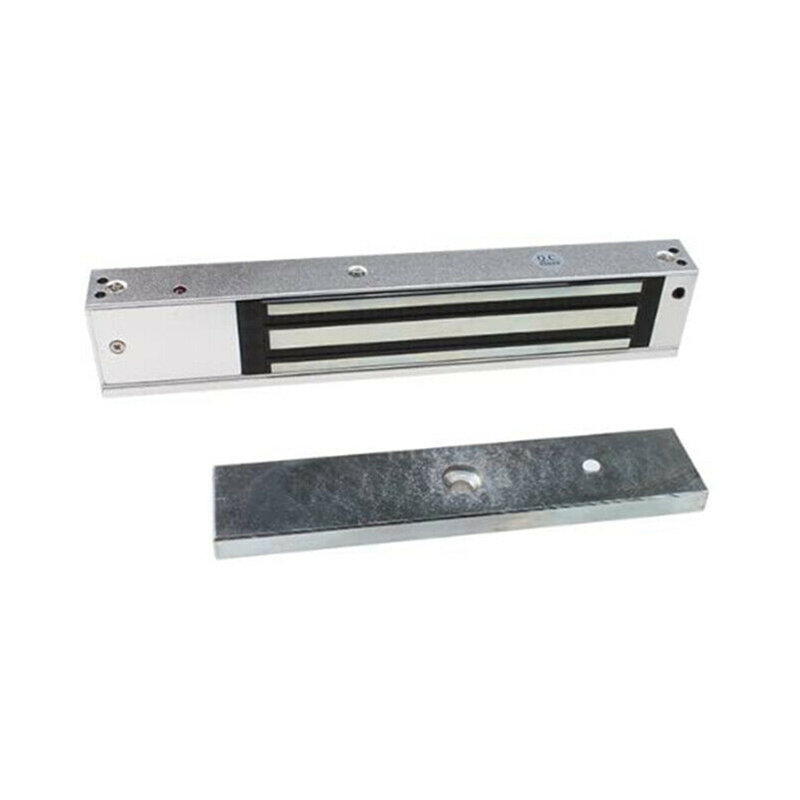

An electromagnetic lock, magnetic lock, is a locking device that consists of an electromagnet and an armature plate used for access control door locks. By attaching this to the door frame and the armature plate to the door, a current passing through the electromagnet attracts the armature plate, holding the access control door lock shut.
Unlike an electric strike access control door lock a magnetic lock has no interconnecting parts.it is possible to bypass the lock by disrupting the power supply. According to the different doors, sometimes will need U brackets or L&Z brackets to support mounting. Also, it can work with networking access control system which includes electric lock, power supply, access controller,exit button,door bell or RFID cards.
Specifications:
Dimension:116mm×116mm×20mm
Relative humidity:20%—80%
Memory capacity:500 user cards or 50 door opening passwords
Working distance:5－15CM
Card Type: EM or EM compatible cards
or
