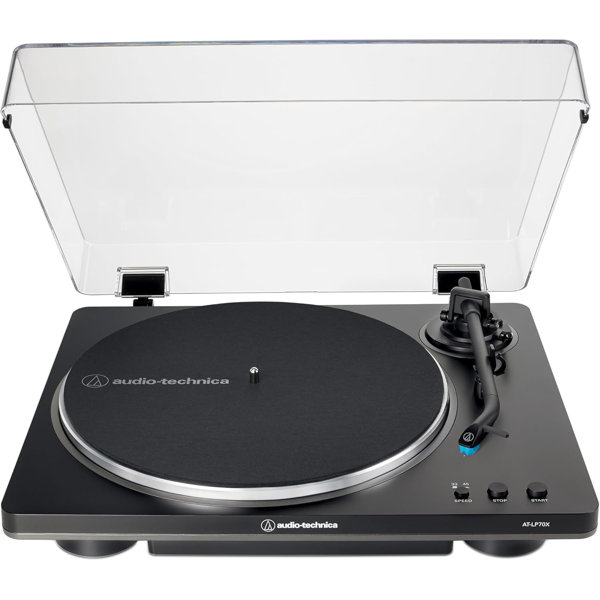

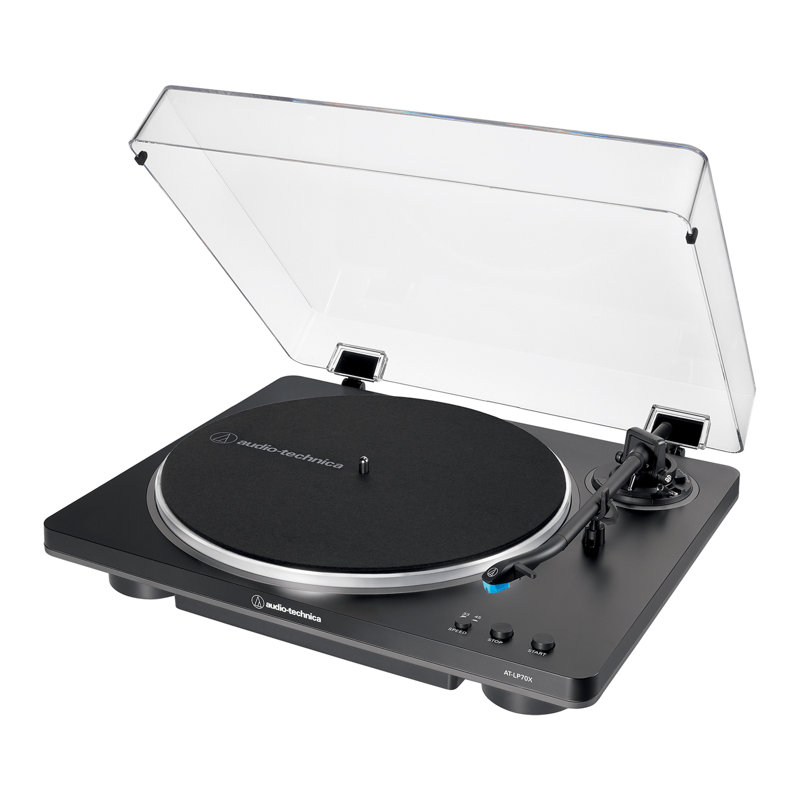

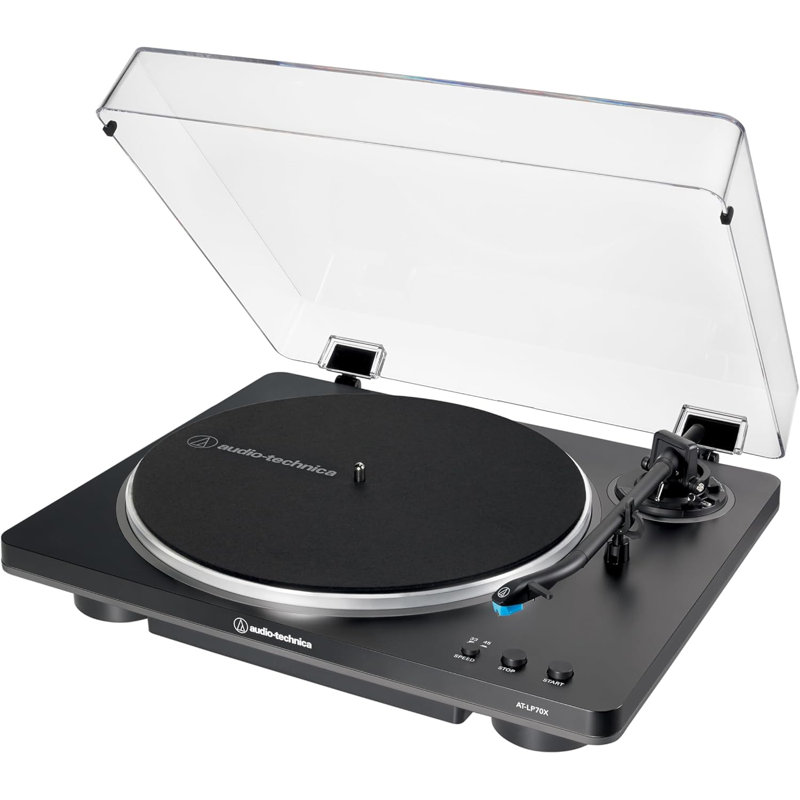

AT-LP70X
The AT-LP70X Fully Automatic Belt-Drive Turntable is the perfect beginner turntable for those beginning their audiophile journey. Designed to offer a quality sound experience for those who love listening to records, from flipping through albums at the record store to placing a record on the turntable, cueing the tonearm, and sitting back with the album art in hand to enjoy music as the artist intended. Combining the experience of warm, analog audio with user-friendly features, this turntable plays both 33-1/3 and 45 RPM records and has a built-in switchable phono preamp that allows the turntable to connect to a home stereo, powered speakers, or another component, with or without a dedicated phono input.
At the heart of the AT-LP70X is a top-notch phono cartridge for unmatched, high-fidelity audio. Built with Audio-Technica’s industry-leading phono cartridge expertise, the AT-VM95C is a versatile, superior-performance cartridge that other turntables in this class simply can’t beat. Integrated into the J-shaped tonearm, the AT-VM95C cartridge with a 0.6 mil conical stylus offers excellent channel separation and low distortion for outstanding tonal quality. To further personalize vinyl listening, the stylus can also be easily upgraded with any other styli (elliptical, micro linear, or Shibata) in our VM95 Series, offering unprecedented customization for a turntable in this category.
To ensure peak sound performance, the AT-LP70X includes a three-piece, anti-resonance chassis that provides a solid foundation to dampen unwanted noise for improved sound quality. The included AC adapter further reduces noise as the AC/DC conversion is moved to the outside of the chassis to limit any unfavorable noise.
Product Highlights:
- Fully automatic belt-drive turntable operation with two speeds: 33-1/3, 45 RPM
- A fixed-body AT-VM95C Integral Dual Moving Magnet phono cartridge is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application
- Stylish three-piece chassis construction dampens resonance for improved sound quality*
- J-shaped tonearm is engineered to minimize tracking errors
- Tonearm lock reduces risk of stylus damage
- Built-in switchable phono/line pre-amplifier
- Anti-resonance, die-cast aluminum platter with felt mat
- AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain

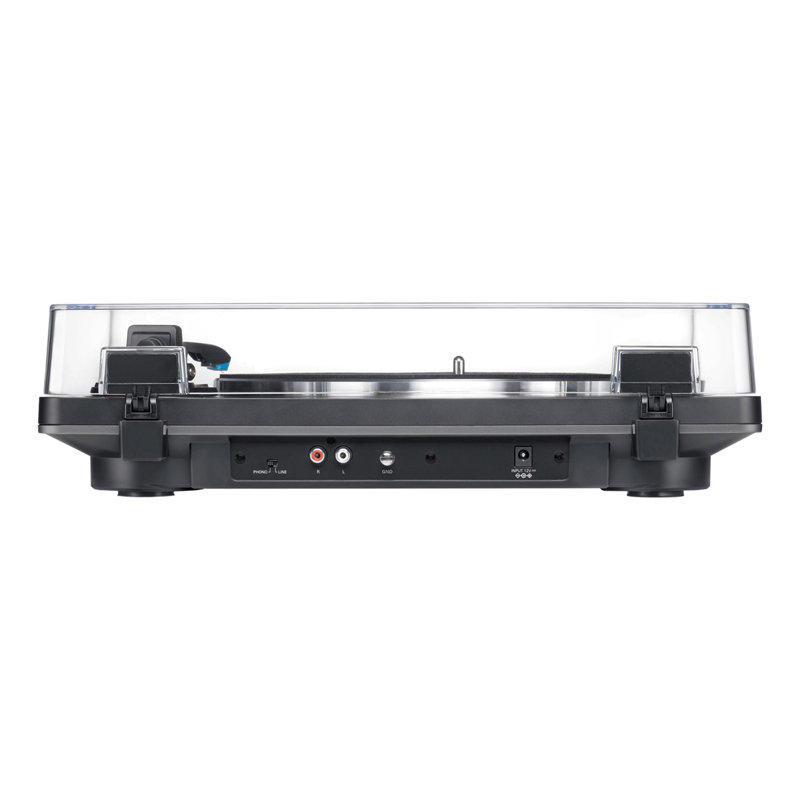

- Includes detachable RCA output cable (dual RCA male to dual RCA male with ground), 45 RPM adapter, and removable hinged dust cover
Product Specifications:
Motor: DC motor
Drive Method: Belt drive
Speeds: 33-1/3 RPM, 45 RPM
Turntable Platter: Die-cast aluminium
Wow and Flutter: less than 0.25% (WTD)
Signal-to-Noise Ratio: greater than 55 dB
Cartridge Type: This product is equipped with an AT-VM95C Dual Moving Magnet Stereo Cartridge. The cartridge cannot be removed.
Output Level: PHONO: 4.0 mV nominal at 1 kHz, 5 cm/sec | LINE: 252 mV nominal at 1 kHz, 5 cm/sec
Phono Pre-Amp Gain: 36 dB nominal, RIAA equalized
Power Consumption: 1.5 W
Dimensions: 400 mm (16") × 330 mm (13") × 110 mm (4.3") (W × D × H)
Weight: Approx. 2.9 kg (6.4 lbs)
AC Adapter: Type: FJ-SW1261200500DN | Rated Input Voltage: 100 to 240 V AC | Rated Input Current: 0.4 A max. | Rated Frequency: 50 Hz / 60 Hz | Rated Output Voltage: 12 V DC | Rated Secondary Current: 0.5 A | Cable Length: Approx. 1.5 m (4.9')
Effective Arm Length: 220 mm (8.7")
Overhang: 18 mm (0.71")
Tracking Error Angle: Less than 2.0
Replacement Stylus: AT-VMN95C (sold separately)
Replacement Belt: AT-LP70X exclusive belt (sold separately)
