Sugatsune

Dull Chrome

This Sugatsune hinge is fully concealed when the door is closed, so nothing breaks the line of the door or the frame. It is three-way adjustable, which means height, side and depth can all be trimmed after the door is hung and re-trimmed later if the door settles. The zinc alloy body carries 66.14 lb. (30 kg) per pair and suits doors from 1.14 in. (29 mm) thick, up to 94.49 in. (2400 mm) high and 35.43 in. (900 mm) wide. It measures 4.72 in. (120 mm) high, 0.98 in. (25 mm) wide and 1.71 in. (43.5 mm) deep. A bracket for sheet metal is available separately. Certified to RoHS 3. Available in matte black, dull chrome, and dull nickel finishes.

Black

This Sugatsune 70 mm concealed hinge is 3-way adjustable, so the door can be fine-tuned in, out, up, down, and side to side after installation, and it sits fully out of sight when the door is closed. Made from zinc alloy, it measures 2.76 in. (70 mm) high, 0.55 in. (14 mm) wide, and 1.38 in. (35 mm) deep, and fits doors from 0.75 in. (19 mm) thick, up to 23.62 in. (600 mm) wide, and up to 47.24 in. (1200 mm) tall. It's rated to hold 19.84 lb. (9 kg) per pair, or 26.46 lb. (12 kg) across three hinges. Mounting hardware is 4 x 20 mm stainless steel countersunk wood screws. Certified to RoHS 3. Available in matte black, dull chrome, and dull nickel finishes.

I ordered the wrong size hinges. Anonymous. Tue Jul 28 2026

Dull Chrome

This Sugatsune hinge is fully concealed when the door is closed, so nothing breaks the line of the door or the frame. It is three-way adjustable, which means height, side and depth can all be trimmed after the door is hung and re-trimmed later if the door settles. The zinc alloy body carries 26.46 lb. (12 kg) per pair, or 35.27 lb. (16 kg) using three, and suits doors from 0.91 in. (23 mm) thick, up to 59.06 in. (1500 mm) high and 23.62 in. (600 mm) wide. It measures 3.54 in. (90 mm) high, 0.71 in. (18 mm) wide and 1.38 in. (35 mm) long. It can be used with the DC-200 damper catch, and a bracket for glass doors is available separately. Certified to RoHS 3. Available in matte black, dull chrome, and dull nickel finishes.

Dull Chrome

This Sugatsune HES3D-W190 concealed hinge is 3-way adjustable, so the door can be fine-tuned in, out, up, down, and side to side after installation, and it's fully concealed when the door is closed. It's rated to hold 220 lb. per pair and fits doors with a minimum thickness of 1-5/8 in. (42 mm), up to 36 in. (915 mm) wide, and up to 96 in. (2440 mm) tall. Certified to RoHS 3 and UL Listed. Available in matte black, dull chrome, and dull nickel finishes.

White

Matte Black

This Sugatsune HES3D-E190 concealed hinge is 3-way adjustable, so the door can be fine-tuned in, out, up, down, and side to side after installation, and it's fully concealed when the door is closed. It's rated to hold 220 lb. per pair and fits doors with a minimum thickness of 1.5 in. (38 mm), up to 36 in. (915 mm) wide and 94.5 in. (2400 mm) tall. It weighs about 2.44 lb. per piece. Certified to RoHS 3 and UL Listed. Available in matte black, dull chrome, and dull nickel finishes.

Chrome, Steel

The Sugatsune GHC-34-8-CR inset glass door hinge offers a polished solution for glass cabinet doors that demand both function and visual clarity. Designed by Sugatsune, this hinge supports glass doors with consistent, smooth operation while maintaining a precise fit within inset applications. The finish adds a bright, reflective accent that complements modern, transitional, and contemporary spaces, coordinating easily with other hardware. Its streamlined design helps preserve a clean cabinet profile, making it ideal for display cases and furniture where details are highly visible. Engineered for dependable everyday use, this hinge is intended to maintain alignment and performance over time. Product details, finishes, and intended use are based solely on information provided by Outwater and Sugatsune.

Nickel

The Sugatsune cabinet hinge combines reliable door performance with a bold, contemporary finish. Designed for cabinet door installations, this hinge supports smooth opening and closing while helping maintain proper door alignment over time. The finish adds a modern, architectural accent that pairs well with darker cabinetry, minimalist interiors, and contrasting design schemes. Its streamlined profile ensures the hinge complements the cabinet without drawing unnecessary attention, making it suitable for furniture, storage units, and refined residential spaces. Built with Sugatsune’s focus on precision and longevity, the is intended for applications where both appearance and dependable function matter.

This Sugatsune lift-assist damper with stopper supports counter-top and lift-up panels, holding them open with a controlled, damped motion. It's rated for 92.96 to 119.52 lbf/in. (107.1 to 137.7 kgf/cm) per hinge of torque, and is designed for use individually or in pairs alongside piano or butt (single-axis) hinges, with the mounting hardware centered under the panel. It's made from ABS with an off-white finish, opens to a maximum angle of 95 degrees, and measures 1.97 in. (50 mm) high and 3.27 in. (83 mm) wide with a 12.52 in. (318 mm) closed depth. It fits panels from 0.59 to 1.57 in. (15-40 mm) thick, mounts with 4 x 16 mm screws, and includes an installation template. Certified to RoHS 3.

This Sugatsune recessed latch gives a wooden sliding door a flush-mount handle with a latch that can be operated from both sides of the door. It's made from zinc alloy with a nickel finish, measures 6.38 in. (162 mm) high, 1.57 in. (40 mm) wide, and 2.01 in. (51 mm) deep, and fits doors from 1.38 to 1.77 in. (35-45 mm) thick. The backset can be set anywhere from 30 to 51 mm from the door edge. It includes a strike plate, weighs about 1.2 lb. per piece, and mounts with M4 x 20 and M4 x 25 mm steel countersunk head screws.

1.75" H x 23.625" W x 0.5" D

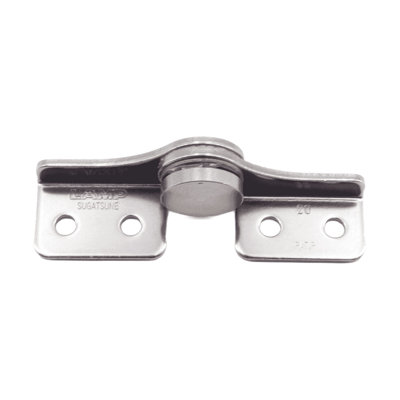

The Torque Hinge from Sugatsune, the Japanese hardware maker. Free stop hinge with friction torque. Consistent torque through out working range. Opening angle 0~180. Built in stainless steel.

The Stainless Steel Hinge from Sugatsune, the Japanese hardware maker. Rated to 5.7 lb per pair. Built in stainless steel.

20 Inches

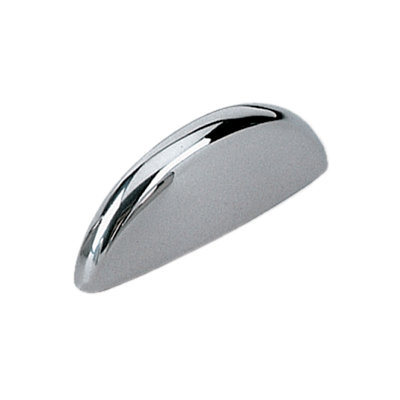

This Sugatsune pull is a round-edge cabinet handle with a mirror-polished finish, made from 316 stainless steel for corrosion resistance. It mounts on 1.65 in. (42 mm) centers and measures 2.17 in. (55 mm) long and 0.91 in. (23 mm) wide, projecting 0.37 in. (9.5 mm), weighing about 0.11 lb. per piece. Mounting screws (M4 x 25 mm stainless steel) are included. NSF compliant and certified to RoHS 3.

Brown

Black

Satin

1 in.

Gray

Satin

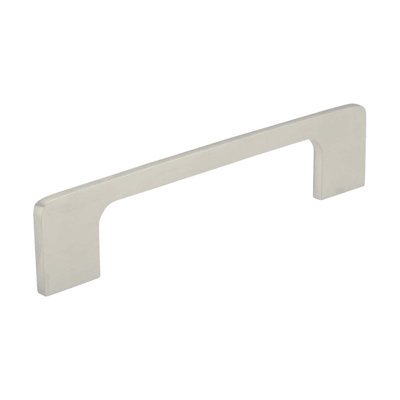

This Sugatsune cabinet pull is machined from 304 stainless steel in a satin finish. It mounts on 6.3 in. (160 mm) centers and measures 7.48 in. (190 mm) end to end with a 1.57 in. (40 mm) projection from the door face. The 6 mm (0.24 in.) rectangular bar gives a squared, contemporary edge. Designed for cabinet use; back-to-back mounting is not available on this model. Stainless steel M4 x 25 machine screws are included. It is certified to RoHS 3.

This Sugatsune mechanism swings a cabinet door forward and down to open, with a soft close on the way back up, for doors weighing 8.8-11.0 lb. It's made from steel and plastic with a nickel/gray finish, measures 13.94 in. (354 mm) high, 6.99 in. (177.5 mm) long, and 0.93 in. (23.5 mm) wide, and fits doors from 14.17 to 15.75 in. (360-400 mm) tall and 23.62 to 35.43 in. (600-900 mm) wide. It weighs about 7 lb. per set, mounts with 3.5 x 15 mm self-tapping screws, and operates between 41 and 95 F (5-35 C). Certified to RoHS 3.

White

Satin

This Sugatsune cabinet pull is machined from 304 stainless steel in a satin finish. It mounts on 7.56 in. (192 mm) centers and measures 8.74 in. (222 mm) end to end with a 1.57 in. (40 mm) projection from the door face. The 6 mm (0.24 in.) rectangular bar gives a squared, contemporary edge. Designed for cabinet use; back-to-back mounting is not available on this model. Stainless steel M4 x 25 machine screws are included. It is certified to RoHS 3.

The Sugatsune GH-34-0-CR-P Chrome Plated Glass Door Hinge is designed to provide smooth, reliable operation for glass or acrylic cabinet doors while maintaining a refined, modern appearance. Engineered with precision, this hinge supports controlled door movement that helps reduce stress on glass edges, contributing to longer-lasting installations and improved day-to-day usability. The chrome-plated steel finish delivers a bright, polished look that pairs well with contemporary interiors, making it a natural fit for kitchens, bathrooms, display cases, and commercial fixtures where visual consistency is important. Its compact profile keeps the hardware discreet, allowing the glass door to remain the focal point of the design. Easy alignment during installation helps ensure doors remain properly positioned over time, reducing the need for adjustment or maintenance. This hinge offers a balanced combination of durability, clean aesthetics, and dependable performance for projects that prioritize both function and finish.

Satin
