304 Stainless Steel Filter Solid-Liquid Separation Tool

Features

• Efficient Filtration: The filter has a high filtration area of 2.48 square feet. The filtrate flows into the filter bag from the side inlet of the filter housing, allowing the liquid to flow from high to low so that the filter bag is not affected by turbulence, which improves the filtration efficiency and service life.
• Excellent Performance: The filter bag installed in the reinforced mesh basket can effectively intercept the impurity particles, and the qualified filtrate can be obtained after the liquid penetrates the filter bag, thereby achieving the effects of liquid filtration, purification, separation, and recovery.
• Considerate Design: The low probability of side leakage of the filter bag ensures filtration precision and the rapid replacement of the filter bag reduces the operation cost. The filter bag is supported by a metal mesh basket to help extend its service life.
• Thoughtful Design: You can adjust the overall height of the product by adjusting the support feet to determine the height of the machine from the ground according to the height of the inlet and outlet. The 3 adjustable feet are sturdy and durable, ensuring stability and safety in use. With pre-drilled mounting holes, you can securely fasten the product to the ground.

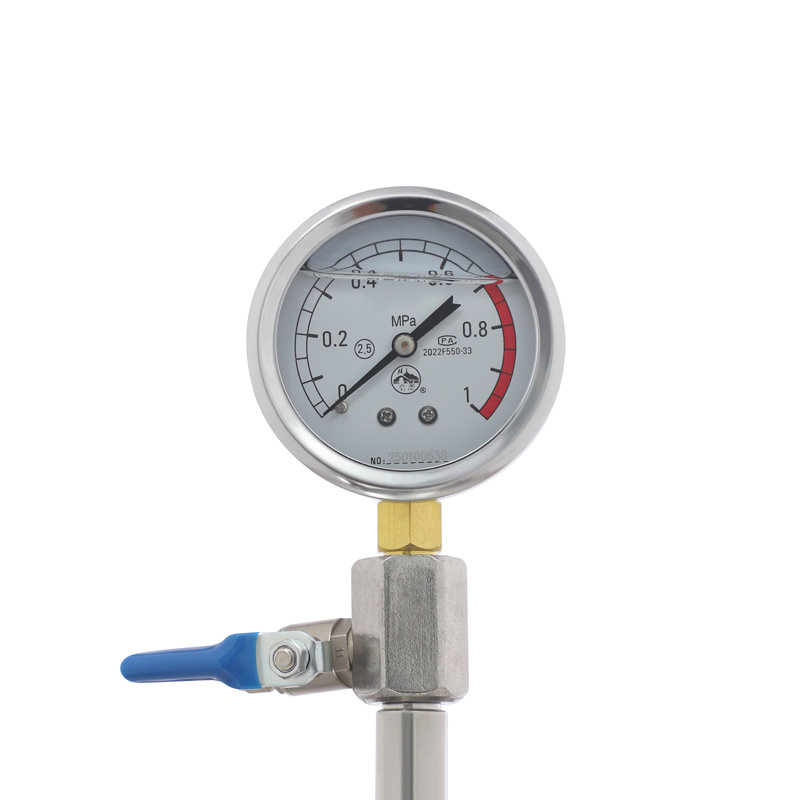

• Real-time Monitoring: This product is equipped with an excellent shock-retardant pressure gauge with 2.5-level accuracy and 1.0MPa measurement range, which is convenient for real-time and accurate monitoring of internal pressure and timely release of excess pressure.

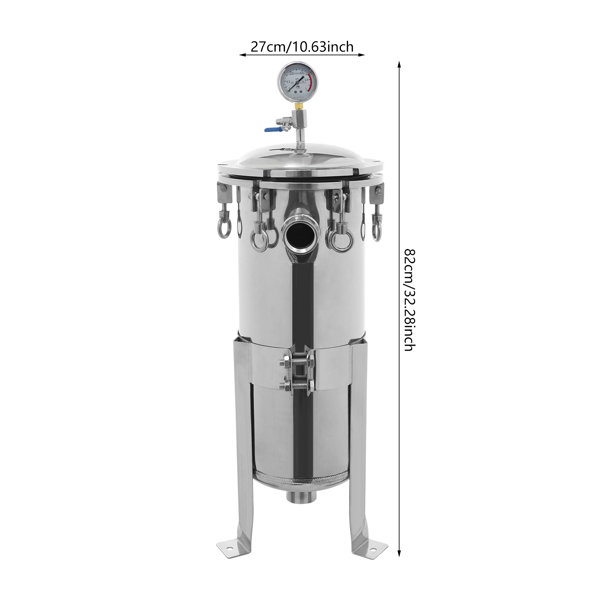

• Specifications: Material: 304 Stainless Steel, Rubber; Process: Polishing; Mount Type: Floorstanding; Required: Yes; Style: Modern; Color: Silver; Thickness: 2mm/0.08in; Filtration Area: 0.23m²/2.48ft²; Reference Flow Rate: 15-20 Ton/H; Inlet/Outlet Female Thread Size: NPT 1.5″; Maximum Pressure: 1.0MPa; Pressure Gauge Accuracy: 2.5 Level; Ambient Temperature: -20~80℃/-4~176℉; Product Size(D*H): 27*82cm/10.63*32.28in
• The filter bag can be reused after cleaning, but replacement is recommended after multiple uses. This product contains only one 5-micron filter bag.
