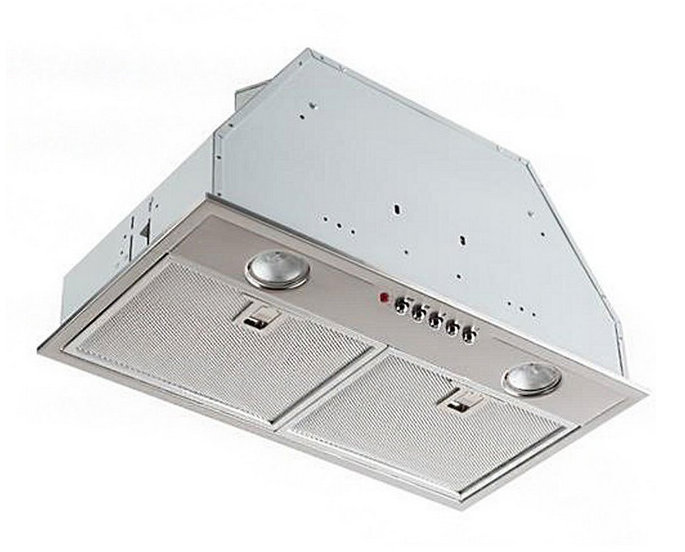

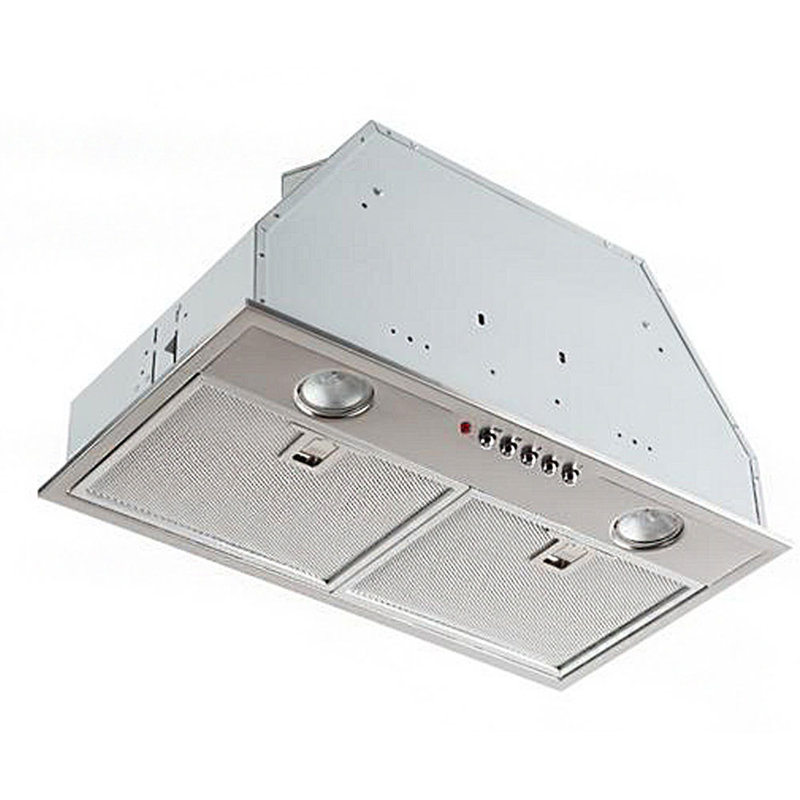

Broan-NuTone 20.5 " W Stainless Steel 500 CFM Convertible Insert Range Hood with Mesh Filter PM500SS

Features

• Durable 430 stainless steel with brushed #4 finish is visible when installed (non-exposed housing is made of electro-galvanized steel)
• HVI rated 500 CFM, operates at 9.0 Sones
• Brilliant halogen single-level lighting from two lamps allows great cooktop visibility (JC 12V 20W G4 base included)
• Round duct connector for backdraft damper
• Fresh air inlets are required when using make-up dampers (641FA, 643FA, 610FA)
• Three-speed pushbutton control provides the right ventilation choice
• Optional universal make-up air dampers help to balance air pressure in the home
• Dry, Damp or Wet Location Listed: Dry
• Air Flow: 500 Cubic Feet Per Minute
• Light Included: Yes
• Bulb Shape: JC
• Wattage per Bulb: 20 Watts
• Multiple Speed Settings: Yes
• Amps: 2.8 Amps
• Damper: Yes
• Commercial OR Residential Certifications: Yes
• HVI Certified: Yes
• Duct Diameter: 6 Inches
• Manufacturer provides 1 year limited warranty
• Besides checking the product measurements, you should also:
• Check your venting capabilities; Check if your home has installed ductwork. If it does, or you plan on getting it installed, you should look for a ducted (vented) or convertible range hood. If your home does not have installed ductwork, you should choose a ductless (non-vented) or convertible range hood.
• Measure Your Space: First, measure the width of your cooking surface from one side of the cooktop to the other. Next, measure the width of the area between cabinets where your range hood will live (if applicable). Then, measure the space between the cooking surface and cabinets or ceiling above. There should be anywhere from 24 to 36 inches between the bottom of the range hood and the cooktop surface. Finally, measure the depth from front to back of the cooking surface.
