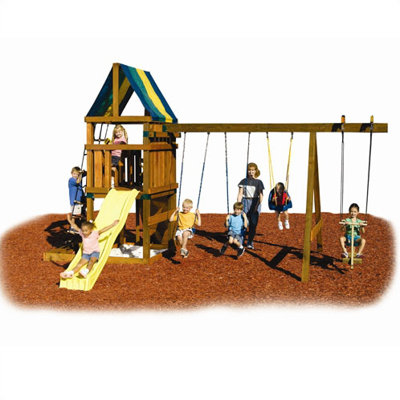

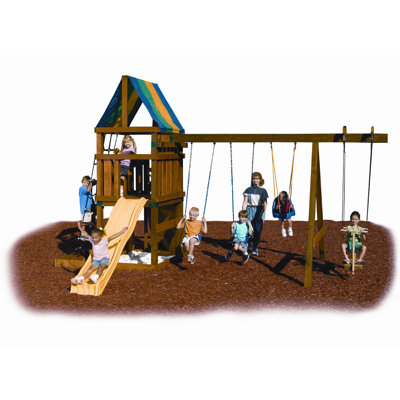

Swing-n-Slide Alpine Custom DIY Play Set Hardware Kit - Project 612

This ready to build swing set kit comes with the flexibility and accessories at a value cost. Great for do it yourself parents this kit comes with assembly plan, 31 brackets, 4" x 4" construction. Optional Cool Wave slide, climbing rocks, swing hangers, child seat, steering wheel, Cargo Net, EZ Ryder Plus, Anchor It playground anchor set, and periscope are available at an additional cost. Lumber and swing set hardware are not included.

Features:

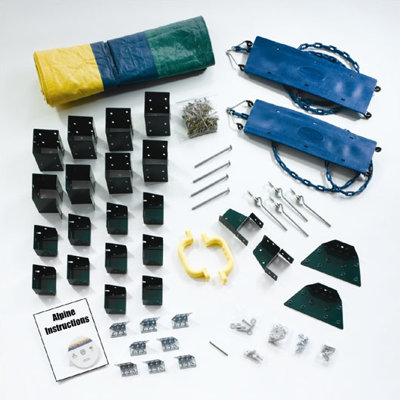

• Comes with assembly plan, 31 brackets, 4" x 4" construction
• Lumber NOT included
• Optional Cool Wave slide mounts to 3'6' - 4'4' deck heights and holds up to 250 lbs
• Optional 4 climb holds for climbing rocks can hold up to 230 lbs
• Optional EZ Ryder Plus swing seat holds up to 150 lbs and requires one 2" x 4' x 4' piece of lumber for mounting
• Optional Cargo Net promotes balance and strength and holds up to 150 lbs
• Optional child swing seat's one piece design makes it is easier to remove your child from the swing
• Child swing seat holds up to 55 lbs
• Optional plastic steering wheel and periscope adds to the fun
• Optional Anchor It playground anchor set is recommended for all swing sets and comes with mounting hardware
• Optional swing hanger helps to mount swing accessories to wooden or metal swing beams
• Comes in pairs that are rated to hold 115 lbs
• All optional items are available at an additional cost
• Other possible accessories include Lil Roadster Swing, Shooting Star Disc Swing, climbing rope and more
• Kit meets all ASTM (American Society of Testing Materials) requirements for safety
• 16 sq. ft. play deck with 4' deck height
• 10 play activities
• Estimated building time: 5-9 hours
• Limited 5 year warranty

Lumber Specifications:

• Five 2" x 4" x 8'
• Three 2" x 4" x 10'
• Eight 5/4" x 6" x 10'
• Three 5/4" x 6" x 12"
• Eight 4" x 4" x 8'
• One 4" x 4" x 10'
• One 4" x 6" x 12' or two 2" x 6" x 12'
• 4 ft climbing rock wall requires two 2" x 4" x 8' and three 5/4" x 6" x 10' pieces of lumber
• Cargo Net requires two 5/4" x 6" x 10'
• Cool Wave Slide requires one 2" x 4" x 2'
• Ladder requires three 2" x 4" x 8'

Nail and Screw Specifications:

• Must be ACQ compatible
• 1# 4D galvanized nails, or 1# 8 x 1 1/4" screws
• 1# 8D galvanized nails, or 1# 8 x 2" screws
• 5# 10D galvanized nails, or 5# 8 x 2 1/2" screws

**Please Note: Swing-N-Slide products are intended for residential use only, and will only be shipped to residential addresses.**
