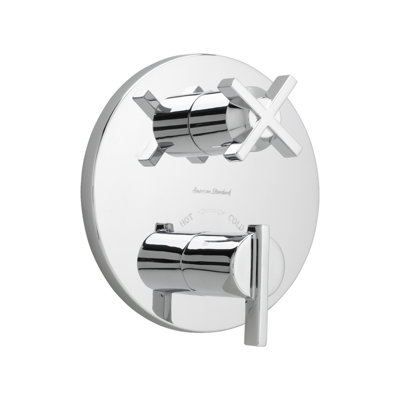

American Standard Berwick Dual Control Shower Faucet Trim Kit

The Berwick Collection from American Standard ties fluid elegance with defined precision to complete this full line of bathroom faucets. With ribbon like style, this collection remains steadily classic, yet is reminiscent of sleek, streaming design. Berwick's contemporary, but subtle flair is sure to bring a renewed look to any bathroom.

Features:

• Brass casting
• Wax thermostatic unit
• Single units contains two handles
• Escutcheon plate is stamped brass
• Ceratherm includes hot limit safety stop
• Maximum temperature is 112 degrees F
• Bottom lever handle sets the desired temperature and the top handle functions as an On/Off volume control
• Temperature is maintained by a wax element moving a shuttle between hot and cold
• Volume is controlled by twin ceramic disc valve cartridges
• Back to back capable: hot and cold can be reversed
• Available with 0.5" or 0.75" NPT inlets and outlets
• Cast brass valve body
• Spring-loaded check valves
• Integrated stop valves
• Valve has a high flow rate ideal for multiple outlet installations

Specifications:

• ASME A112.18.1 certified
• NSF 61/Section 9 and Annex G certified
• CSA B 125 certified
• Overall dimensions: 7.94" H x 7.94" W x 7.063" D
