Swivel Caster Set

Name: Swivel Caster Set
Brand: Service Caster
SKU: SRVJ6398
Price: 489.99 USD
Availability: InStock

ByService Caster

Earn $24.50 in rewards, with 5% back¹, plus more exclusive perks

Get $40 off your qualifying first order of $250+** with the Wayfair Credit Card! **

Apply Now

$489.99 was~~$803.73~~

39% Off

{BOLD_AS_LOW_AS}{BOLD_AFFIRM_REUSE_TITLE_SECTION_1}or 0% APR with Affirm

About This Product

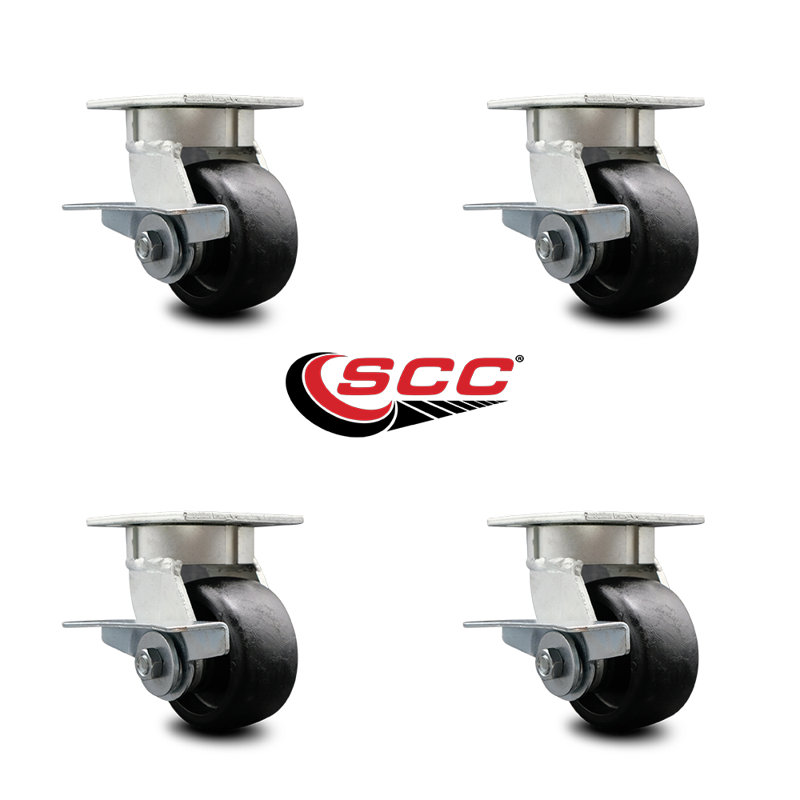

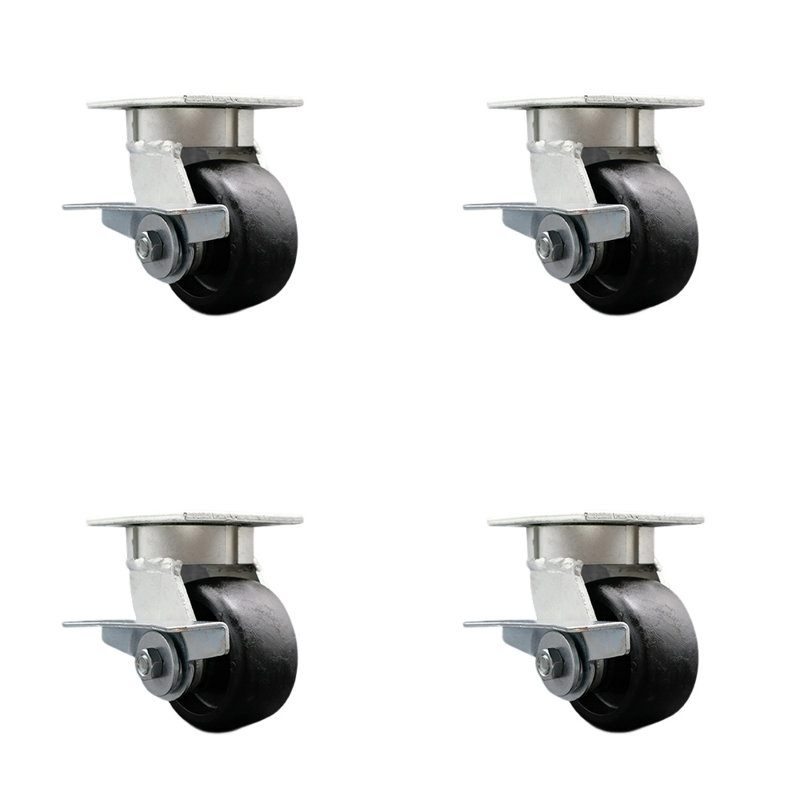

Listing is for a set of four (4) Service Caster Series #KP30 swivel casters with 4" diameter by 2" wide glass filled nylon wheels with side lock brakes capable of supporting a total weight of 4,800 lbs. (1,200 lbs. per caster).

Features

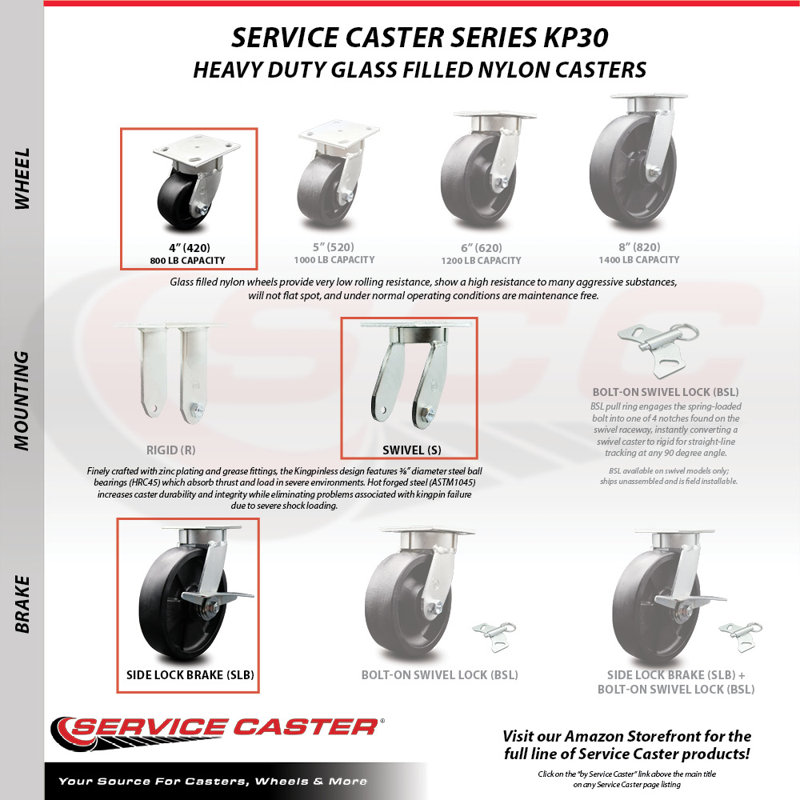

These Service Caster Series #KP30 Glass Filled Nylon casters offer various wheel sizes and mounting heights: 4” Wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8" wheel: 9-1/2" mounting height.
Weight capacity ranges from 1200 lbs on the 4” caster, 1000 lbs on the 5”, 1200 lbs on the 6” and 1250 lbs. on the 8”.
Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on.
Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.
Bolt Size: 3/8" (hardware not included)
