Nylon Caster

Name: Nylon Caster
Brand: Service Caster
SKU: SRVI2446
Price: 349.99 USD
Availability: InStock

ByService Caster

Earn $17.50 in rewards, with 5% back¹, plus more exclusive perks

Get $40 off your qualifying first order of $250+** with the Wayfair Credit Card! **

Apply Now

$349.99 was~~$553.84~~

37% Off

{BOLD_AS_LOW_AS}{BOLD_AFFIRM_REUSE_TITLE_SECTION_1}or 0% APR with Affirm

About This Product

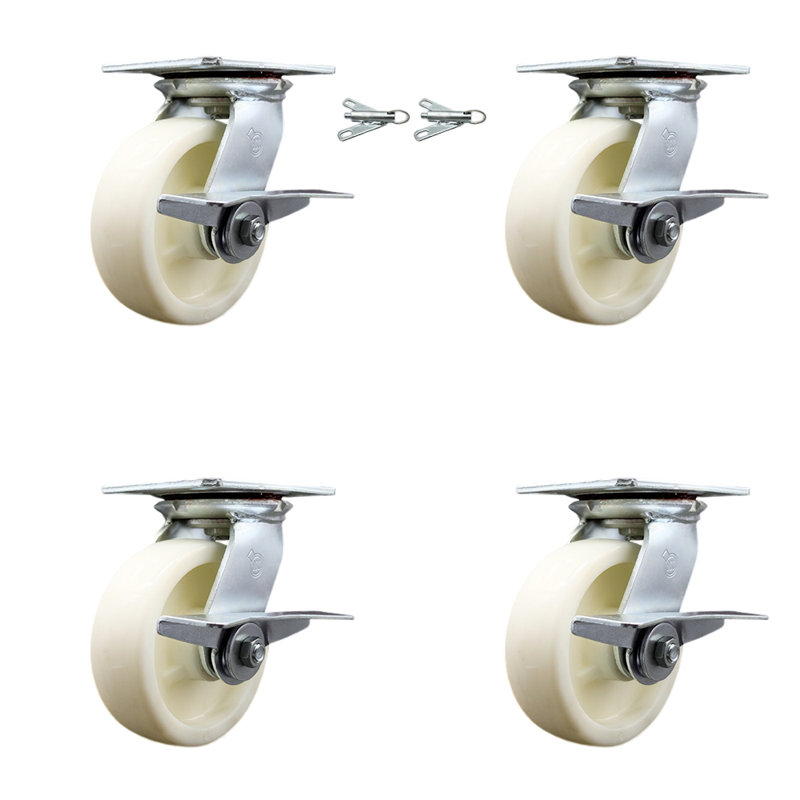

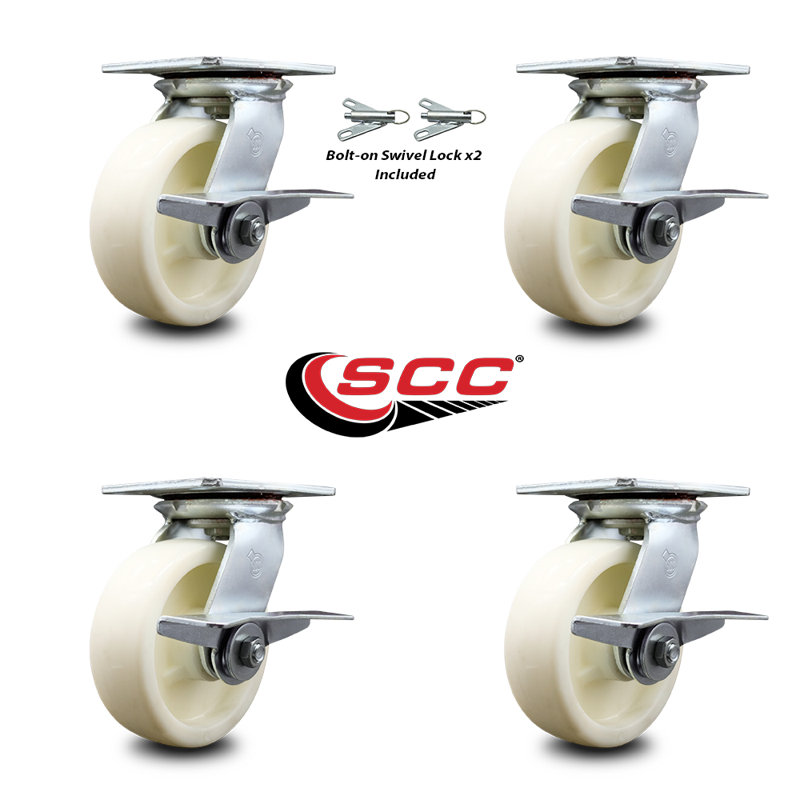

The listing is for a set of four (4) Service Caster Series #35 casters, two (2) swivel casters with side lock brakes & bolt swivel locks, and two (2) swivel casters with side lock brakes, with 6" diameter by 2" wide nylon wheels and maintenance free precision ball wheel bearings. Capable of supporting a total weight of 5,000 lbs. (1,250 lbs./caster).

Features

These Service Caster Series #35 Nylon casters offer various wheel sizes and mounting heights: 4” Wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8" wheel: 9-1/2" mounting height.
Weight capacity ranges from 800 lbs on the 4” caster, 900 lbs on the 5”, 1250 lbs on the 6” and 1250 lbs. on the 8”.
Top plate measures at 4-1/2" x 6-1/4" with a bolt hole pattern of 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4" and can either be bolted or welded on.
Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.
Bolt Size: 1/2" (hardware not included)
