SONNEMAN Suspenders® 17 - Light Geometric Cylinder LED Chandelier

At a Glance

Commercial Warranty Length: 5 Years

Sloped Ceiling Adaptable

Adjustable Length

Hardwired

About This Product

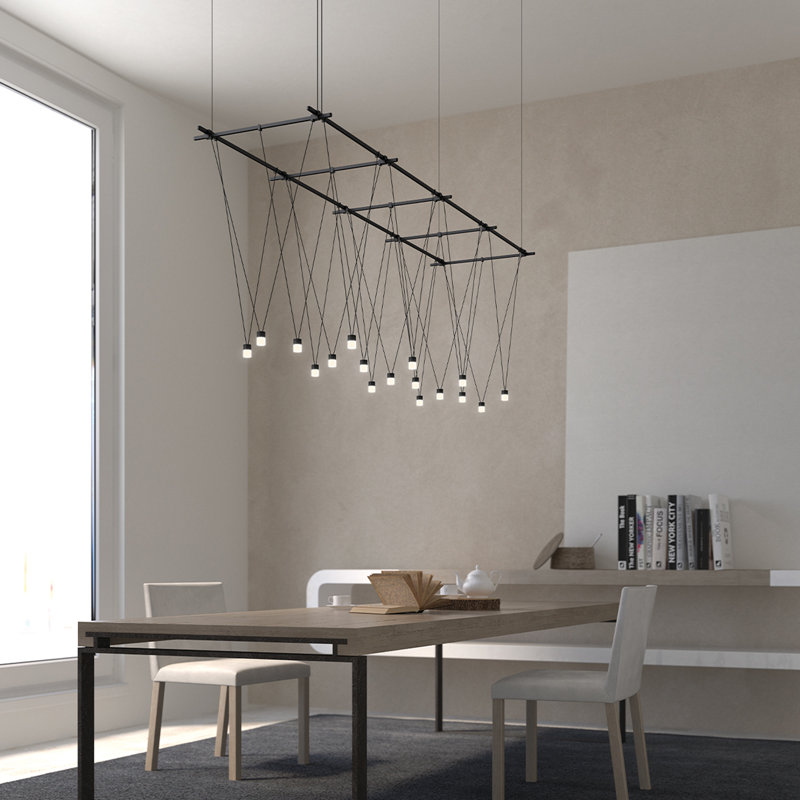

Power Bars form a linear planar Gridscape, which can be constructed in a variety of overall sizes and cellular scales. Any of dozens of Luminaire options can be fixed to or suspended from any position along the intersecting Power Bars. Etched glass V-Line Cylinders are suspended in a crossover pattern along the open planar grid.

Features

Crisply intersecting Power Bars form a Planar Grid in an expansive plane across a broad area.
Grids can be assembled in rectilinear or square configurations in a range of lengths and widths. In addition, multiple Grids can be tiered to each other to bring height and vertical scale to configurations. Suspended across large aresa or in smaller dramtic focal points, Gridscape provides the impact of architecturally significant scale, sculptural interest, and lighting functionality.
Any of dozens of Luminaire options can be fixed to or suspended from any position along the intersecting Power Bars.
17 x 32" V-Line etched cylinder luminaires
5" Dia powerfeed with field cuttable 6' cord hangers
120VAC input with 24V 60W transformer in outlet box
Compatible with sloped ceilings using the separately sold Sloped Ceiling Adapter (Parent SKU HDW.0030). Each support cable requires its own adapter for optimal installation.

Other Dimensions

Body Dimensions: 34'' H X 96'' W X 24'' D
Canopy: 0.5'' H X 5'' W
Shade: 1'' H X 1.5'' W X 1.5'' D
Overall Product Weight: 34 lb.
Overall Maximum Height: 106'' H
Canopy Depth - Front to Back: 5'' D
Fixture Cord Length - End to End: 72'' L

Details

Fixture Design: Geometric
Integrated LED Wattage: 3 Watt
Integrated LED Brightness (Lumens): 2,720lm
Canopy Included: Yes
Light Fixture Shape: Cylinder
Integrated LED Color Temperature: 3,000K
Number of Lights: 17
Adjustable Length: Yes
Number of Light Tiers: 3
Light Direction: Ambient
Fixture Material: Metal
Glass Type: Frosted
Sloped Ceiling Compatible: Yes
Sloped Ceiling Adapter Required: Yes
Integrated LED: Yes
What is Integrated LED?: This indicates that an LED light is built into the fixture. Integrated LED lights are more energy efficient and can last up to 50,000 hours. They cannot be replaced by the customer.
Bulb Included: Yes
Bulb Not Included But Required: No
Dimmable: Yes
Voltage: 120 Volt
Maximum Wattage (Per Bulb): 3 Watt
Power Source: Hardwired
Imported: Yes
Designer: Sonneman Lighting
Wattage: 3 Watt
Dry, Damp or Wet Location Rated: Dry
What is Dry, Damp or Wet Location Rated?: This indicates whether the fixture is safe to use in dry locations, damp locations (moist environments), or wet locations (direct exposure to water).
Pieces Included: Shade, Dimmable Light
Bulb / Light Type: LED, Integrated LED
Color Temperature (Kelvin): 3,000K
Brightness (Lumens): 2,720lm
Shade Material: Etched Glass
Shade Color: Clear
Built-In Features: Canopy, Dimmable
Adjustability Features: Adjustable Length
Compatible With: Sloped Ceiling
Dimmable Light Included: Yes
