Zircon StudSensor i65 OneStep

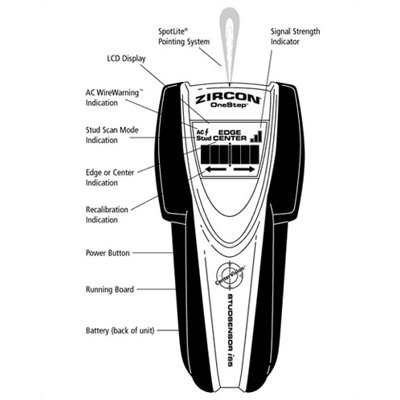

CenterVision technology finds the center of studs in just One Step. StudSensor i65, part of Zircon's OneStep™ family of intelligent wall scanners, finds the center of wood and metal studs and joists up to 1-1/2 inches deep beneath the surface of walls, ceilings, and floors, in one simple step. The easy-to-read LCD display indicates direction, edge, and center of stud, and the signal strength indicator helps distinguish between shallow and deep targets. AC WireWarning continuously detects hot AC wiring up to 3 inches deep for safety. When the StudSensor i65 finds the center of the stud, it beeps and the SpotLite Pointing System shines a beam of light over the center.

Features:

• Uses a patented sensor to pinpoint the center and edges of wood or metal studs behind walls, floors, or ceilings
• LCD screen with easy-to-understand, on-screen graphics and audio signal indicate target
• Exclusive, patented SpotLite Pointing System shines a bright beam of light over target center
• Zircon-exclusive CenterVision technology finds the center of studs in OneStep
• Auto Recalibration continuously recalibrates and points in the direction of the nearest stud
• Exclusive AC WireWarning continuously detects hot AC
• Exclusive SpotLite Pointing System illuminates exact location of stud
• Finds both wood and metal studs
• LCD display indicates direction, edge, and center of studs
• 9V battery included

Applications:

• Installing plasma and LCD mounts
• Installing wall or ceiling mounted projection screens
• Hanging pictures and mirrors
• Installing plant hangers, pot racks, etc.
• Installing cabinets and shelves
• Installing ceiling fans
• Installing outlets, dimmer switches, cable lines, etc.

Specifications:

• Dimensions: 6.21" H x 3.04" W x 1.35" D
• Weight: 6.0 oz
• Battery type: 9-V (included)
• Position accuracy up to 3/4" depth: Typically within 1/8" of center, 3/16" of edge
• Position accuracy up to 1" depth: Typically within 1/4" of center
• Depth: Typically up to 1 1/2"
• AC position accuracy: Typically 90-250V at 50-60 Hz within 6" of hot unshielded wire
• AC depth: In typical drywall with NM wiring, wire can be detected up to 2" deep
• NOTE: Sensing depth and edge detection can vary due to moisture content of materials, wall texture, paint, etc.
• Operating temperature: 40° to 120°F
• Storage temperature: -20° to 150°F
• Humidity: 80% RH (non-condensing)
• Water resistance: Splash and water resistant, not waterproof
